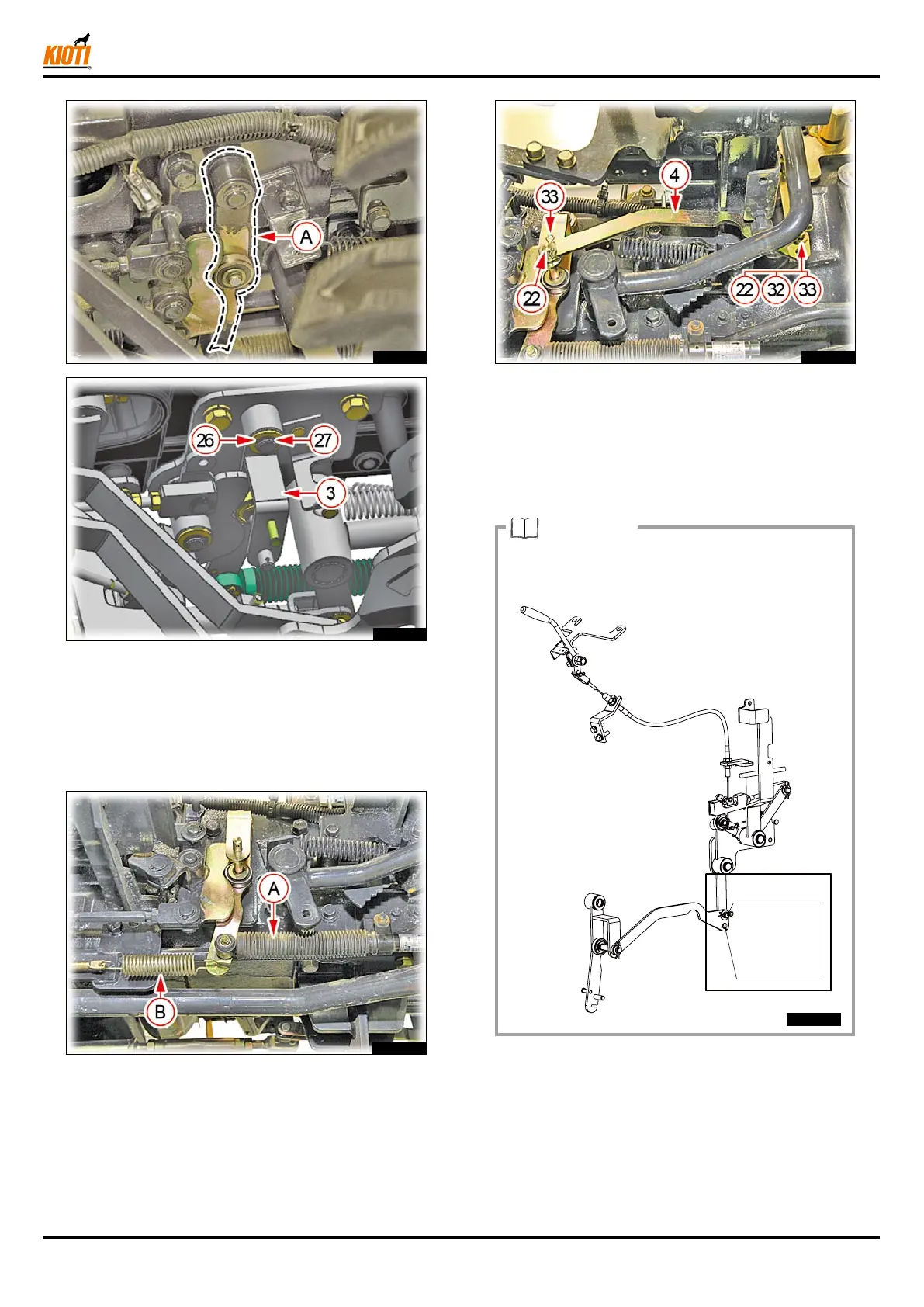

16. Remove the bearing holder bracket (A) from
the vehicle body and install the optional
bearing holder bracket (3) to the body.
Then, install the plain washer (27) and snap
ring (26).
TC2SZ22A
17. Install the damper (A) and brake spring (B)
which were removed in the above step 16.
TC2SZ23A
18. Install the connecting plate (4) to the
bearing holder bracket side with the plain
washer (22) and snap pin (33). Then, t the
head pin (32) to the connecting lever 1 side
and install the plain washer (22) and snap
pin (33).
19. Install in the reverse order of the above step
2 and 3.
※
Connecting plate mounting location by
engines
Tier4 Engine
Tier3 Engine
TC2SZ25A
