M46O613A

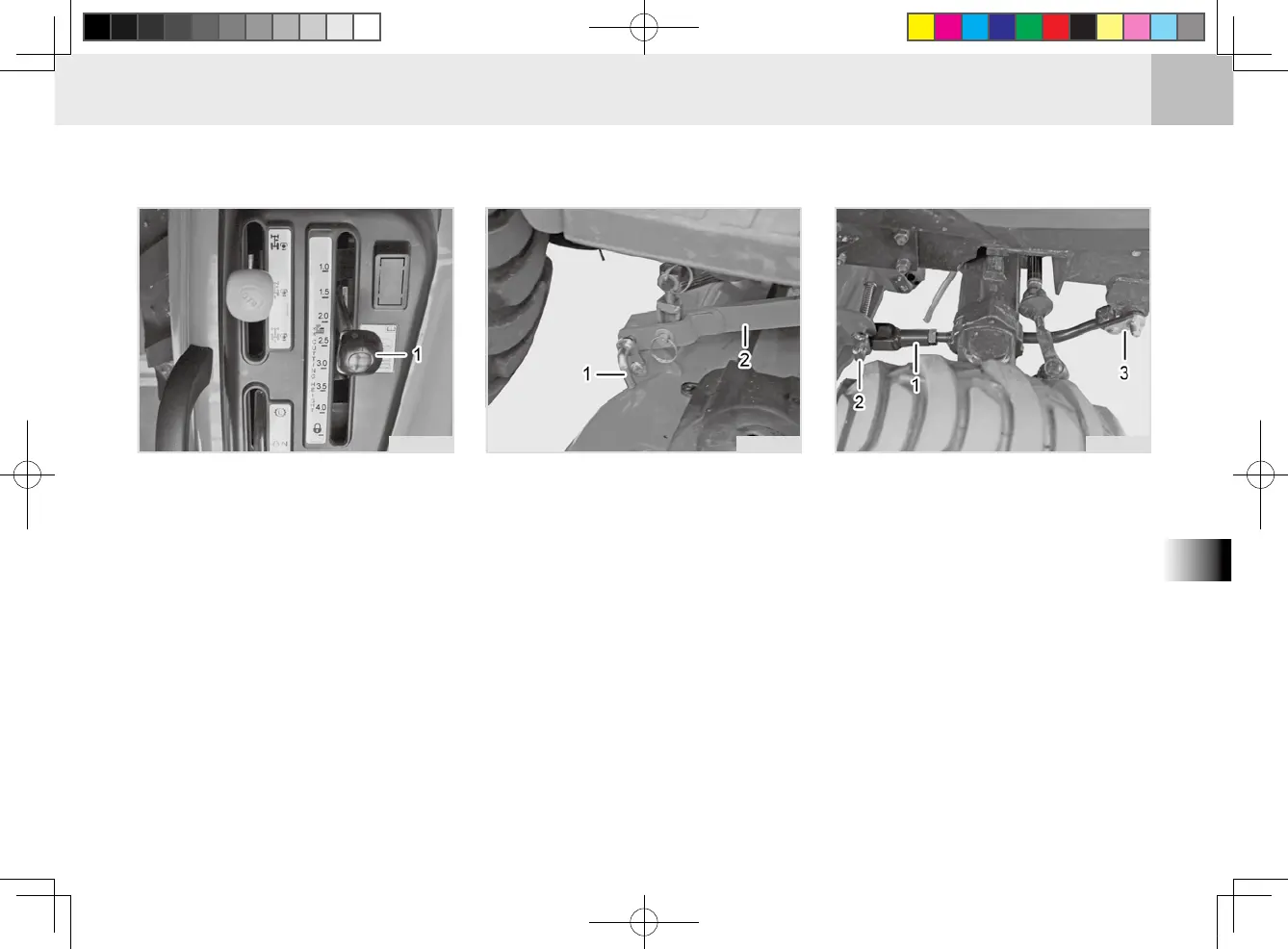

4. Place the mower height adjustment
lever in the A position.
(1) Mower Height Control Lever
5. Connect the rear linkage to the
deck using the spring-loaded han-
dle.
(1) Spring Loaded Handle
(2) Rear Linkage
M46O614A
6. Connect the front linkage to the
mower deck using the spring-load-
ed handle. Connect the opposite
end of the front linkage to the trac-
tor using the spring loaded handle.
(1) Front Linkage
(2) Spring Loaded Handle
(3) Loaded Handle
M46O615A
