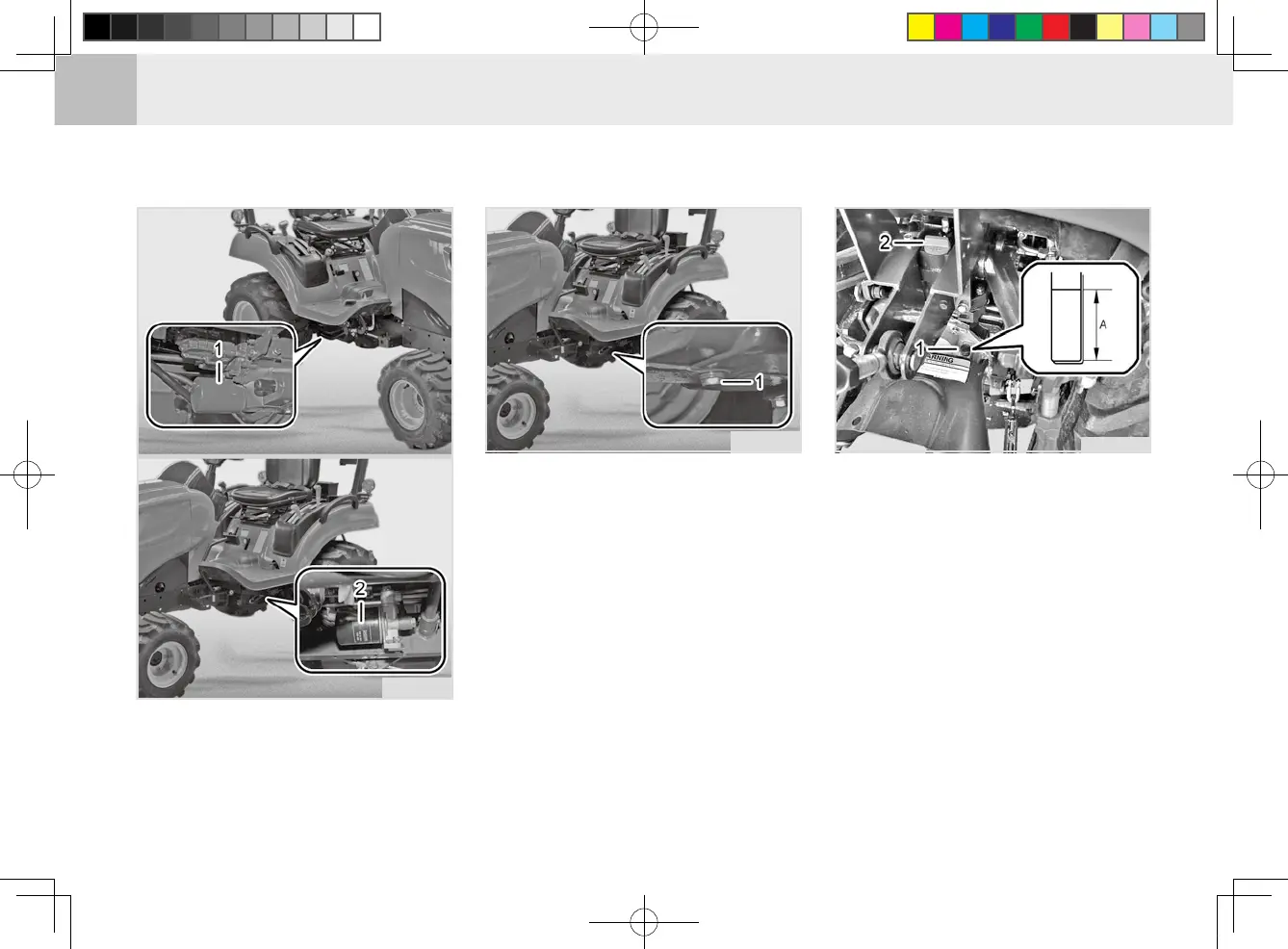

(1) Oil Filter Cartridge
(2) HST Hydraulic Filter Cartridge
M46O713A
1. Park the tractor on a level ground
and start the engine to warm it up.
2. Stop the engine, apply the parking
brake, and remove the drain plug.
3. To drain the used uid, place the oil
pan under the transmission case
and turn the drain plug counterclock-
wise to drain the uid completely.
If the uid does not ow out freely,
unscrew the plug on the side of the
hydraulic cylinder on the left of the
top link bracket to facilitate drain-
age.
4. Unscrew the uid lter from the rear
right section on the tractor using a
lter wrench.
(1) Drain Plug
M46O714A
5. Apply a thin lm of clean oil onto the
O-ring of a new lter.
6. Tighten the lter rmly until it con-
tacts the mounting surface. Tighten
the lter a half turn further by hand.
7. Run the engine for a few minutes
and then stop it after installing a
new lter.
8. Check the uid level and add uid
to the specied level.
(1) Gauge (2) Oil Filler Plug
(A) Oil level is acceptable within range
tb3O718A
