Kioti DK40SE - 1. SPECIFICATIONS; 1.1 STEERING CYLINDER; 1.2 STEERING UNIT; 1.3 TIGHTENING TORQUE FOR MAIN COMPONENTS

9
-2
DT66-W00 Jan. 2007
DK35/40/45/50SE
SAFETY FIRSTGENERALENGINECLUTCHTRANSMISSIONHSTREAR AXLEBRAKEFRONT AXLEHYDRAULICELECTRIC STEERING

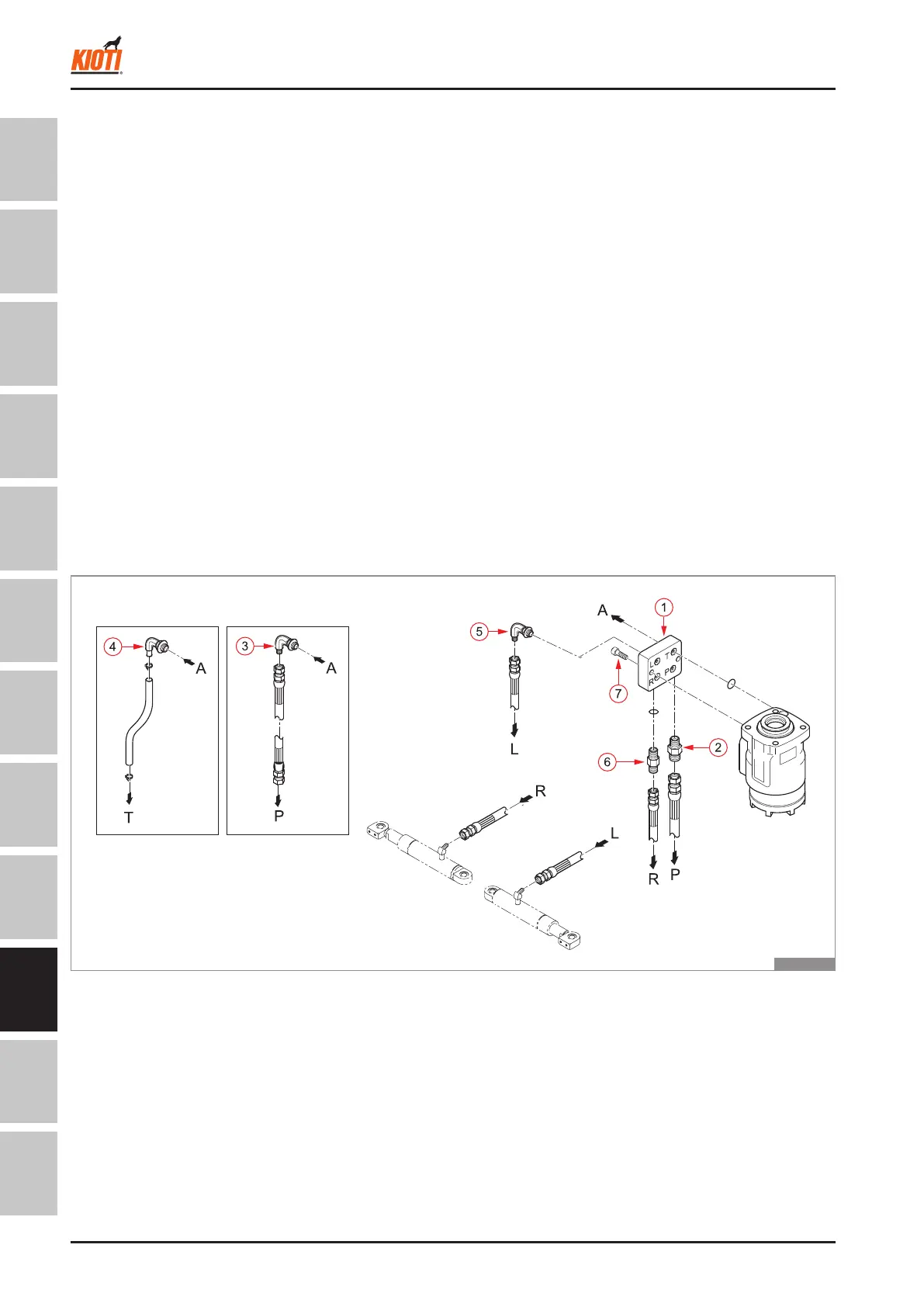

Connectors (2, 3, 4, 5, 6) that are connected to each port (P, T, L, R) of
hydraulic block (1)..................49 Nm, 5 kgf-m, 36.1 lb-ft
Hydraulic hoses (RH, LH) ......24.5 Nm, 2.5 kgf-m, 18 lb-ft
Socket head bolt (7)...............44.1 Nm, 4.5 kgf-m, 32.5 lb-ft
Hydraulic hoses (P) ...............49 Nm, 5 kgf-m, 36.1 lb-ft
Steering wheel nut .................48 ~ 55.9 Nm, 4.9 ~ 5.7 kgf-m, 35.4 ~ 41.2 lb-ft
1.
2.
3.
4.
5.
1. SPECIFICATIONS
1.1 STEERING CYLINDER
기계식 HST식
T46W901A
Type .......................................Two cylinders with one rod single action (ram cylinder)
Cylinder O.D. .........................35 HP = 60 mm (2.3 in.), 40 ~ 50 HP = 65 mm (2.5 in.)
Cylinder I.D. ...........................35 HP = 55 mm (2.1 in.), 40 ~ 50 HP = 60 mm (2.3 in.)
Rod O.D. ................................35 HP = 40 mm (1.5 in.), 40 ~ 50 HP = 45 mm (1.7 in.)
Cylinder stroke .......................198.5 mm (7.8 in.)
Max. steering angle ...............55 ± 1.0°
1.2 STEERING UNIT
Type .......................................Non-load reaction type
Steering output ow rate ........35 HP = 69 cc/rev, 40 ~ 50 HP = 96 cc/rev
Relief valve pressure .............140 kgf/
cm
2
(1,988 PSI)
Rated input ow rate ..............23ℓ/min (9 gpm)
Pump capacity (2nd pump) ....10 cc/rev.
1.3 TIGHTENING TORQUE FOR MAIN COMPONENTS
1.
2.
3.
4.
5.
6.
1.
2.
3.
4.
5.
Mechanical HST
STEERING SYSTEM - SPECIFICATIONS
