2.3 STRUCTURE
Structure and major specications for steering cylinder
The steering system for this tractor has two single act-
ing cylinders. It provides the same steering rpm (for left
and right turn) and the operational feeling of the steer-
ing wheel. The outer force for cylinder rod compression
is supplied by the tie rod since this is the single action
type.
Type Tube O.D. (C) Tube I.D. (B) Rod O.D (A) Stroke (D)
35HP
φ
60 (2.36 in.)
φ
55 (2.16 in.)
φ
40 (1.57 in.) 198.5 mm (7.81 in.)
40 ~ 50HP
φ
65 (2.56 in.)
φ
60 (2.36 in.)
φ
45 (1.77 in.) 198.5 mm (7.81 in.)
MAJOR SPECIFICATIONS
▶

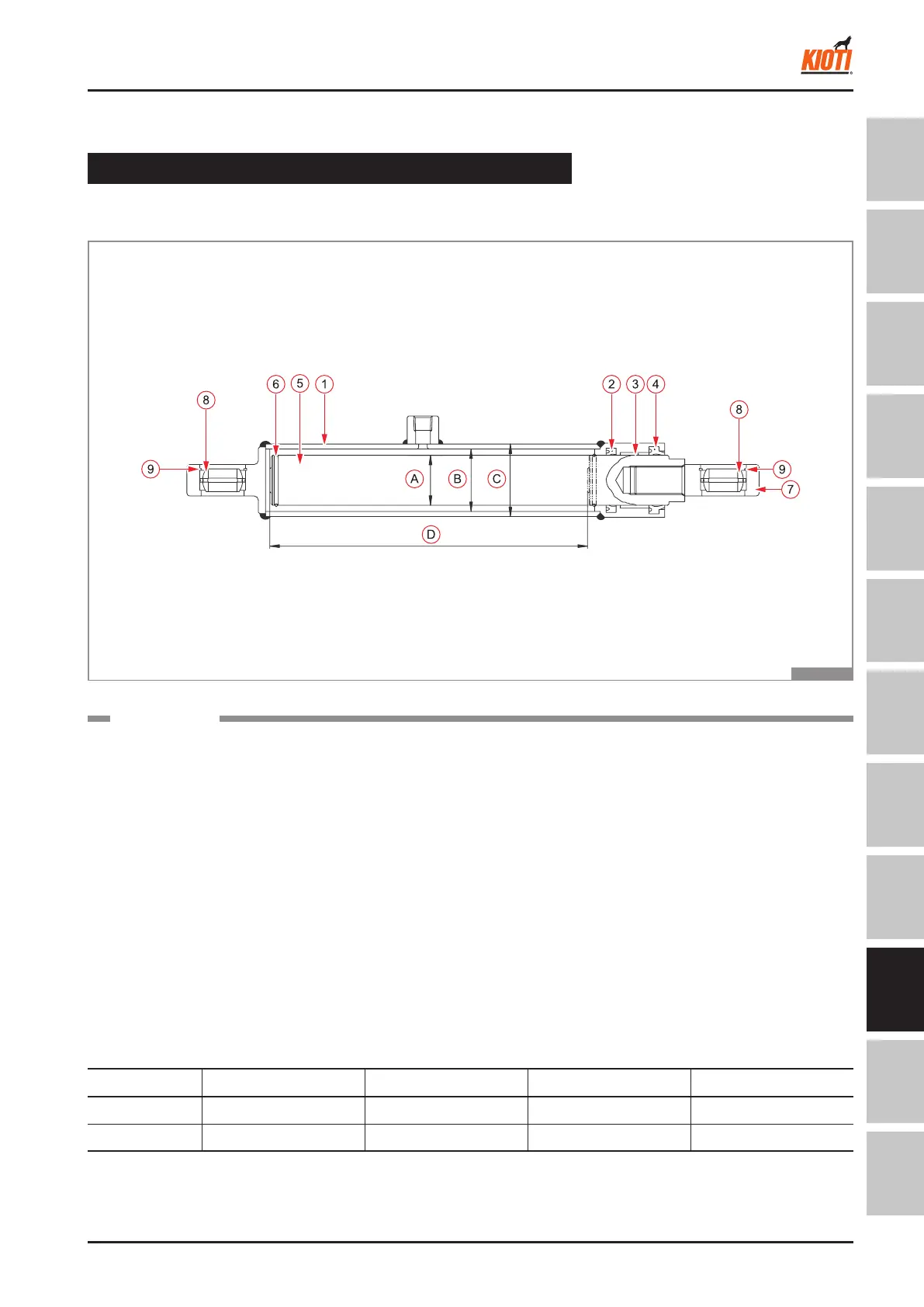

STRUCTURE
▶
T46W911A
(1) Tube
(2) Packing
(3) Bush
(4) Dust seal
(5) Rod
(6) Ring
(7) Housing
(8) Bearing
(9) Snap ring
(A) Rod O.D
(B) Tube I.D
(C) Tube O.D
(D) Stroke
COMPONENTS
