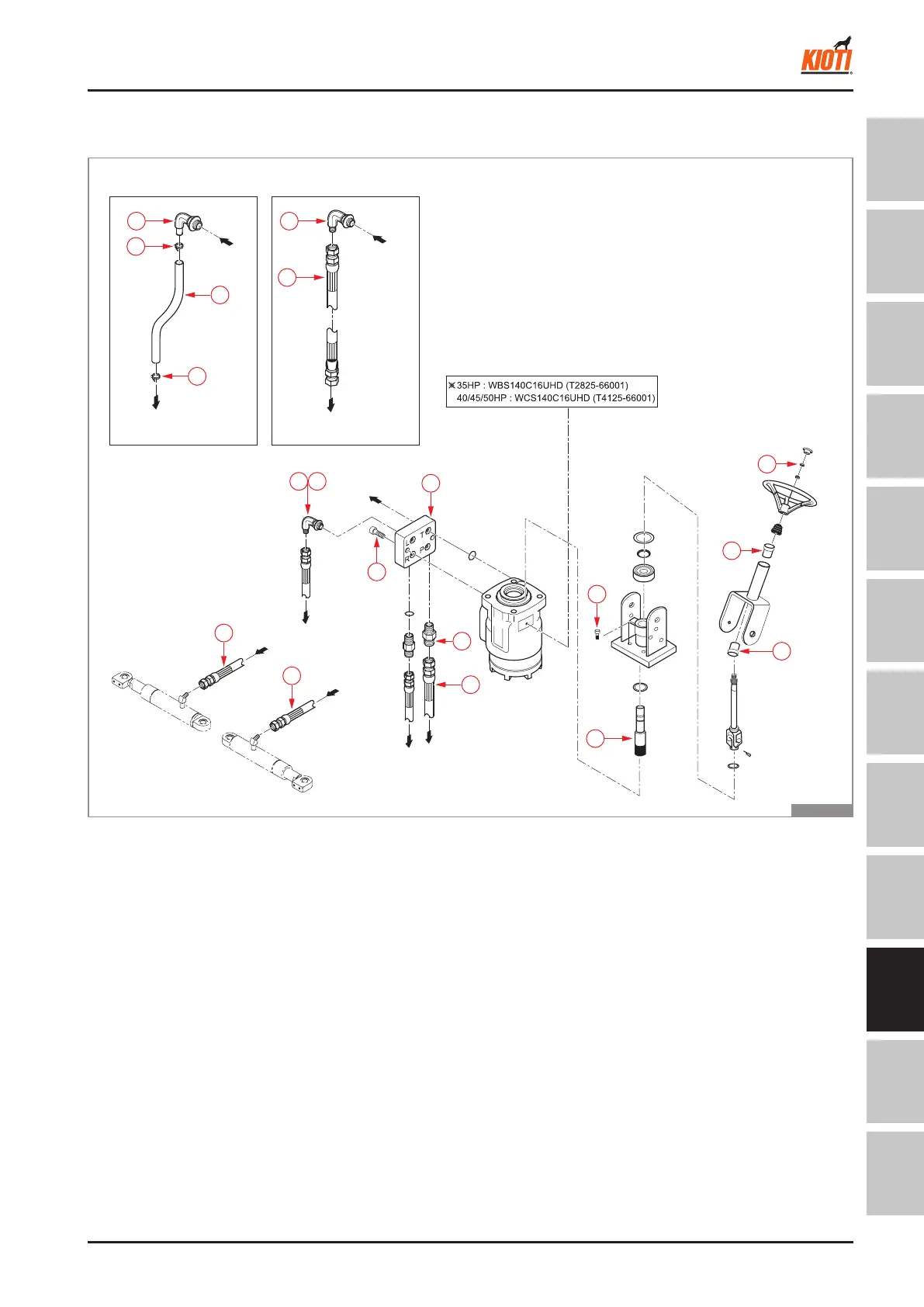

6.3 TIGHTENING TORQUE OF STEERING HOSE AND INSTALLATION OF STEERING UNIT
기계식 HST식
T
P
A
L
R
L
R
P
A
A
4
15
3
13
17
16
7
16
14
15
12
2
10
6
1
11
8
9
5
T46W958A
Connectors (2, 3, 4, 5, 6) at each port (P, T, L, R) of
hydraulic block (1) ................. 49 Nm
5 kgf-m
36.1 lb-ft
Both end nuts (8, 9) for hydraulic
hoses (RH, LH) ..................... 24.5 Nm
2.5 kgf-m
18 lb-ft
Socket head bolt (10) and
bolt (11) .................................. 44.1 Nm
4.5 kgf-m
32.5 lb-ft
Hydraulic hoses (P)
(12, 13) .................................. 49 Nm
5 kgf-m
36.1 lb-ft
1.
2.
3.
4.
Clamp (15) tightening torque of return hose
(14, for mechanical type) ....... 4.9 Nm
0.5 kgf-m
3.6 lb-ft
Apply grease in the cushion rubber (16) when in-
stalling it.
When installing the steering shaft (17) to the steer-
ing unit, apply sufcient amount of grease on the
steering shaft spline.
Steering wheel nut (7) ........... 48 ~ 55.9 Nm
4.9 ~ 5.7 kgf-m
35.4 ~ 41.2 lb-ft
5.
6.
7.
8.
Mechanical HST
STEERING SYSTEM - SERvICING
