DT66-W00 Jan. 2007
DK35/40/45/50SE
SAFETY FIRSTGENERALENGINECLUTCHTRANSMISSIONHSTREAR AXLEBRAKEFRONT AXLEHYDRAULICELECTRIC STEERING

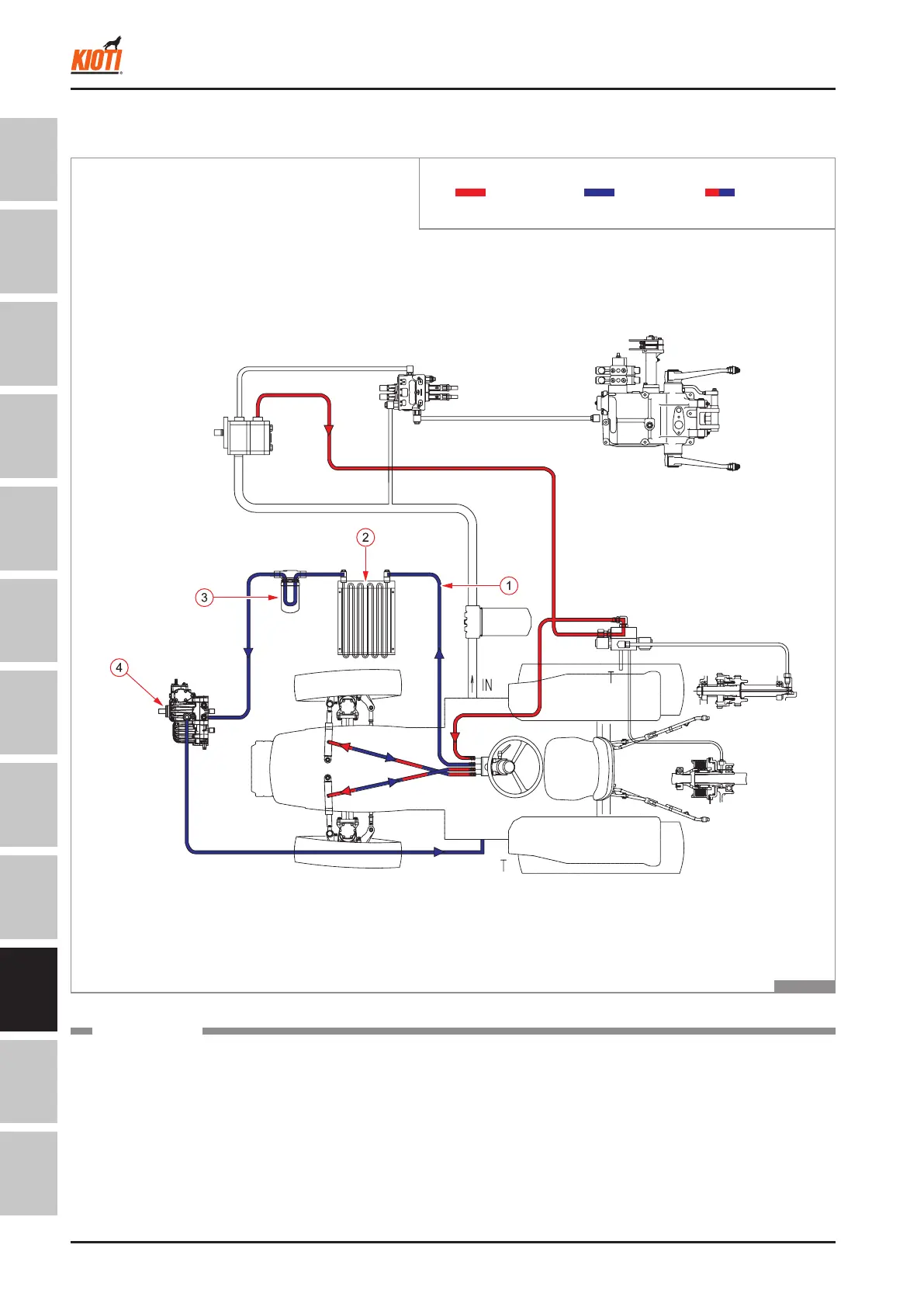

For the HST type, the route that the oil is supplied to
the steering unit is the same. However, the return line (1)
supplies oil to the HST (4) through the HST oil cooler
and the HST lter (3) for charging of the HST.
HST
▶
T46W903A
(1) Oil cooler pipe (2) Oil cooler (3) HST lter (4) HST
COMPONENTS
Pressure
Return
Operating
hydraulic
pressure
STEERING SYSTEM - OPERATING PRINCIPLE
