MAINTENANCE 6-23

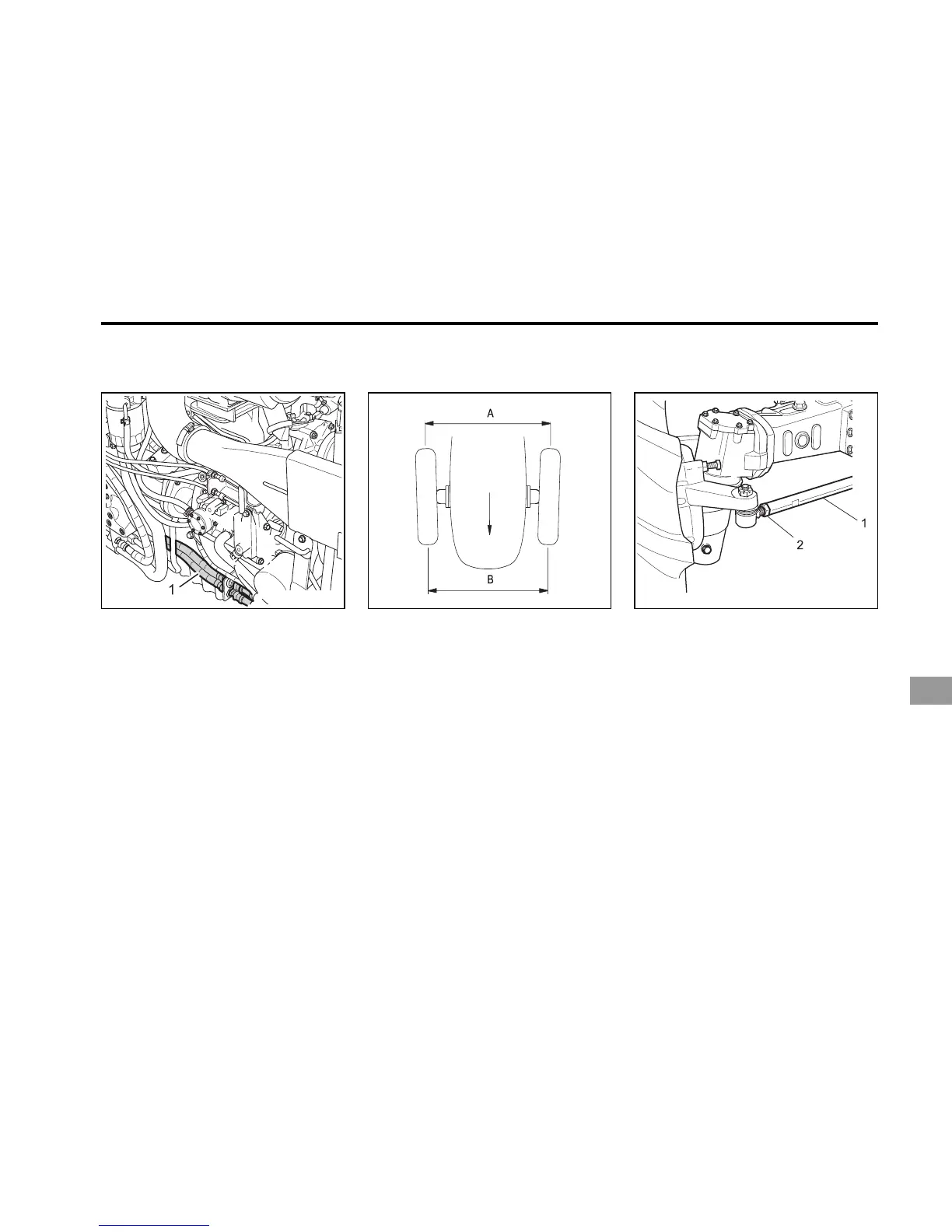

A12O632A
(1) Power Steering Oil Line
1. Check to see that all hydraulic lines
and hose clamps are tight and
undamaged.
2. If damage is found you should replace
the hose or clamp at once.
POWER STEERING LINE
A12O633A
(A) Wheel - to - wheel distance at rear
(B) Wheel - to - wheel distance at front
1.Park tractor on a flat place
2.Turn steering wheel so front wheels
are in the straight ahead position.
3. Lower the implement,lock the parking
brake and stop the engine.
4.Measure distance between tire beads
(center) at front of tire,hub height
5. Measure distance between tire beads
at the rear of tire,hub height.
6.Front distance should be 2~8mm less
than rear distance. If not,adjust tie rod
length
ADJUSTING TOE-IN
ADJUSTING PROCEDURE
1. Loosen the lock nut and turn the turn-
buckle to adjust the rod length until the
proper toe-in measurement is obtained.
2. Retighten the lock nut.
A12O634A
(1) Tie rod
(2) Lock Nut
