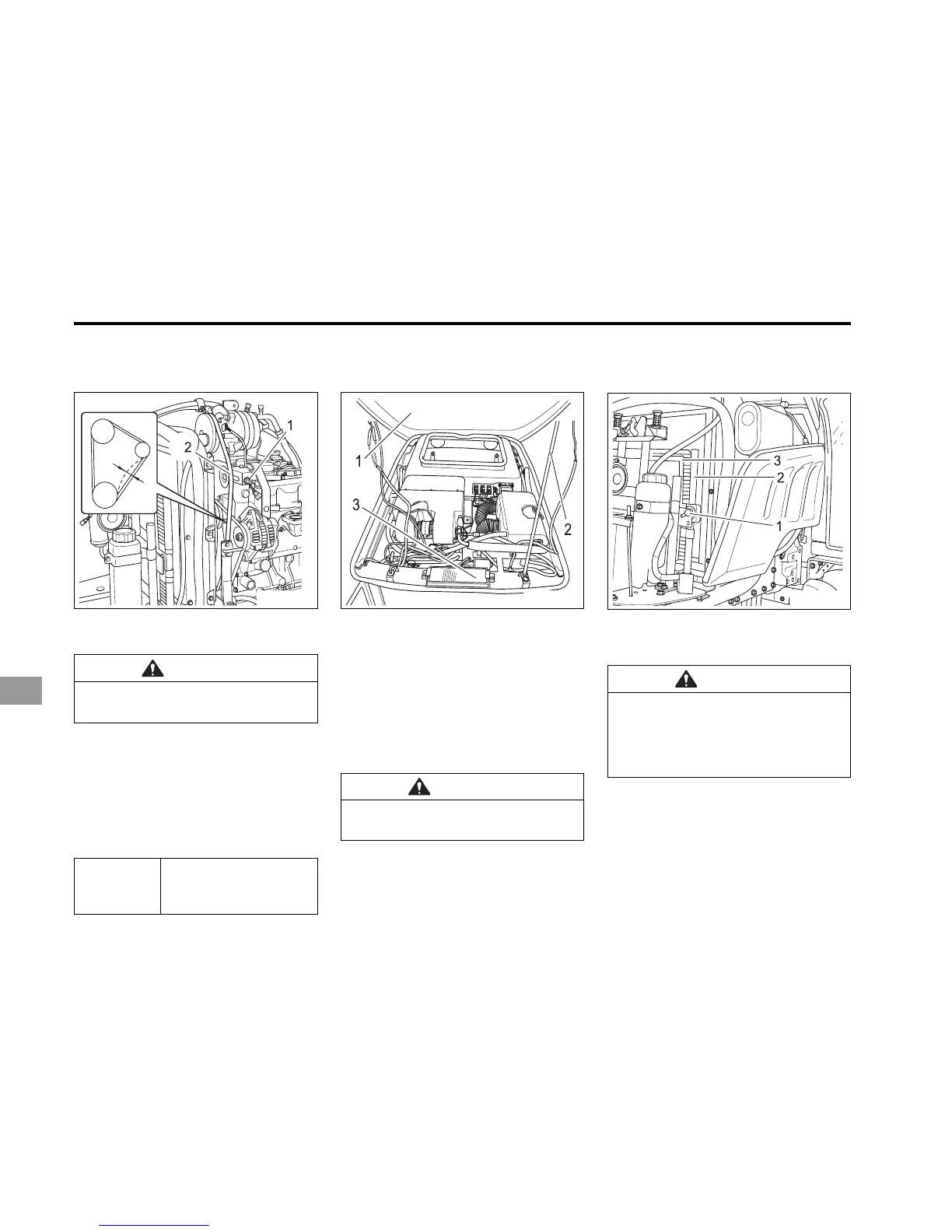

6-24 DK451/501/551
1. Stop the engine and remove the
key.
2. Press the belt between pulleys
with 10 kgs or so.
3. Adjust belt’s tension.
4. Replace the damaged belt.
A12O635A
(1) Adjusting Bolt
(2) Air-conditioner Belt
CAUTION
Stop the engine before checking air con-
ditioner belt.
Tension of
air condi-
tioner belt
When press the middle
point of the belt:
10~12mm (0.39~0.47 in.)
1. Loosen the bolt and support with
pole opening roof.
2. Loosen the nut and remove
bracket, then separate the ele-
ment and filter.
(1) Roof (2) Roof Support
(3) Element / filter
ADJUSTING AIR CONDITIONER
BELT TENSION (CABIN MODEL)
REPLACING AIR FILTER (CABIN
MODEL)
CAUTION
• Clean with air blow inside the filter.
• Do not use water, petrol, thinner.
A12O636A
(1) Butterfly Bolt (3) Net
(2) Condenser
CLEANING AIR CONDITIONER
COOLER (CABIN MODEL)
A12O637A
CAUTION
• Make sure to stop engine when
checking.
If cooler fan is blocked by dirt, clean
with a soft brush or cloth using tab
water.
