DESCRIPTION OF OPERATING SYSTEM 4-7
A12O406A A12O407A
Inserting the key and turning it one click
to the right, closes the electrical circuit
and lights up the engine oil pressure lamp
(RED). Depress the clutch pedal to dis-
engage the clutch. Next, turning the key
right activates the glow plug, preceding
to preheat the combustion chamber. Af-
ter the glow plug lamp has turned red
and that the engine has been preheated
completely, turn the key switch right and
the cell starter will start to rotate and the
engine should start. Release the key
switch and it will return to the ON position.

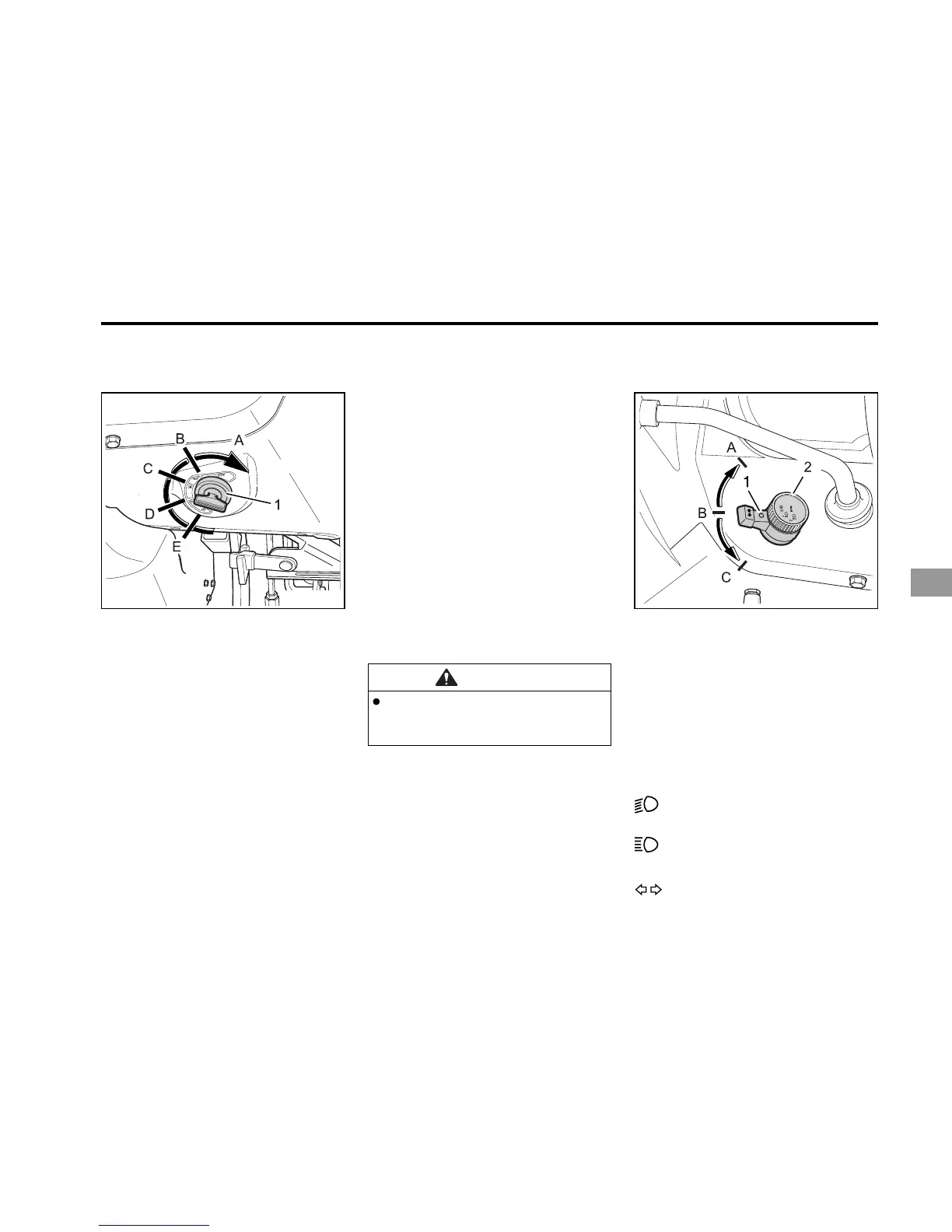

KEY SWITCH
(1) Key Switch (A) Start (B) Heat
(C) On (D) Acc (E) Off
TURN SIGNAL/ HEAD LIGHT SWITCH
(1) Turn Signal Light Switch
(2) Head Light Switch
(A) Right (B) N (C) Left
Turning the light switch one click to C.W.
illuminates the low beam headlights and
taillights.
Next, turning it one more click illuminates
the high beam headlights.
OFF
A key position for stopping the engine.
ACC
A key position for operating accessory
function.
ON
A key position at which the engine is
running.
Heat
A key position for preheating the inside
of the combustion chamber.
Start
A key position for operating the motor.
OFF
Headlight is turned OFF
Low beam headlight is turned ON
Upper beam headlight is turned ON
Direction indication lamp is turned ON
CAUTION
Because of the safety device, the
engine may not be started except
when the clutch is depressed.
