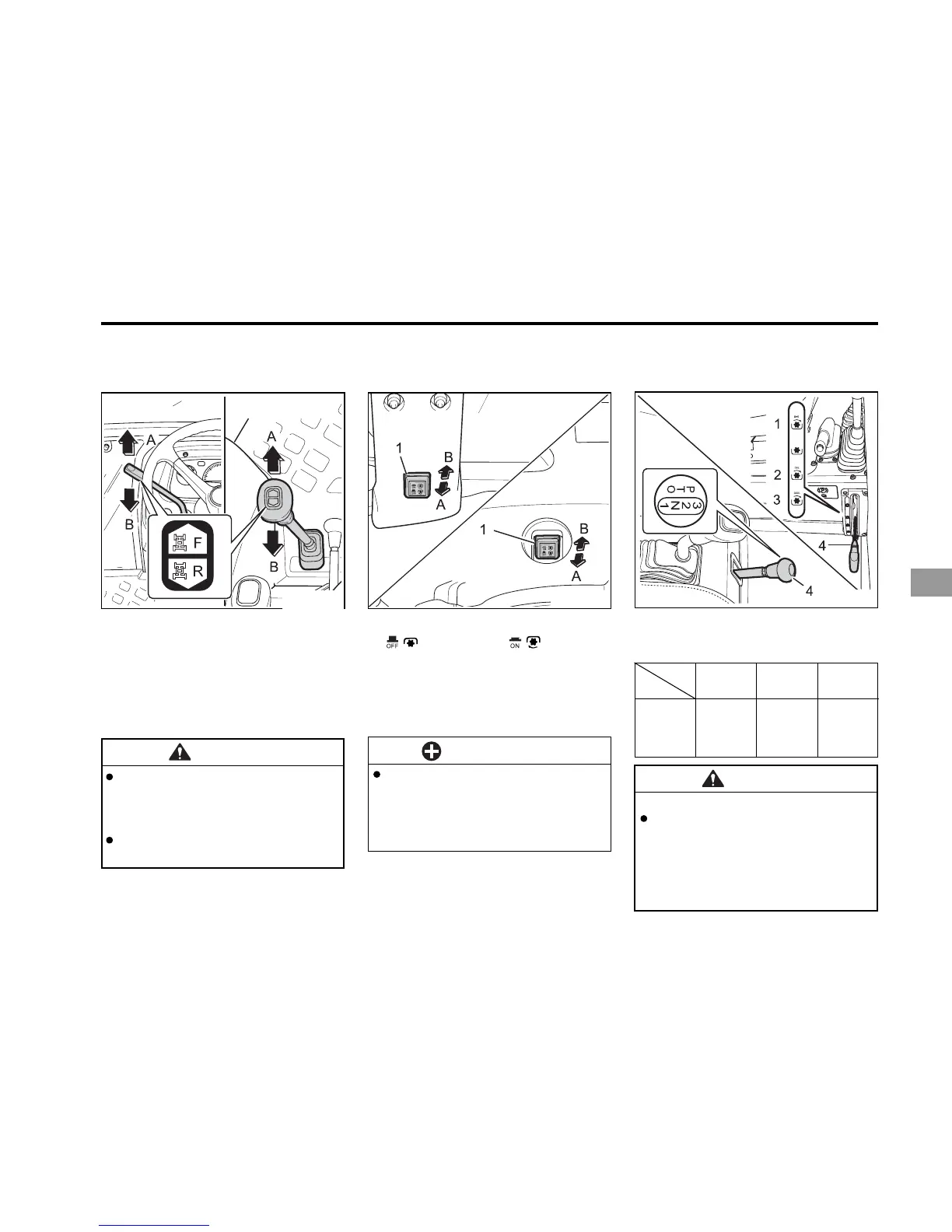

DESCRIPTION OF OPERATING SYSTEM 4-19
SHUTTLE SHIFT LEVER
(1) Shuttle Shift Lever
(A) Forward (B) reverse
A12O427A
(1) 540rpm (3) 1000rpm
(2) 750rpm (4) PTO Change Lever
Shift
Model
A12O429B
2nd1st 3rd
540 750 1000
DK451
DK501
DK551
PTO CHANGE LEVER
CAUTION
To avoid personal injury:
Disengage PTO, stop engine, and
allow all rotating components to
come to a complete stop before
connecting, disconnecting, ad-
justing, or cleaning any PTO dri-
ven equipment.
The tractor’s driven forward or in
reverse, without the steps of main or
secondary shift by pushing it forward or
pulling it backward.
CAUTION
The shuttle shift lever maybe be
shifted while the tractor is mov-
ing slowly and the clutch is
depressed.
Sudden gear shift may cause
transmission damage.
PTO SWITCH(ON/OFF)
The PTO switch must be placed to the
“OFF” positions before starting the
engine. Otherwise, the engine will not
start.
IMPORTANT
Always turn the starter switch key
to the “OFF” position. Damage
may occur to the electrical sys-
tem if the engine is running with
the starter switch off.
(1) PTO Switch
(A)
- OFF (B) - ON
A12O428A
DK501/551DK451
EU
AU
