4-24 DK451/501/551

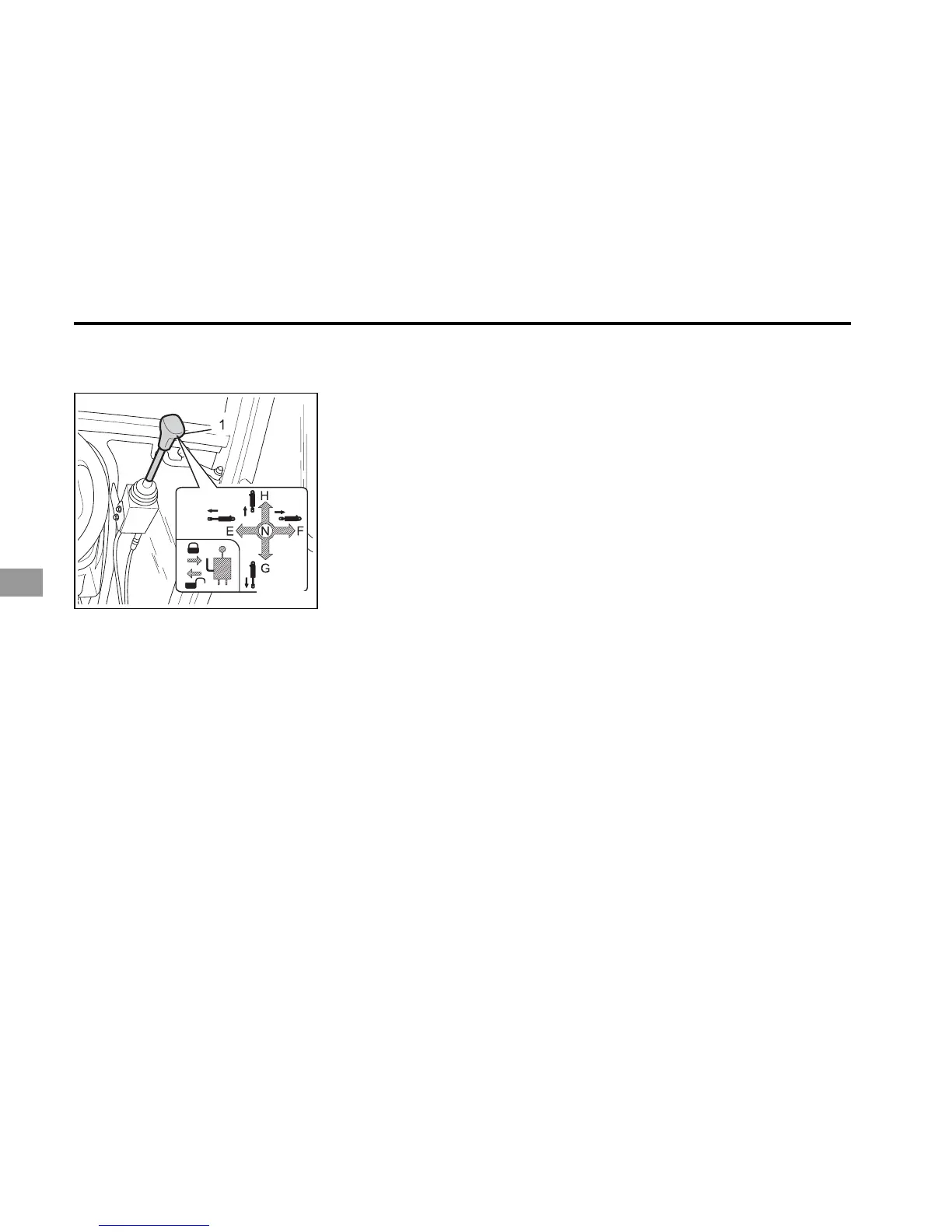

JOY STICK LEVER(OPTION)
A12O442A
Joystick valve/lever is installed by stan-
dard to be used as outer hydraulic oil
pressure valve for only loader. Joystick
lever operates along the way in form of
cross. When joystick moves toward front
& rear side in a straight line, hydraulic oil
pressure applies into H & G port and it
moves toward right & left side in a straight
line, hydraulic oil pressure applies into E
& F port. Also when joystick moves
diagonally, hydraulic oil pressure applies
into the related port. Hydraulic oil pres-
sure applies into H & F port when the
joystick moves as the up figure shown.
