POSITION CONTROL
The position of an attachment can be
freely controlled within the range of po-
sition control, using the lever. An attach-
ment will completely lower when the le-
ver is in the floating range.

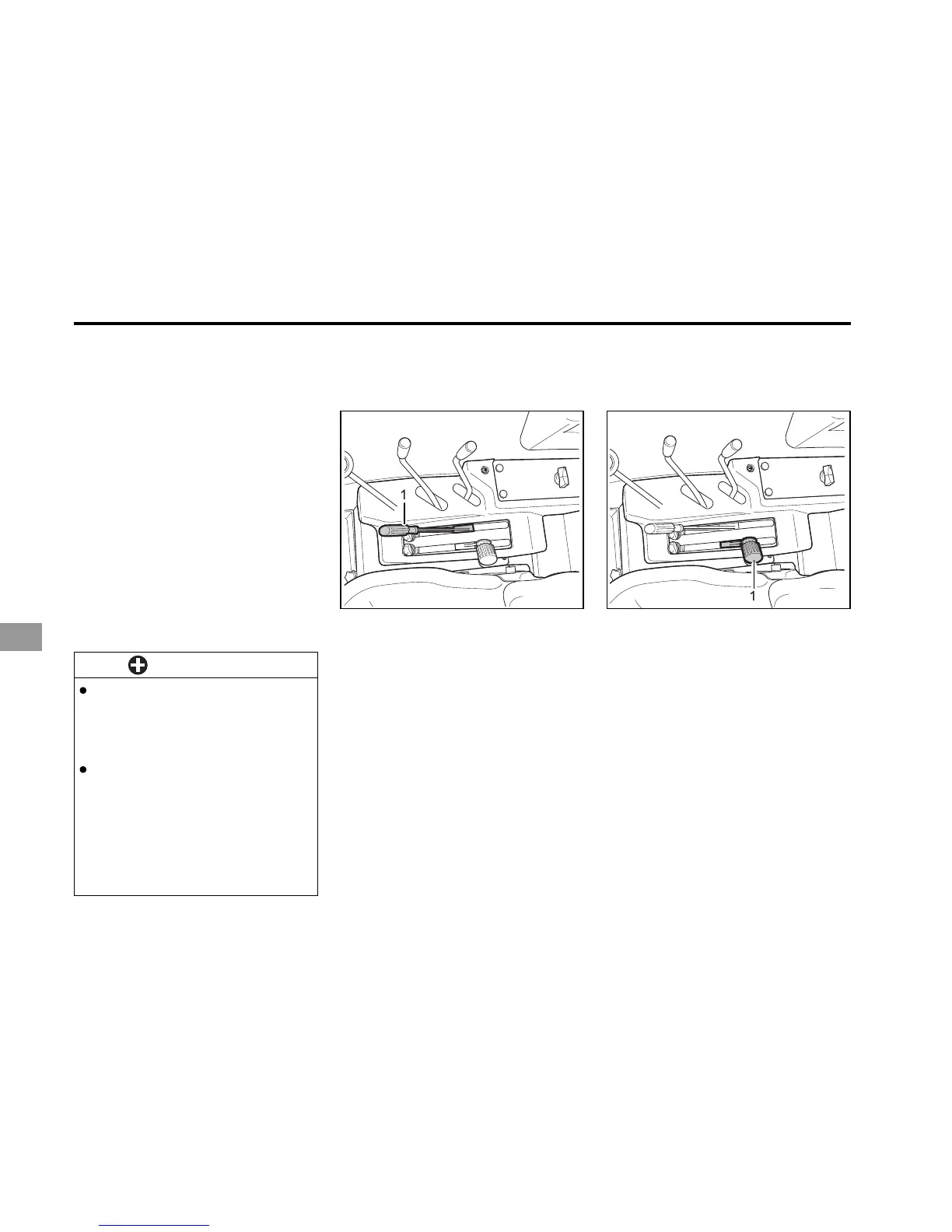

A12O520A
(1) Position Control Lever
DRAFT CONTROL
1. The draft control is used to do draft work
with an attachment, like a plow, attached
to the 3-point linkage.
2. In the floating range. the attachment will
completely lower.
3. In the draft control range, the hydraulic
unit will have a force to lift the attachment.
In this stage, it is possible to do stable
work without slipping.
4. If the draft force is higher than the resis-
tance of the attachment, the attachment
will be lifted up. If it is lower than the re-
sistance of the attachment, the attach-
ment will be restored to its original state.
5. By placing the lever closer to shallow, the
attachment can be lifted up by smaller draft
resistance.
A12O521A
(1) Draft contol Lever
[3-POINT HITCH CONTROL SYSTEM]
REMOTE HYDRAULIC CONTROL SYS-
TEM
IMPORTANT
Do not operate until the engine is
warmed up. if operation is at-
tempted when the engine is still
cold, the hydraulic system may
be damaged.
If noises are heard when the
implement is lifting after the hy-
draulic control lever has been ac-
tivated, the hydraulic mechanism
is not adjusted properly. Unless
corrected, the unit will be
damaged. Contact your KIOTI
Dealer for adjustment.
HYDRAULIC UNIT
The standard tractor has the hydraulic
control systems as below. Therefore,
use the most appropriate system for the
implement you are using.
3-POINT HITCH CONTROL SYSTEM
1. Position Control
2. Draft Control
3. Mixed Control
