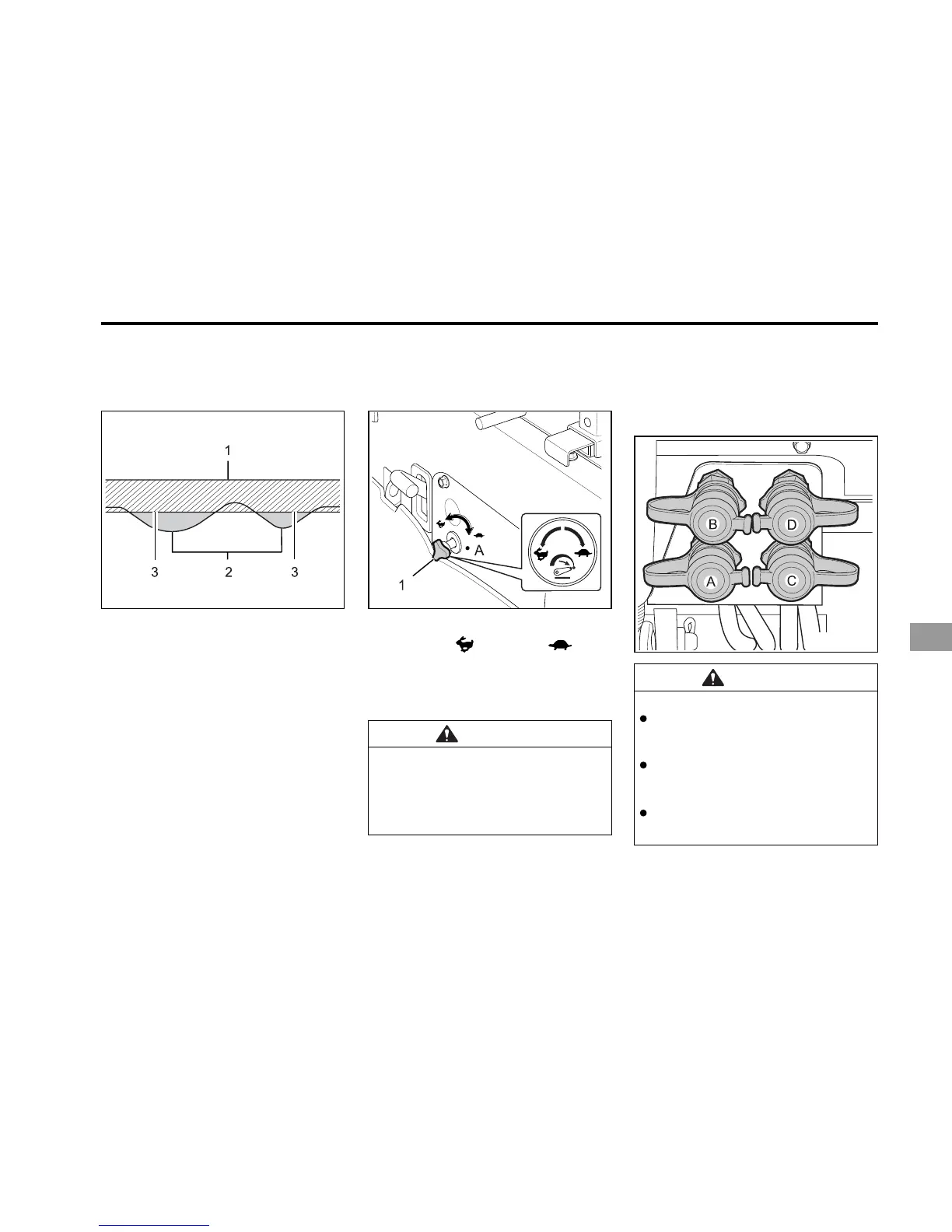

OPERATING 5-19
MIXED CONTROL
In draft control, when draft decreases,
the implement automatically lowers to in-
crease draft. However, the implement
sometimes lowers too much. To limit the
degree, the implement can be lowered,
set the position control lever at the low-
est working depth desire for the
implement. Lower the draft control lever
to the point where the implement is at the
desired depth.
This stops the implement from going too
deep and causing loss of traction and
ground speed.
A12O522A
(1) Ground Surface (2) Soft Soil
(3) Implement Penetration Limit
A12O523A
The lowering speed of the 3-pint hitch
can be controlled by adjusting the 3-point
lowering speed knob.
CAUTION
To avoid personal injury:
Fast lowering speed may cause
damage or injury. Lowering speed
of implement should be adjusted
to two or more seconds.
(1) 3-point hitch lowering speed knob
(A) Lock (
) Fast ( ) Slow
3-POINT HITCH LOWERING SPEED
A12O524A
WARNING
To avoid personal injury:
When not using the P.T.O axle,
please cover it after applying
grease on it.
When connecting or disconnect-
ing the coupler, take away pres-
sure after stopping the engine.
Do not use hands to check oil
leakage.
[REMOTE HYDRAULIC CONTROL
SYSTEM (IF EQUIPPED)]
DEALING OF SINGLE-DOUBLE ACTING
VALVE
