D21O449A

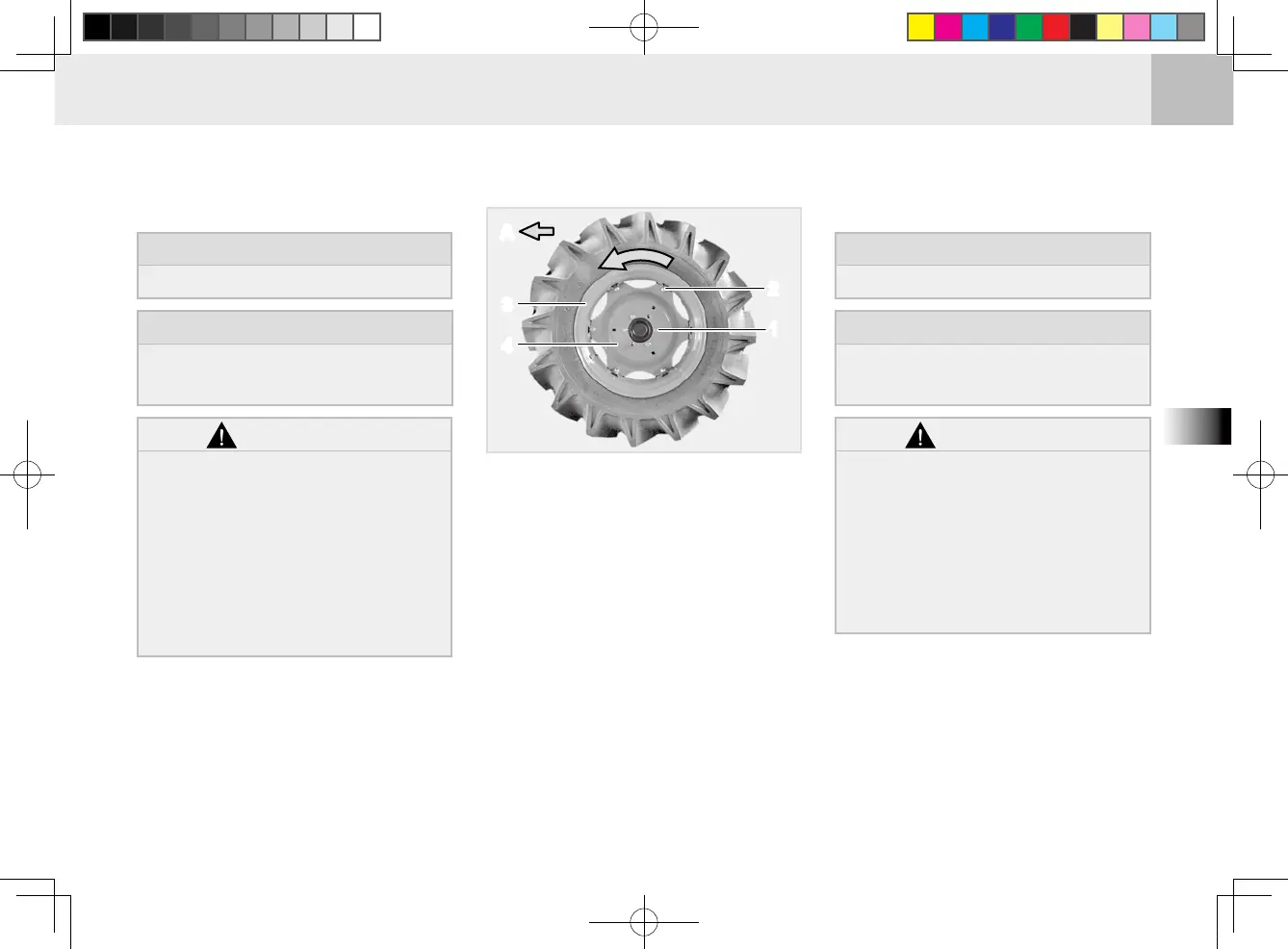

WHEEL INSTALLATION DIRECTION
For agricultural tires, make sure to
install them with their arrow marks
on their side pointing the front driving
direction.
The tire is correctly installed if the
tread mark “V” on the ground is
shown correctly, not up side down,
while the tractor is moving forward.
REAR TIRE SPECS AND WHEEL
BOLT/NUT TORQUE
Tire size (Agri)
13.6-24 / 6PR
WARNING
Use tires approved by KIOTI only.
Assemble the tire as shown in
the gure.
Contact your local KIOTI Deal
-
er if it is necessary to change
the tire specication or instal-
lation method.
•
•
•
Tightening torque of wheel bolt (Nut)
196~225 N·m
144~166 lbf-ft
20 ~ 23 kgf·m
FRONT TIRE SPECS AND WHEEL
BOLT/NUT TORQUE
Tightening torque of wheel bolt (Nut)
196~225 N·m
144~166 lbf-ft
20 ~ 23 kgf·m
WARNING
Use tires approved by KIOTI
only.
Assemble the tire as shown in
the gure.
Contact your local KIOTI Deal
-
er if it is necessary to change
the tire specication or instal-
lation method.
•
•
•
Tire size (Agri)
8-16 / 6PR
To Next Page
