LOADER OPERATION 6-5
The Single lever joystick control lever is mounts on the
KL155 From the factory.
The control lever has the safety lock function.
Lock the control lever when leaving the tractor while the
Bucket is in the air.
The loader hydraulic valve lift Cylinder circuit incorporates
a "float" position which allows the loader bucket to follow
ground contours. The "float" position is engaged by shifting
the control lever forward into "detent" until the operator pulls
the control lever out of the "Detent" position.
Refer to "Scraping" operation for recommended use
of "float" position.
The control valve has a neutral position that prevents
movement of loader or bucket.
When the control valve is released from the work position,
the spool will return to neutral.

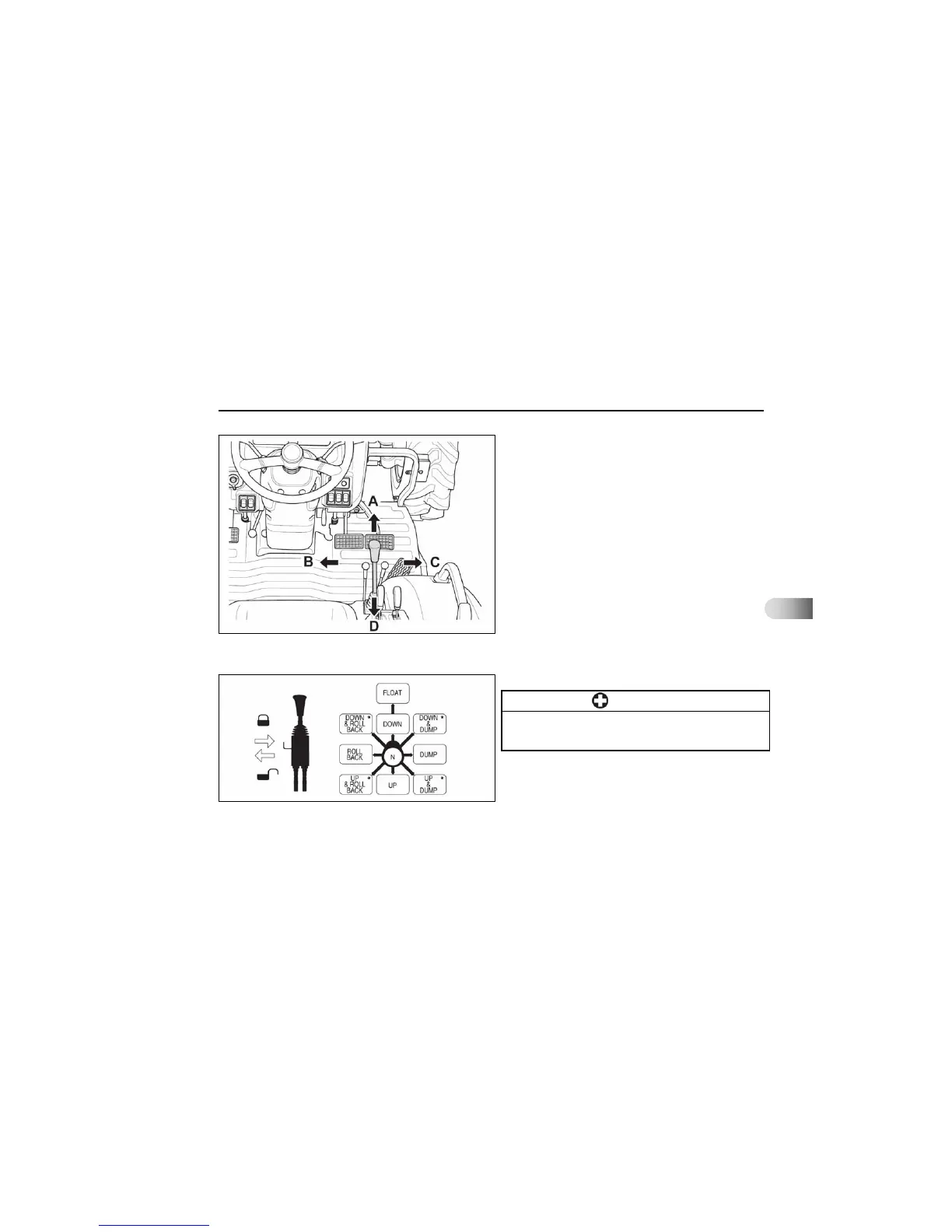

(A) Forward-Float Low (B) Left-Bucket Retract
(C) Right-Bucket Dump (D) Rear-Raise
IMPORTANT
• Contaminates in hydraulic oil can cause valve spools
to stick. Be alert when operating loader and follow your
Tractor Operator’s Manual maintenance schedule.
