(1) Battery
Mishandling or abuse of the battery
can shorten the service life and adds
to maintenance cost of the tractor.
If the battery is weak it will cause the
engine to be hard to start and also
make lights dim. It is important to
check the battery periodically.
S41OA27A

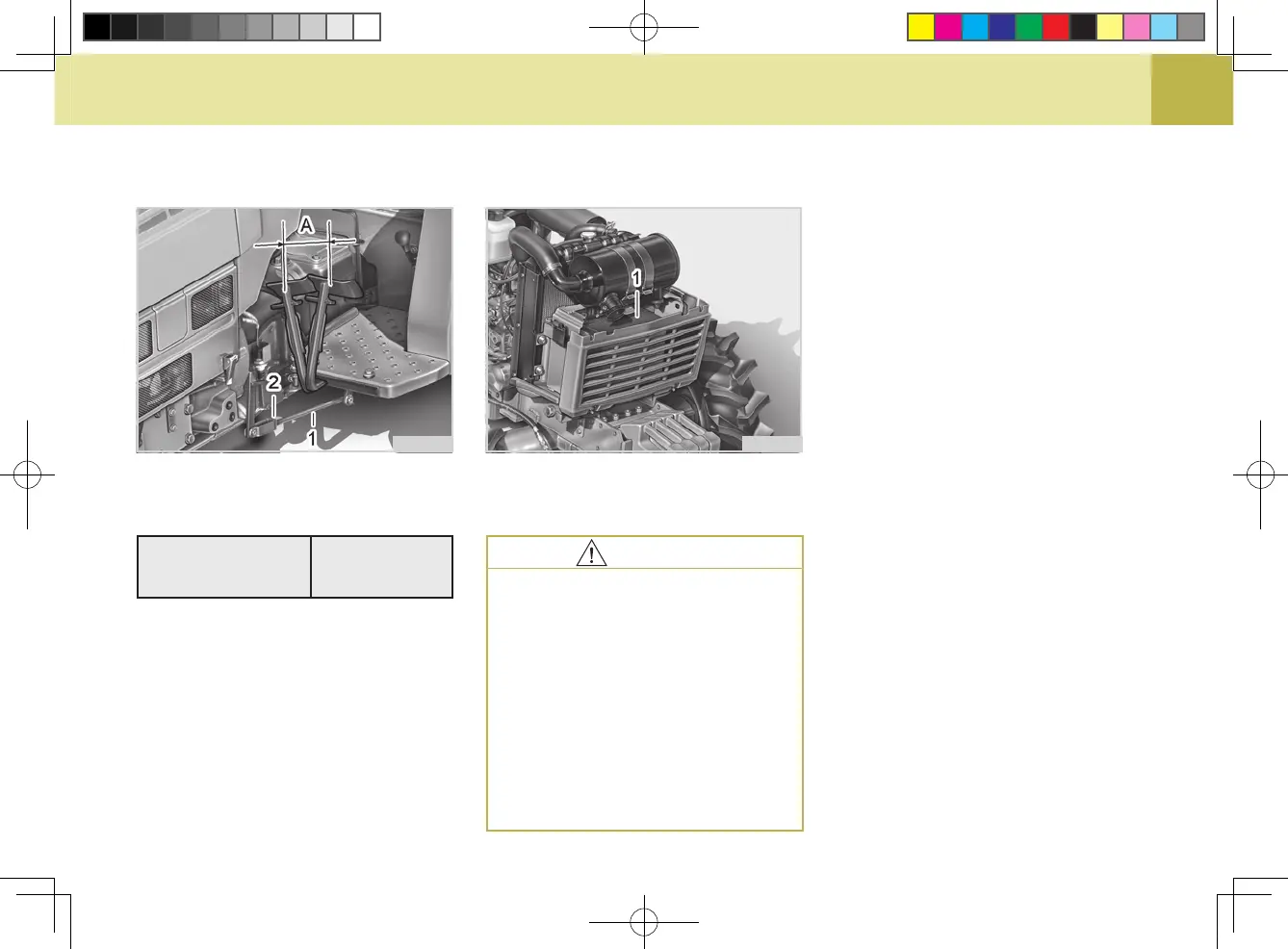

BATTERYADJUSTING CLUTCH PEDAL
Proper clutch pedal
free travel (A)
20 ~ 30 mm
(0.8 ~ 1.2 in.)
on the pedal
1. Stop the engine and remove the key.
2. Slightly depress the clutch pedal and
measure free travel at top of pedal
stroke.
3. If adjustment is needed, loosen the lock
nut, remove the clevis pin and adjust the
rod length within acceptable limits.
4. Retighten the lock nut and replace the
clevis pin.
(1) Clutch Rod (A) Free Travel
S41OA26A
To avoid personal injury:
Keep electrolyte away from
eyes, hands and clothes.
If you are spattered with it,
wash it away completely with
water immediately and call
your local poison informa-
tion center.
Wear eye protection and rub-
ber gloves when working
around the battery.
CAUTION
