6. SELECTING THE TRAVEL SPEED
(2) SHUTTLE SHIFT LEVER
Push forward or pull backward to
select forward or reverse. The direc-
tion of travel can be changed without
changing the main shift.
(1) MAIN SHIFT LEVER
The main shift is fully synchronized to
shift without stopping just by depress-
ing the clutch pedal.
(4) FRONT WHEEL DRIVE LEVER
The front wheel drive should always
be engaged when the tractor is
stopped. Shift the lever to the “ON”
position to engage the front wheel.

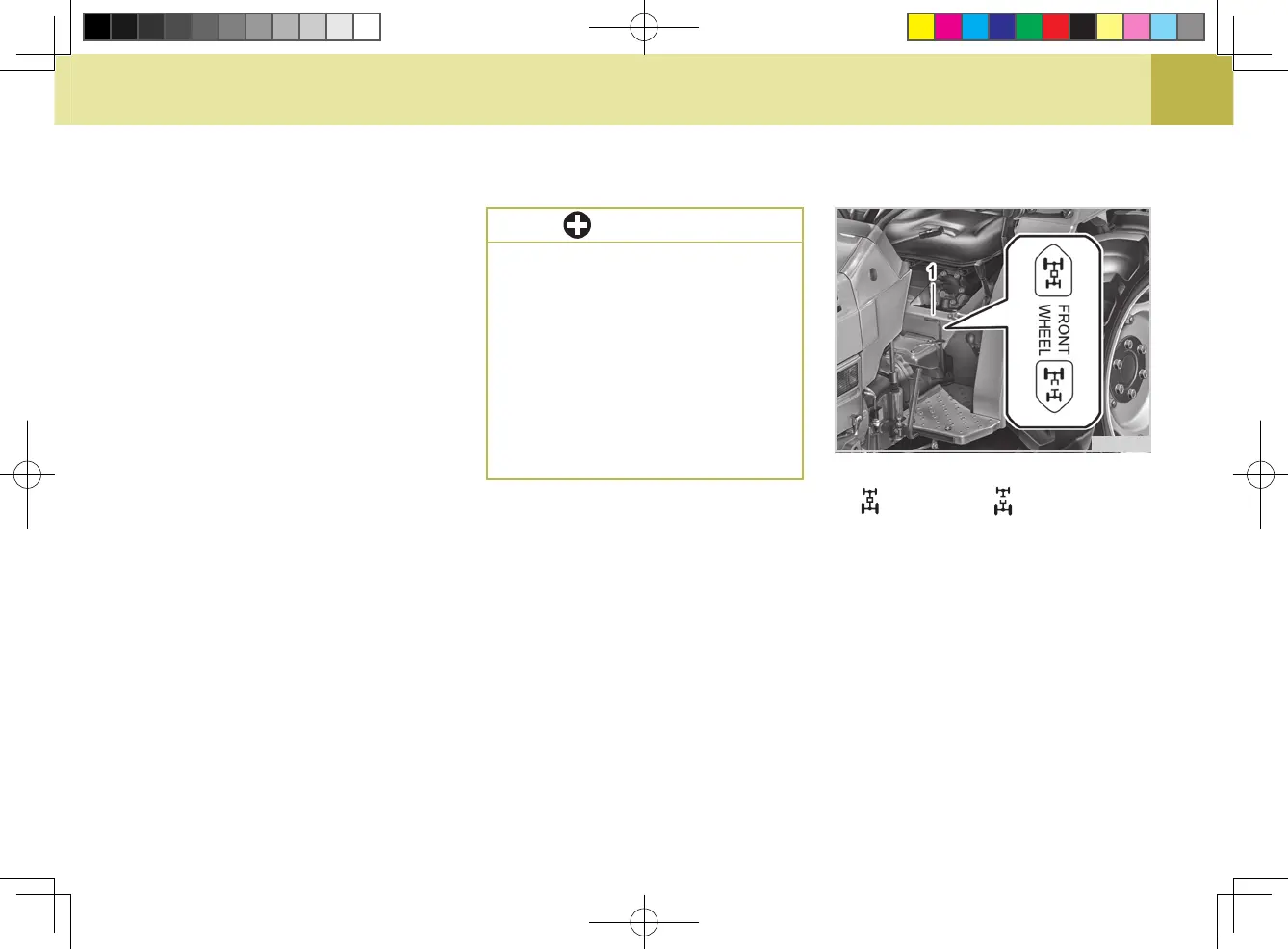

(1) Front Wheel Drive Lever
“E
NGAGED” “DISENGAGED”
S41O519A
(3) RANGE GEAR SHIFT LEVER (HI-LO)
The range gear shift can only be shift-
ed when tractor is completely stopped
and clutch is depressed.
If it is difcult to shift the range gear,
take the following actions.
1. Be sure the range gear shift lever is
in neutral position.
2. Release clutch pedal.
3. Depress clutch pedal and then shift
the range gear shift lever.
To avoid transmission damage,
depress clutch pedal and stop
tractor before shifting between
ranges.
In high shift ranges and low
engine rpm, the vehicle could
be stopped when the output
axles are loaded. At that time,
Use the low range gear or in-
crease the engine rpm.
IMPORTANT
