10. You need to adjust the position of 2-3 block and 3-4 block first and then that of 1-2 block and
4-5 block.

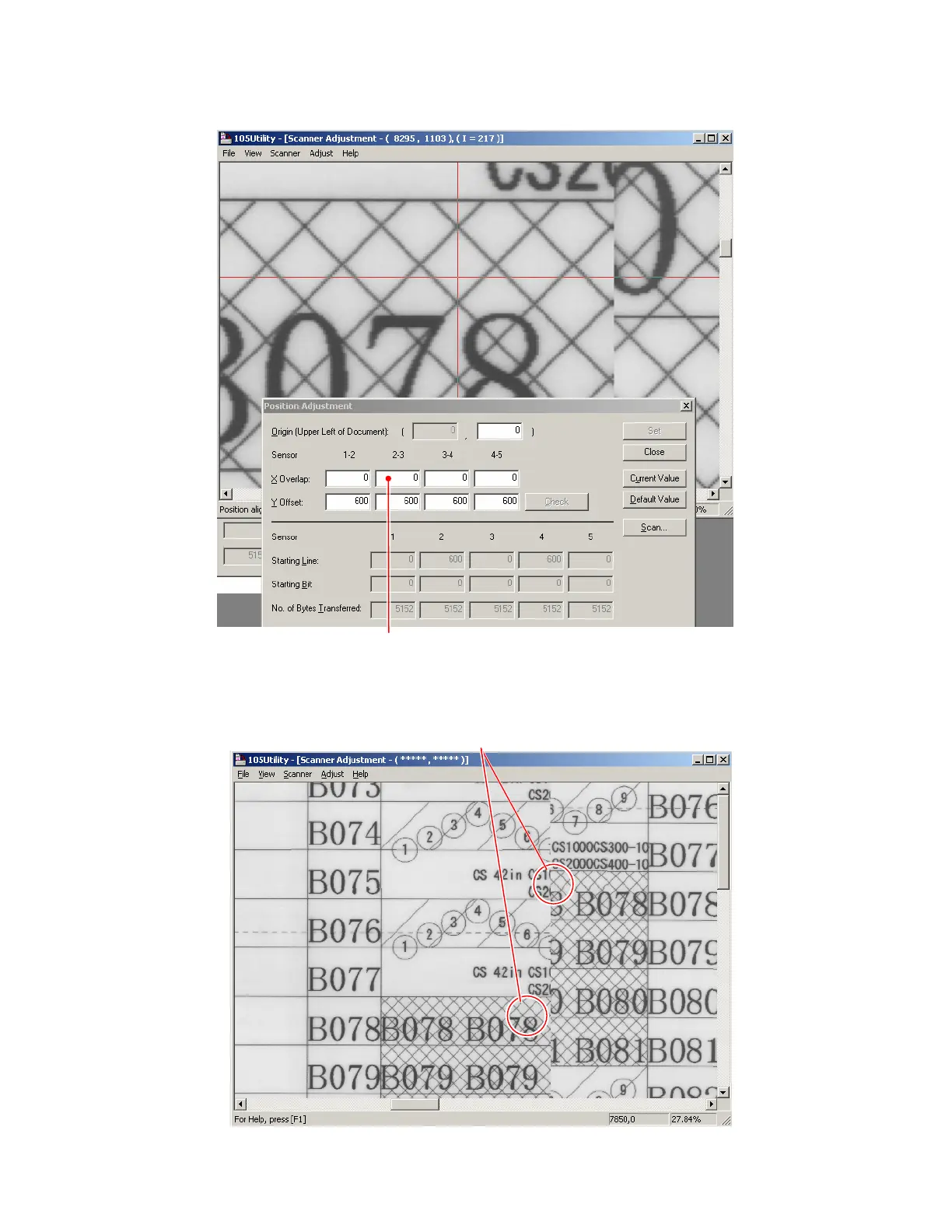

Click the input window “X Overlap” (or “Y Offset”) of “2-3” (or “3-4”).
A red cursor appears on the screen.
Clock the input window
11. Find the same image which is included in both Image Blocks.
Same image
