4-3

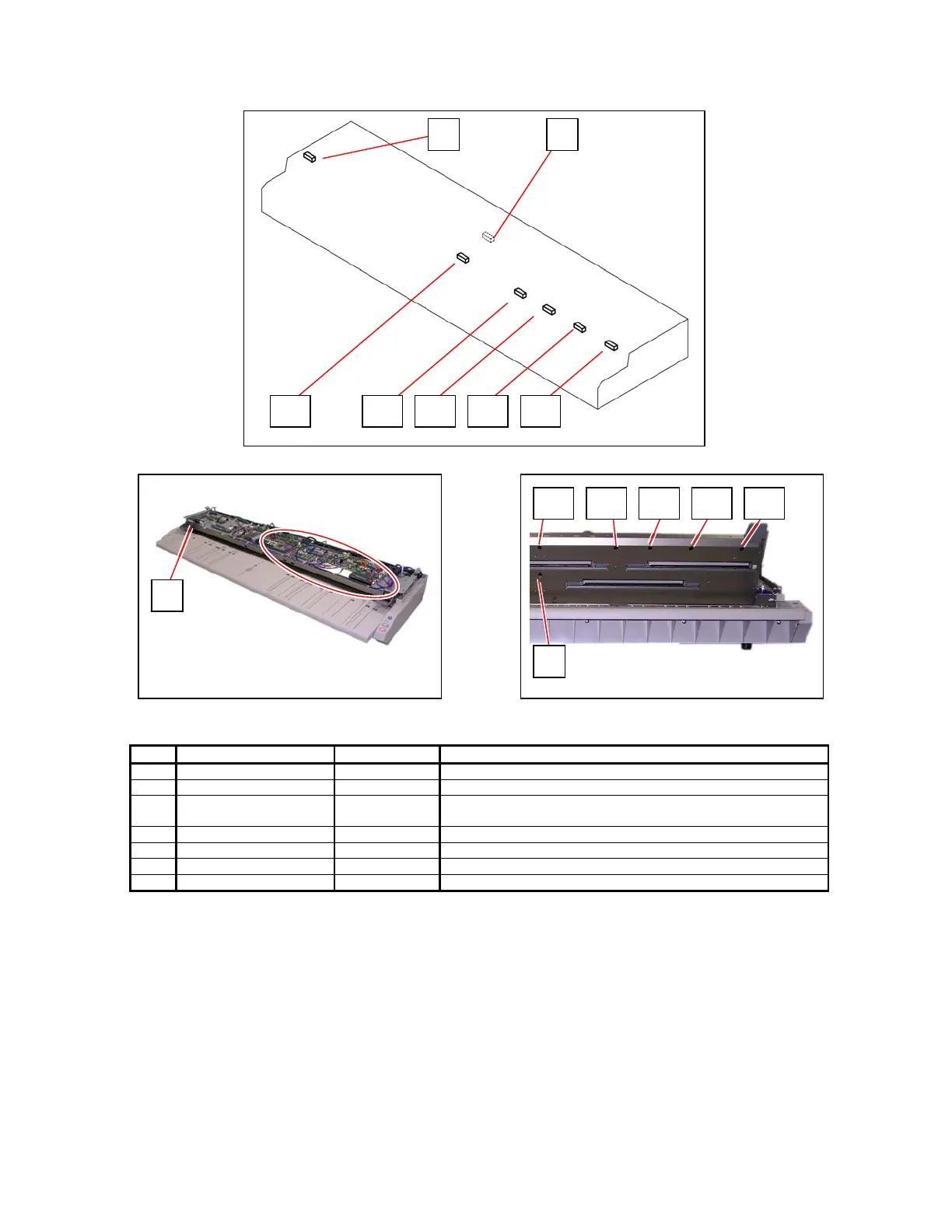

4. 2 Sensor
Item Name Type Function
8 Cover Sensor LG217L-3 Detects whether Top Cover is opened.
9 Sensor PS117ND1 Detects original misfeed.
10 Sensor PS117ND1 Detects the insertion of original.
Detects original widths A4 (Landscape), A3, 11” and 12”.
11 Sensor PS117ND1 Detects original widths A2, 17” and 18”.
12 Sensor PS117ND1 Detects original widths A1, 22” and 24”.
13 Sensor PS117ND1 Detects original widths A0, 30” and 34”.
14 Sensor PS117ND1 Detects original widths 36”.
8
8 9
10 11 12 13 14
9
10 11 12 13 14
