K110sm5e3.doc
5-14

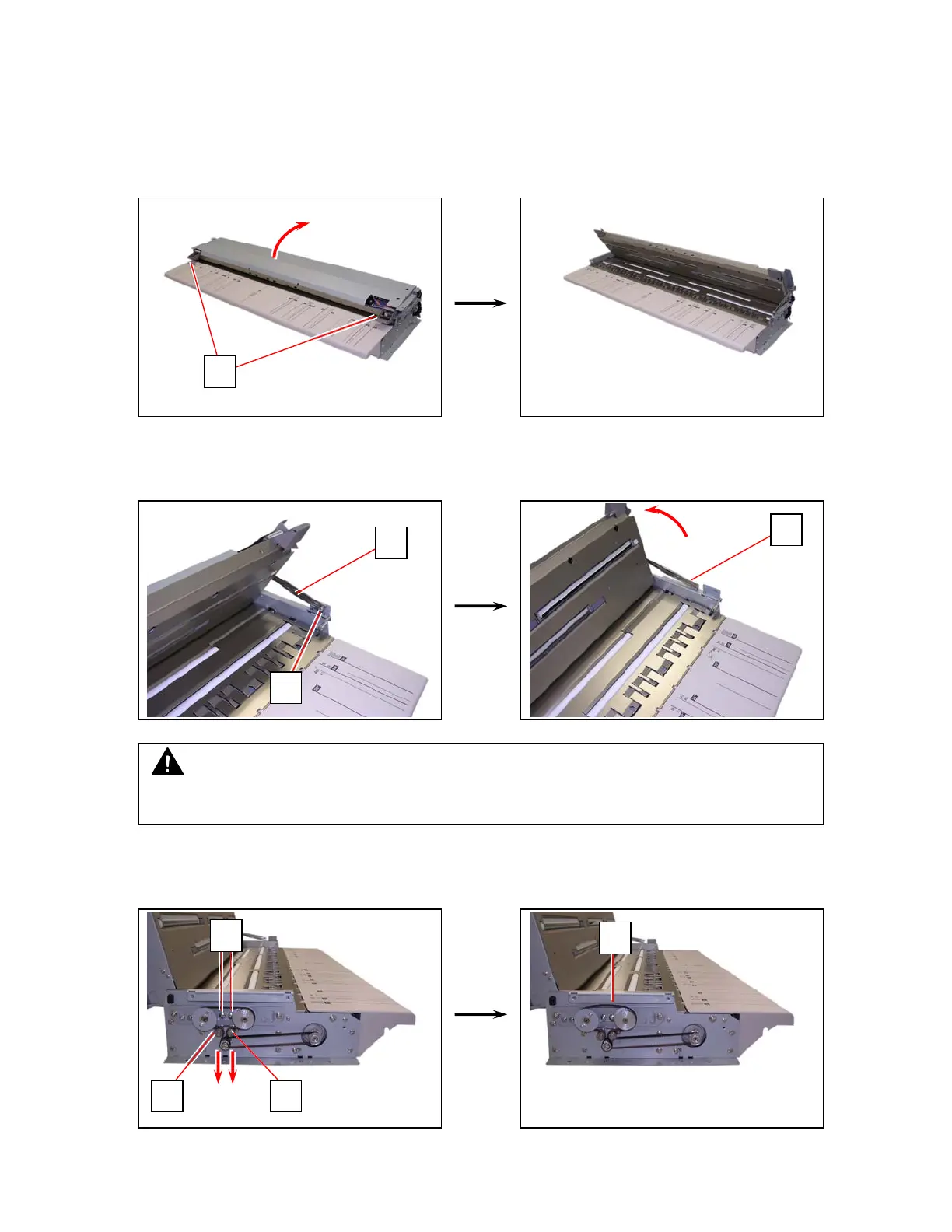

5. 2. 4 Replacing Drive Roller 1 and Drive Roller 2
1. Remove Top Cover, Side Cover L and Operation Panel Assembly.
See [5.1.1 Removing Top Cover], [5.1.3 Removing Side Cover L] and [5.1.4 Removing
Operation Panel Assembly].
2. Pull Levers (1) upward to lift up Upper Unit.
3. Remove the screw (2: 4x16) to release Flap Stay (3).
Open Upper Unit fully.
4. Loosen 2 screws (4).
Slide Tension Pulley (5) down to release Belt 60S2M250 (6).
CAUTION
Be careful not to catch a finger in Upper Unit.
1
2
3
3
4
5 5
6
To Next Page
