3 Operation of components
▆ Start key (stop with start lock)
● OFF
Insert the start key and disconnect all electrical
units at OFF.
● ON
Turn the key to right from OFF to ON. Then all
electrical circuits are energized.
● Start
Turn the key to further right from ON to Start, start
motor rotates and engine starts.
Start key returns to ON automatically if it is
released. Please release the start key after
engine starts.
● Stop
Engine stops running when key is at OFF.
Additional information
* When operating lever of forward and backward
puts into gear, engine cannot start when neutral
position is active. Operating lever must be at
the neutral position when engine is started.
* Sit on the driver’s seat and start the engine.
* Trigger the Stop Brake and take away the start
key if driver leaves the cab.

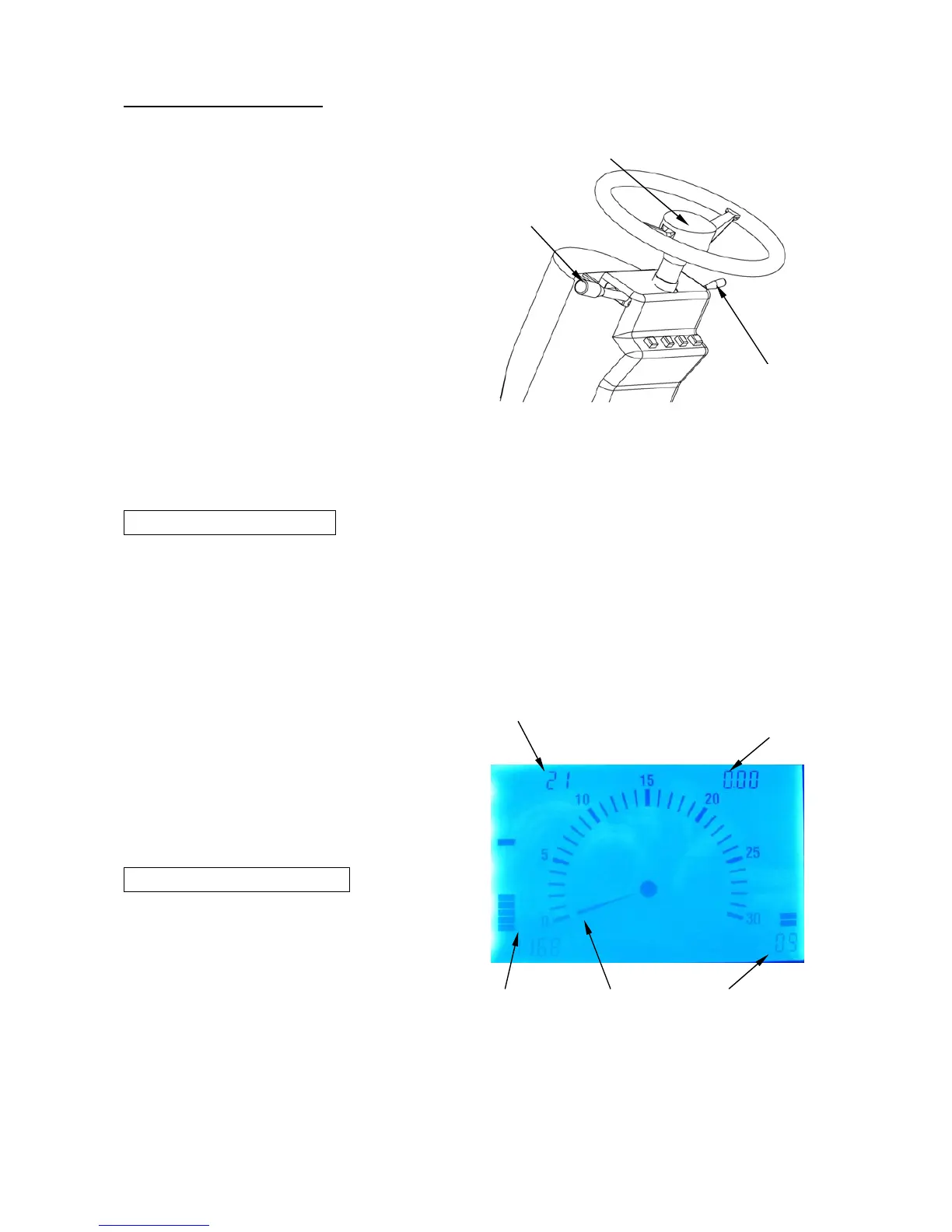

◆ Operating lever of forward and backward
It is an operating lever to change the running
direction of loader. Push the lever forward and
loader runs forward. Pull the lever backward
and loader runs backward.
* Place the operating lever at the neutral position
when starting the engine.
◆Switch of turning lamp
Turn the switch of turning lamp to left or right and
corresponding turning lamp blinks. Reset the
switch of turning lamp after loader turns left or
right. Switch of turning lamp cannot return to
the center automatically even if resetting the
steering wheel.
Additional information
Horn button
◆ Horn button
Press the center of steering wheel to sound the
horn.
▆ Fuse box
There are three 10A fuses, three 20A fuses and
three 30A fuses as well as standby fuses in the
box to guarantee the safety of electrical loop.
▆ Instruments
Instruments can display values when loader
starts. Instruments are in the middle of
instrument board.
Water thermometer Indicator of engine oil
pressure
Oil level Rpm meter Timer
gauge of engine
