47
16. APENDIX A- MOBILE LIGHT KIT
MOUNTING INSTRUCTIONS FOR THE IG2000 ACCESSORY LIGHT KIT
This accessory light kit is designed specifically for use on the IG2000 Generator.
Tools required: Phillips head screwdriver
Parts supplied:
(1) IG2000s-05100 Light Kit Assembly
(2) IG2000s-05001 Antiskid Round Nut
(3) IG2000s-05001 Antiskid Round Stud
(4) IG2000s-05003 Left Mount Plate of Light Kit
(5) IG2000s-05004 Right Mount Plate of Light Kit
(6) Screw M5×45 2PCS
(7) Screw M5×16 1PCS

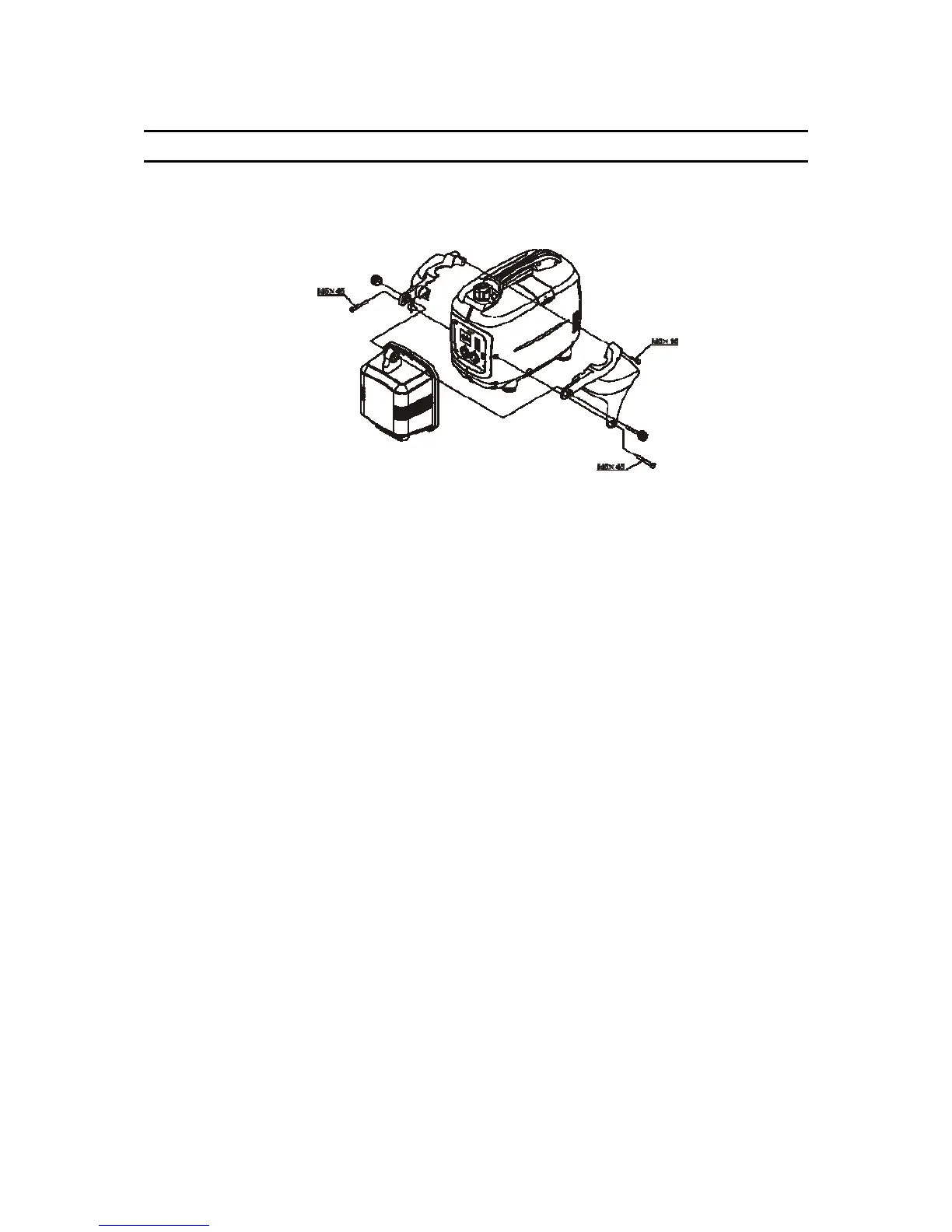

Assembly:
(1) Remove the screw from the IG2000 Portable Digital Generator and the screws from the side of the control
plate;
(2) Install the mounting plates on the generator using the M5×45 and M5×16 screws. DO NOT TIGHTEN
SCREWS.
(3) Insert the antiskid round stud through the light fixture, left and right mount plates and then lock the antiskid
round stud.
(4) After adjusting the angle of the light, tighten the antiskid round stud, M5×45 screws, and M5×16 screw in turn.
Before operating the light, be sure to read the owner’s manual for operation and maintenance information along
with safety precautions. The light switch must be in the OFF position when starting the generator.
Operation:
To operate the light, plug in the cord to one of the receptacles. Turn the switch on and readjust the light as
necessary. The light consumes approximately 500 watts so available power to the other receptacle is reduced.
