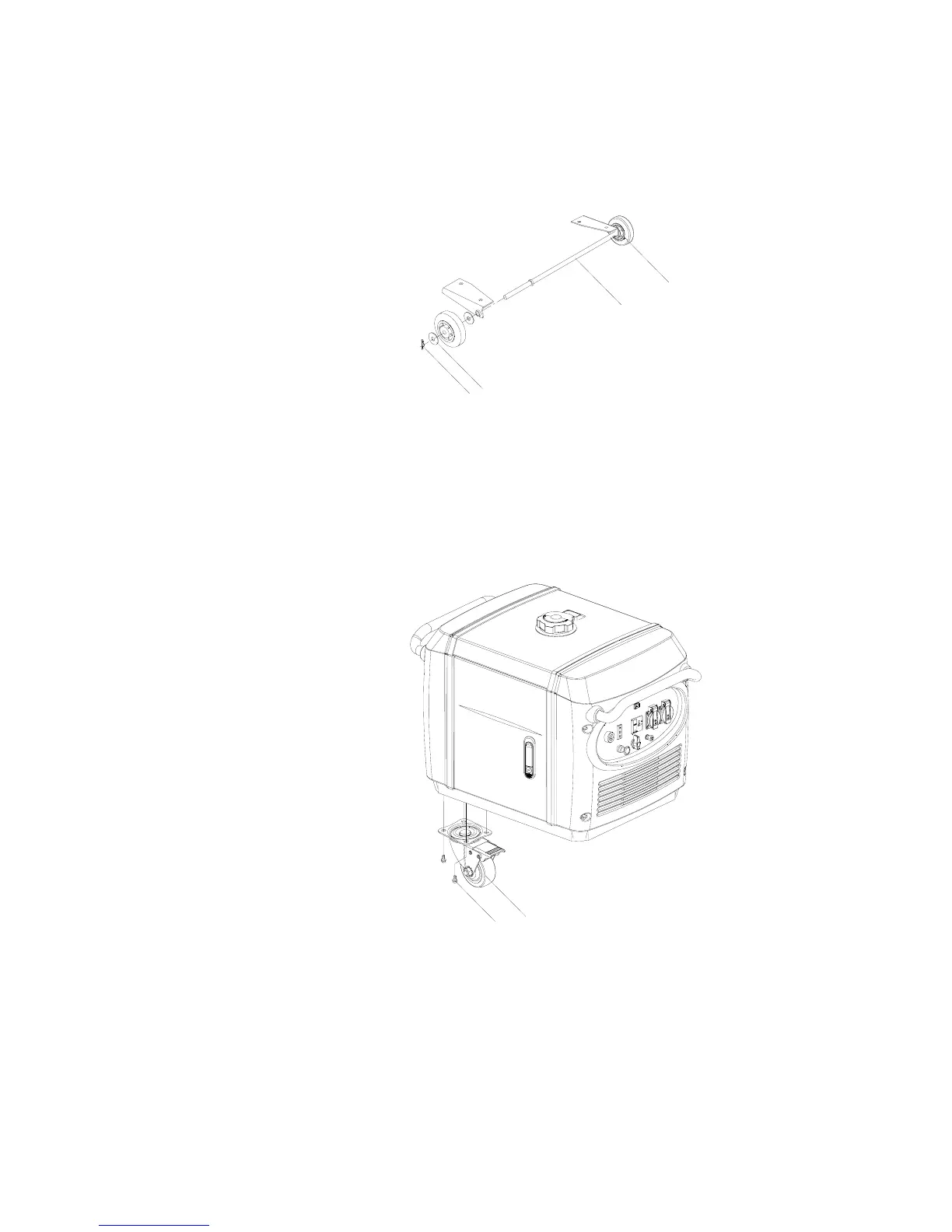

A. Castor parts assembly
a. Put washers at both sides of castor and slip them to axle.
b. Fixed with lock pin.
1. Ground wheel
2. Axle welding
3. Lock pin
4. Washer
B. Install 2.5 inch universal wheel
a. Align mounting holes of universal wheel and chassis
b. Fasten them closely with bolt M6×16
1. 2.5 inch universal wheel
2. Bolt M6×16
1
2
3
4
1
2
