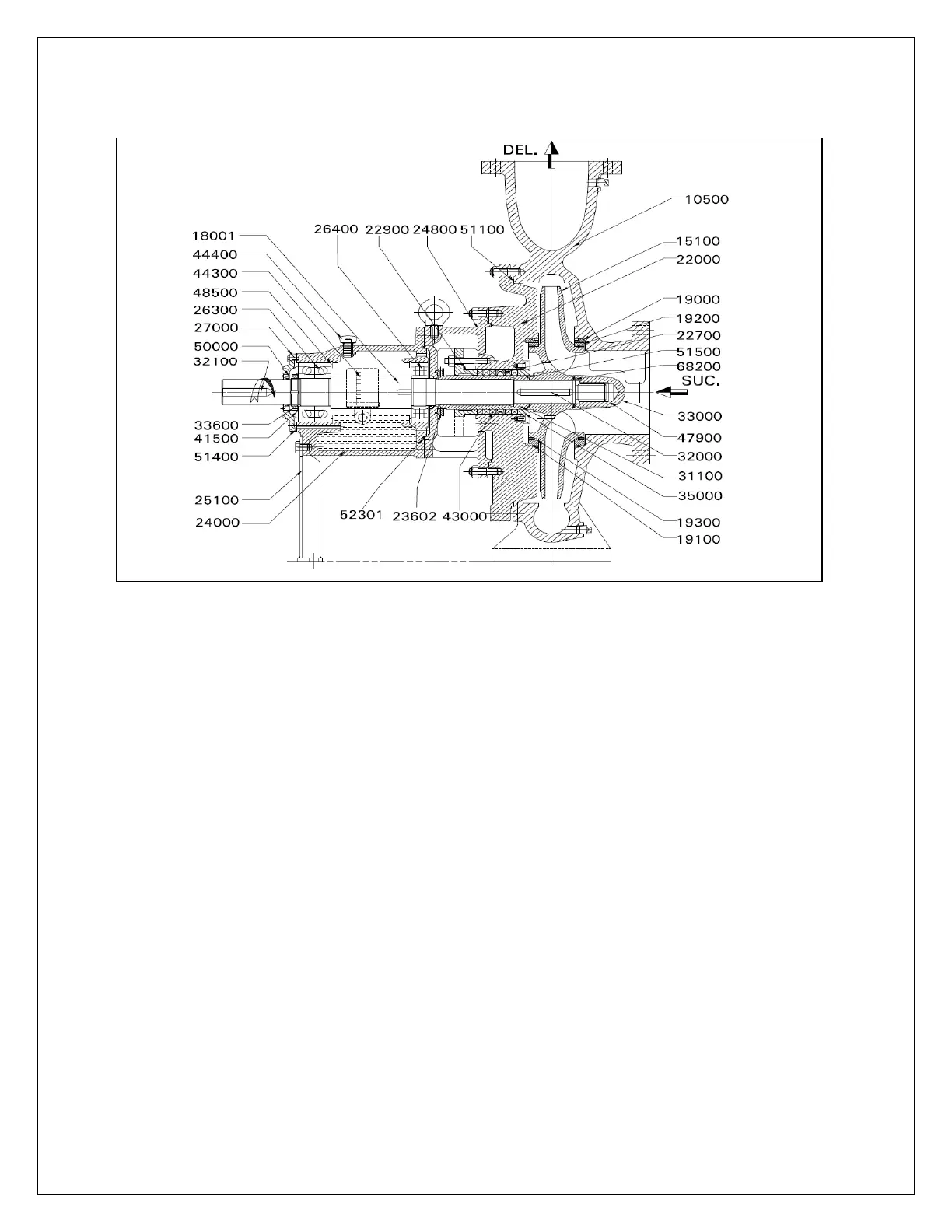

7.2.5 CROSS SECTION DRAWING OF CPHM 11A, 11B, 13:
PART
NO.
DESCRIPTION
PART
NO. DESCRIPTION
10500 PUMP CASING
27100 BEARING COVER P.S.
15100 ENCLOSED IMPELLER
31100 SHAFT SLEEVE
18001 PUMP SHAFT
32000 KEY FOR IMPELLER
19000 CASING WEAR RING SCTION SIDE
32100 KEY FOR COUPLING
19100 CASING WEAR RING DELIVERY SIDE
33600 LOCK NUT
19200 IMPELLER RING SUCTION SIDE
35000 STUFFING BOX BUSH
19300 IMPELLER RING DELIVERY SIDE
41500 LOCK WASHER
22000 CASING COVER
43000 GLAND PACKING
22700 LANTERN RING
44100 GREASE NIPPLE
22900 SPLIT GLAND
47900 HELICOIL INSERT
23602 LIQUID DEFLECTOR
48500 INTERNAL CIRCLIP
24000 BEARING HOUSING
50201 FELT RING
25100 SUPPORT FOOT
51101 GASKET FOR CASING
26300 ANGULAR CONTACT BALL BRG. D.S.
51400 GASKET FOR BEARING
26400 CYLINDRICAL ROLLER BRG. P.S.
GASKET FOR SLEEVE AND IMPELLER
27000 BEARING COVER D.S.
68200 GASKET FOR IMPELLER
