KIRLOSKAR CPHM - Page 43

IOM/CPHM/DEC19/01 ISSUE DATE:14-12-2019
Page 42 | 48 REVISION NO.1
INCORRECT CORRECT

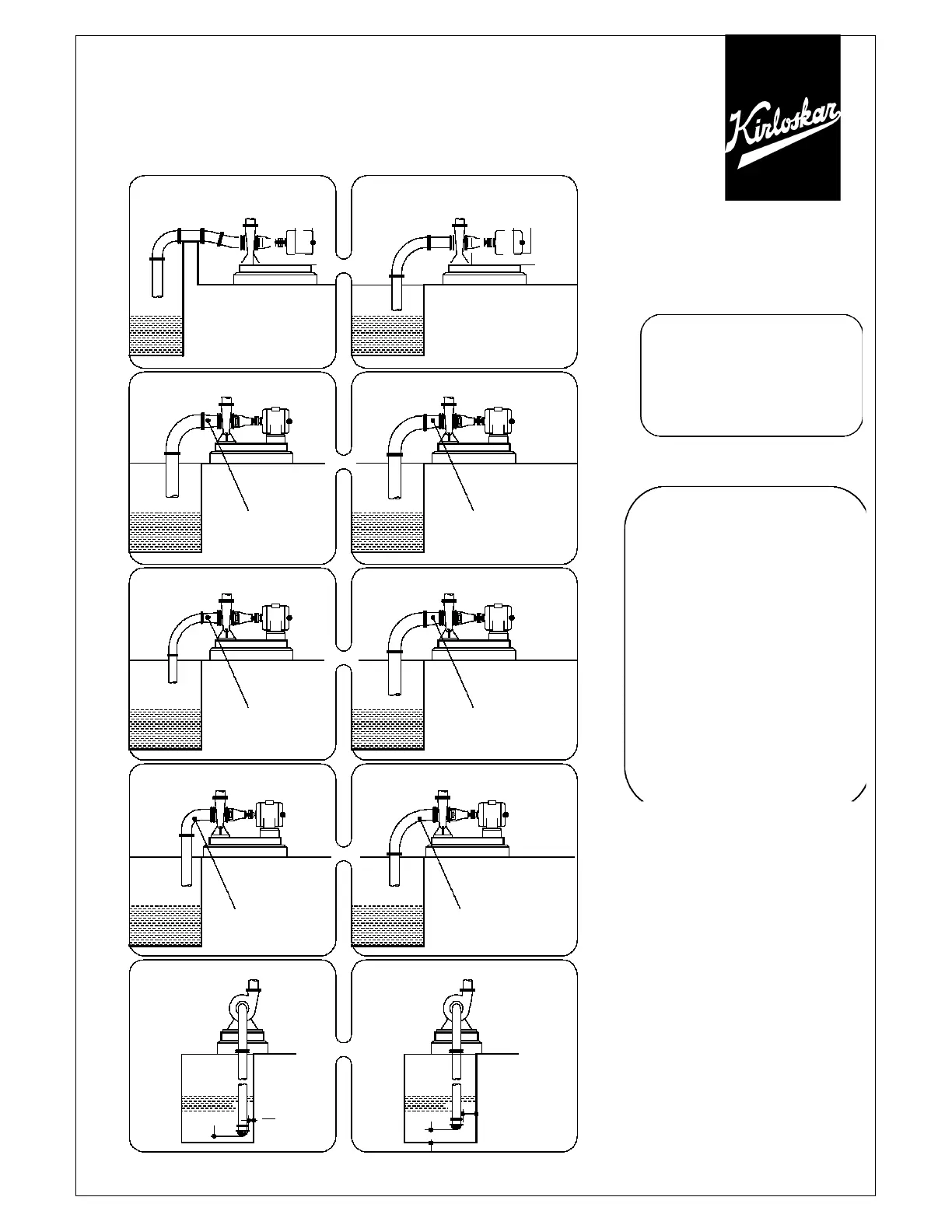

INCORRECT LAYOUT OF SUCTION PIPE CORRECT LAYOUT OF SUCTION PIPE
FOR RECOMMENDATIONS OF
SUITABLE SUCTION AND
DELIVERY PIPE SIZE PLEASE
CONTACT OUR AUTHORISED
DEALER OR NEAREST
REGIONAL OFFICE
CONCENTRIC TAPER PIECE
REDUCED SUCTION PIPE
ECCENTRIC TAPER PIECE
INCREASED SUCTION PIPE
GENERAL
INSTRUCTIONS
FOR
INSTALLATION
OPERATION &
MAINTENANCE OF
KIRLOSKAR
CENTRIFUGAL
PUMPS
SHORT BEND LONG BEND
INSUFFICIENT
D
SPACE AROUND
D
FOOT VALVE
D SUFFICIENT
SPACE AROUND
FOOT VALVE
D
® Registered users – Kirloskar Brothers Ltd.
