CAUTION
1. In no case oil should be filled in directly into the bearing housing reservoir, through
breather cap.
2. Replenish the visible reserve supply of oil in the container as oil is used up.
3. Please ensure that “Air Groove” provided on aluminum body on which plastic
container rests, is not clogged with dust/fiber, oil film, etc. This groove allows
atmospheric air to enter inside the body to maintain oil level in bearing housing.

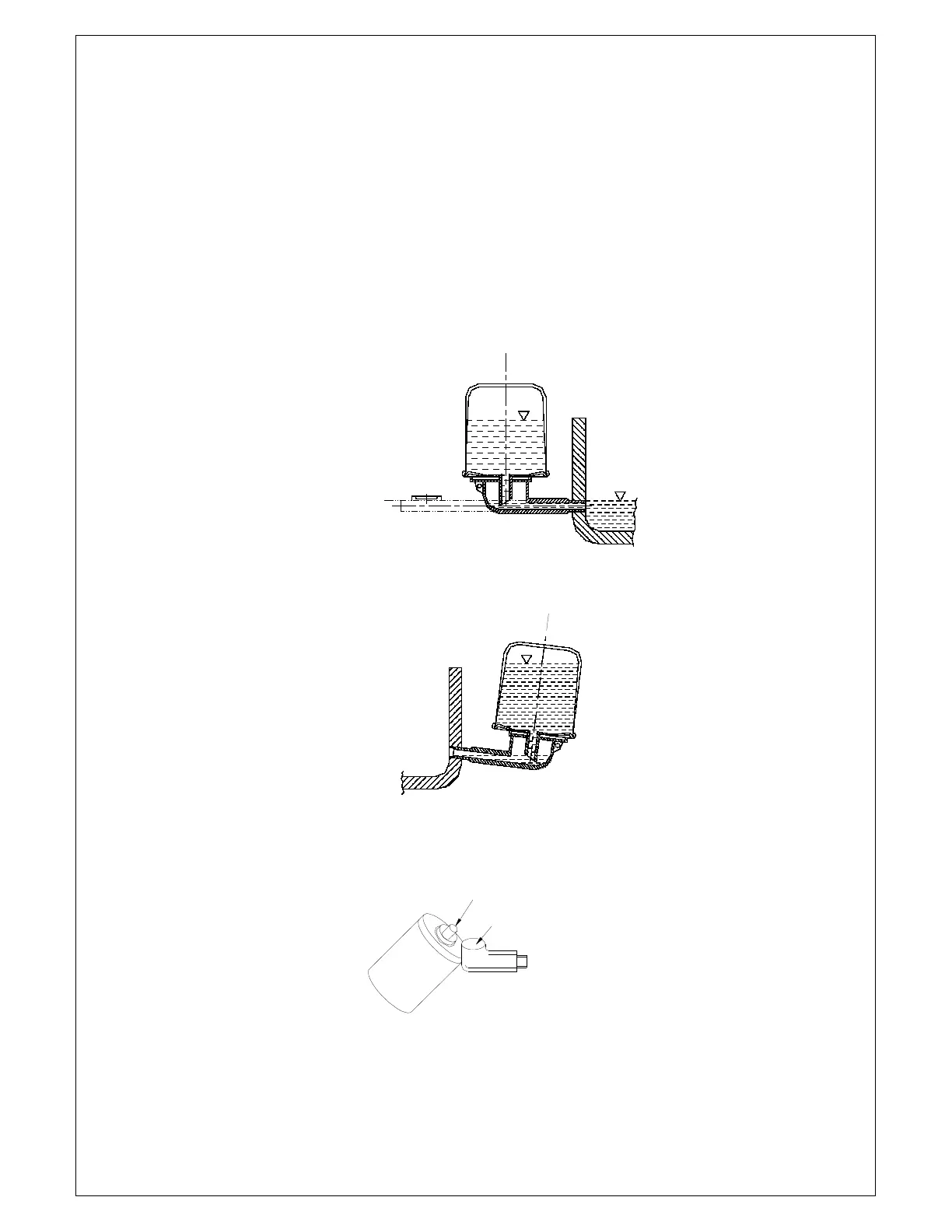

SPIRIT
LEVEL
Fig. 2
CORRECT
METHOD
Fig. 3
INCORRECT METHOD
ALWAYS FILL OIL
HERE
NEVER FILL OIL
HERE
Fig.
4
