KIRLOSKAR KPDS - With Round Support Plate; With Rectangular Support Plate; Lifting Arrangement

IOM/KPDS/NOV 19/00 Page 5
55
5 of 50
5050
50 Issue Date : 22/11/2019
Revision: 00

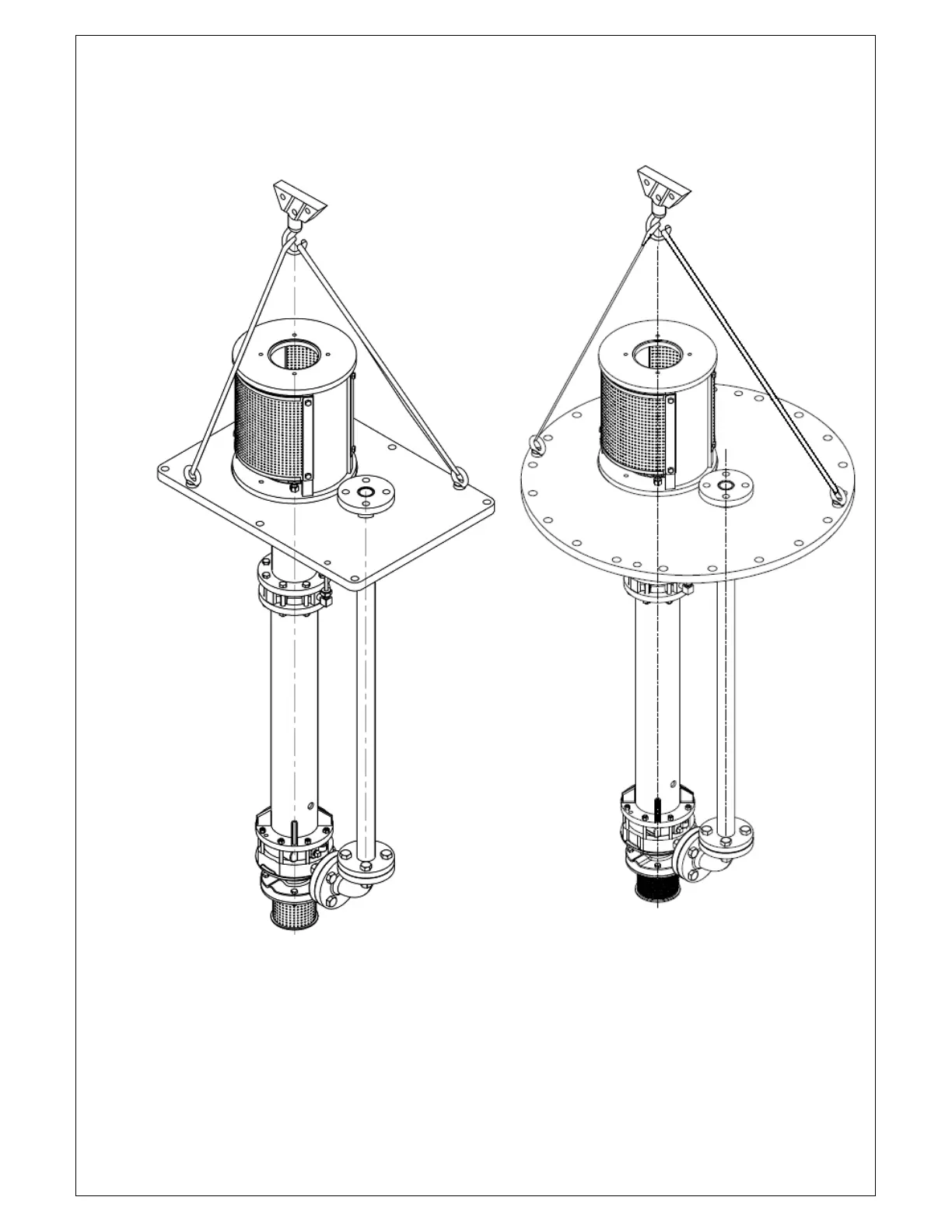

LIFTING ARRANGEMENT
A) With Rectangular Support plate B) With Round Support plate
Figure 1
NOTE: It is recommended to dismantle the motor from pump along with electrical
connections and then lift the pump assembly. This is recommended to avoid damage to the
motor, proper alignment and levelling while commissioning the pump.
