Smart Charging Feature
The DC to DC Battery Charger will regulate its output based on the loads connected to your
battery banks. This function is important to maintain the life of your battery banks as some battery
chargers mistake loads for discharge and continue to keep the batteries in the bulk or absorption
stage for extended periods of time, which will damage the battery bank. The DC to DC Battery
Charger has two methods of load-based regulation to ensure your battery charger transitions to
float stage when it should do so.

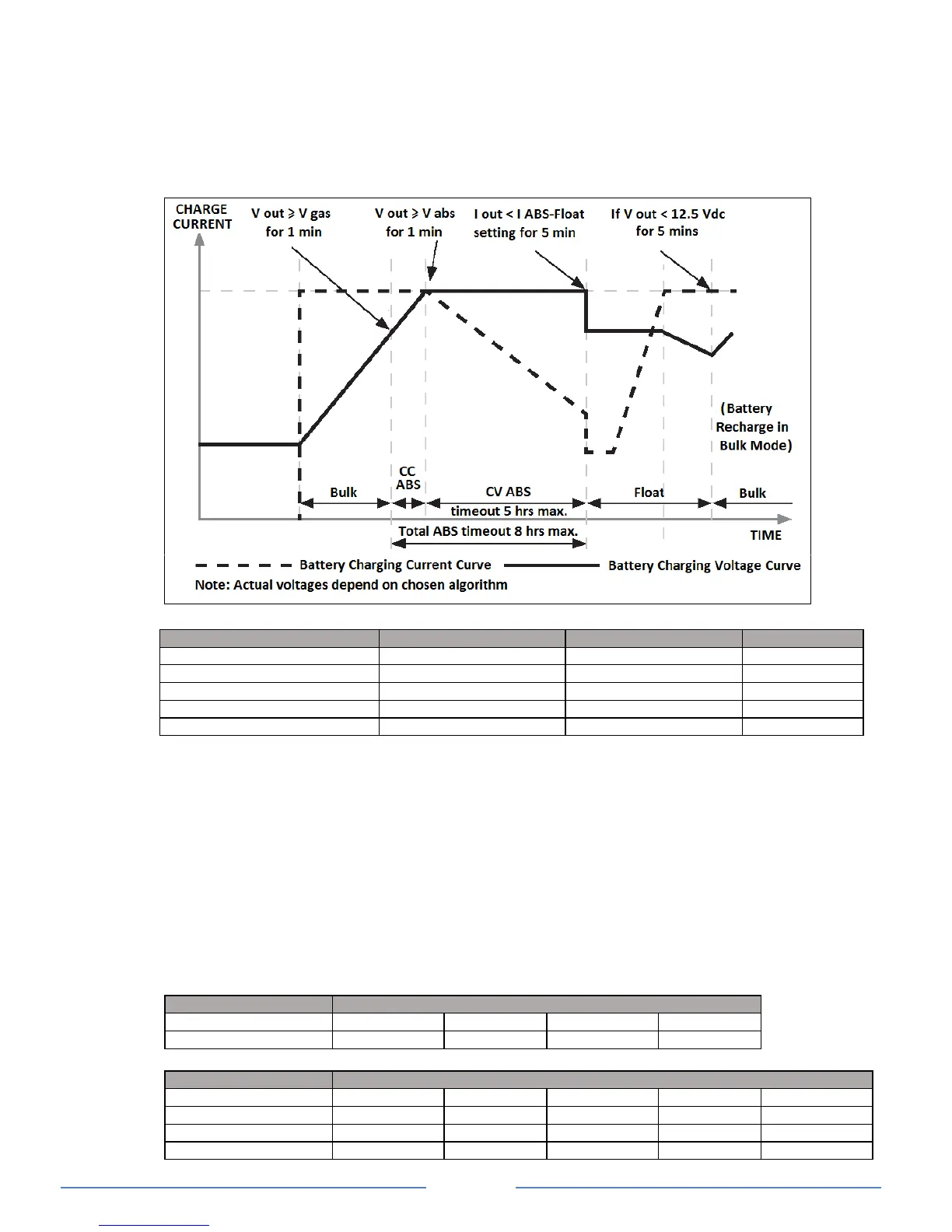

GEL, AGM, Flooded & Program Batteries Charging Algorithm
Battery Charger Voltage
For Concorde™ branded batteries (lifeline, sun xtender) use flooded setting and consult battery supplier for
equalization recommendations.
Note 1: Charger is acting as a power supply with selected constant output voltage and preset maximum
output current.
Note 2: Equalization setting can only be used on flooded battery type selection only. See more details on
Procedure to Equalize the Flooded Battery
Note 3: Charger will terminate charging when charging current drops to below the set charger termination
value.
Battery Bank Size Recommendation
The battery charging current rating is based on the battery size. The battery bank should meet
the minimum Ah rating as shown. If a smaller size battery bank is used, set the current rating to
a lower value to match with the battery bank size. Normally, the minimum battery bank capacity
is based on a C5 rating of the battery for charging.
