3. Accuracies

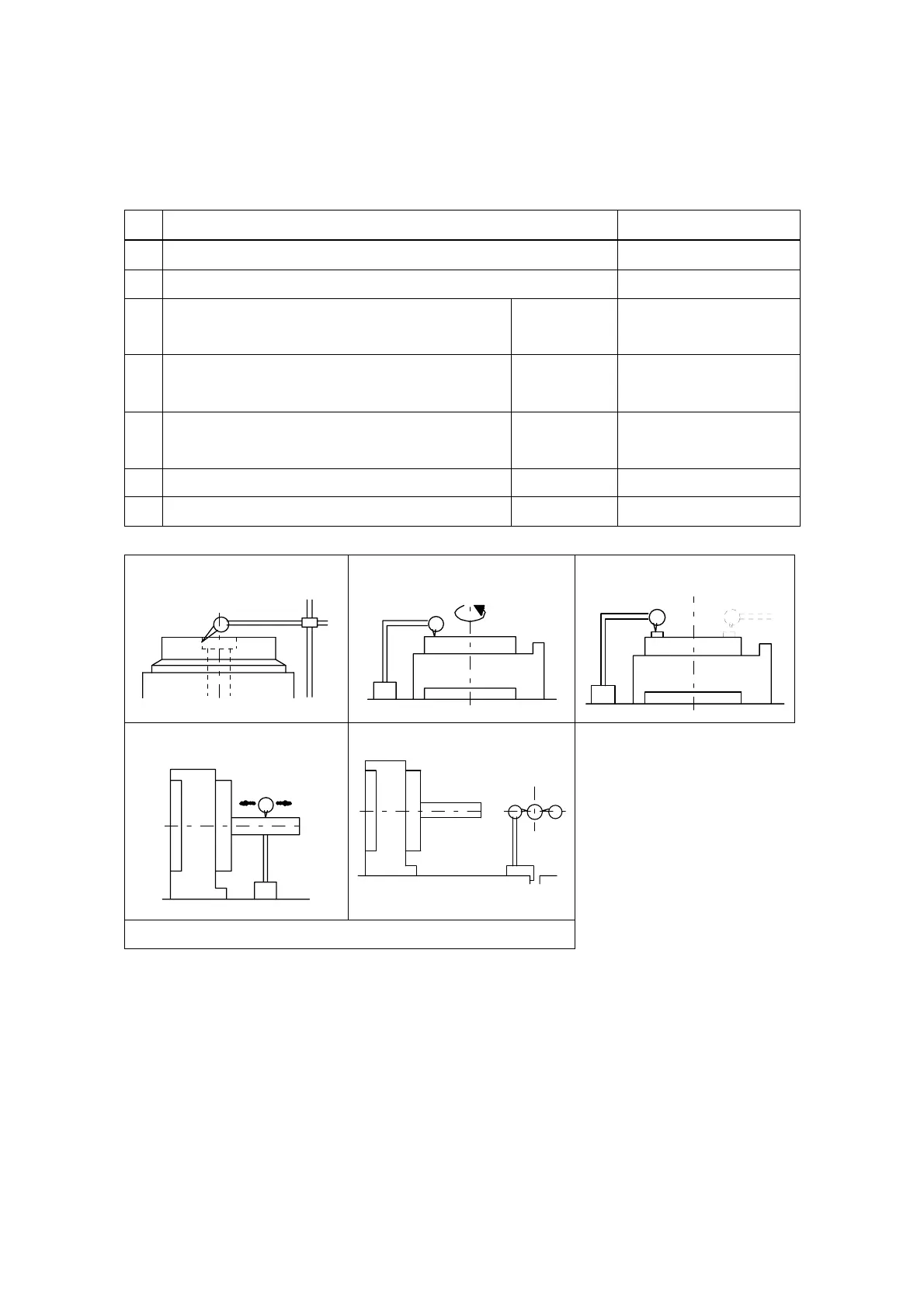

Guaranteed Accuracies (Unit:mm）
Description of Inspection Guaranteed Accuracy
1 Run-out of center hole 0.01
2 Run-out of table surface 0.02
3
Parallelism of table surface and reference
plane for horizontal installation
Per 150mm 0.02
4
Parallelism of rotating axis center line and
reference plane for vertical installation
Per 150mm 0.02
5
Parallelism of rotating axis center line and
guide block center
Per 150mm 0.02
6 Indexing accuracy Cumulative 20 sec [MX(M):40 sec]
7 Repeatability Cumulative 4 sec [MX(M):8 sec]
1
2
3
4
5
6,7 Index accuracy is measured with the optical device.
