Kitagawa MR250RAE13 - Sensor Mechanism

26
Hexagon socket headless
set screw ②
Dog ③
Hexagon socket flange
head screw plug ①
Rock nut ⑤
Proximity switch ④
0.75mm
11-3. Sensor Mechanism

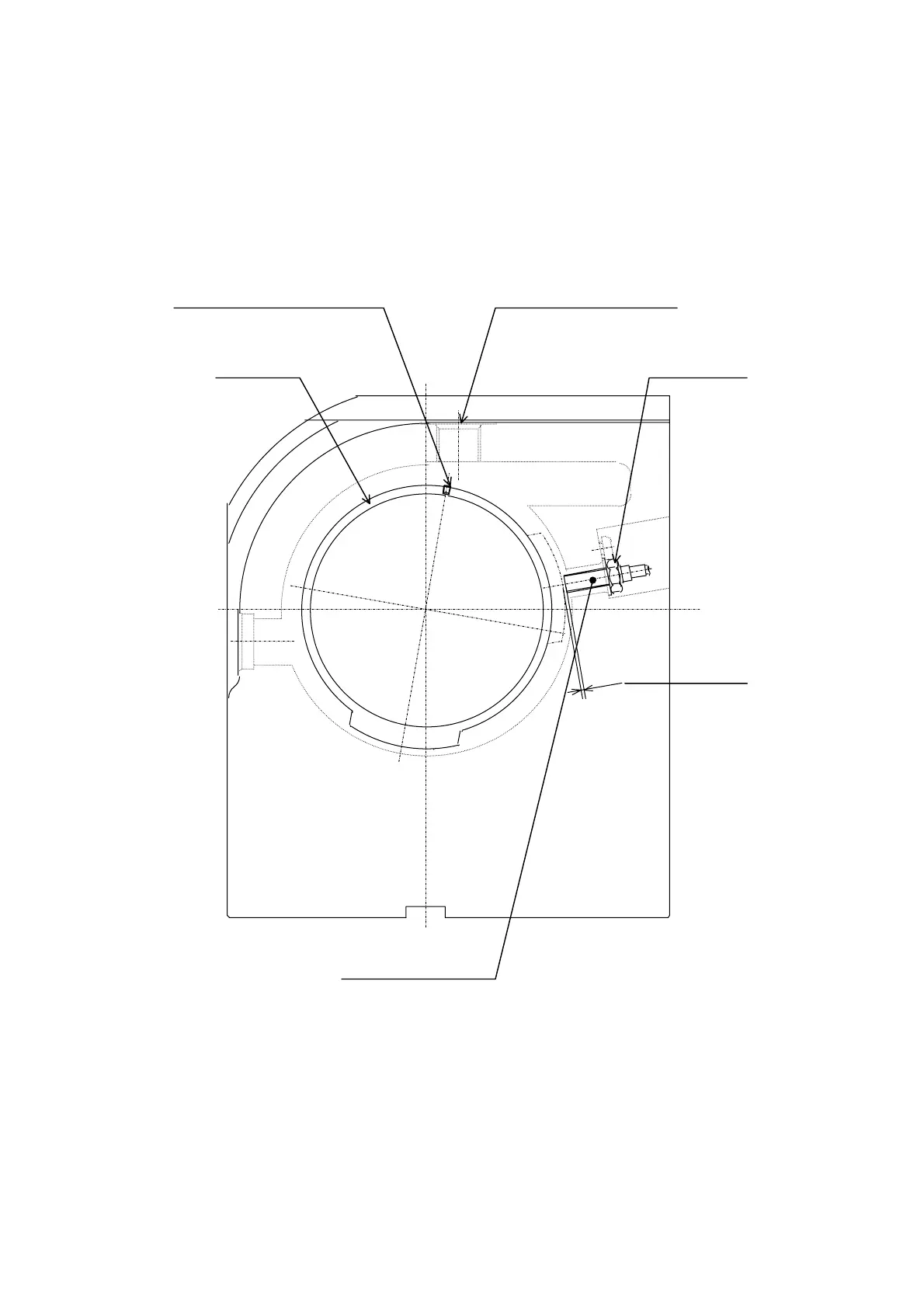

1) Proximity Switch [See Fig.4]
The gap between the dog ③ and the proximity switch ④ should be adjusted to
approximately 0.75mm by the 1.00mm pitch thread provided on the proximity switch ④.
Fig.4
