Kitagawa MR250RAE13 - Page 40

34

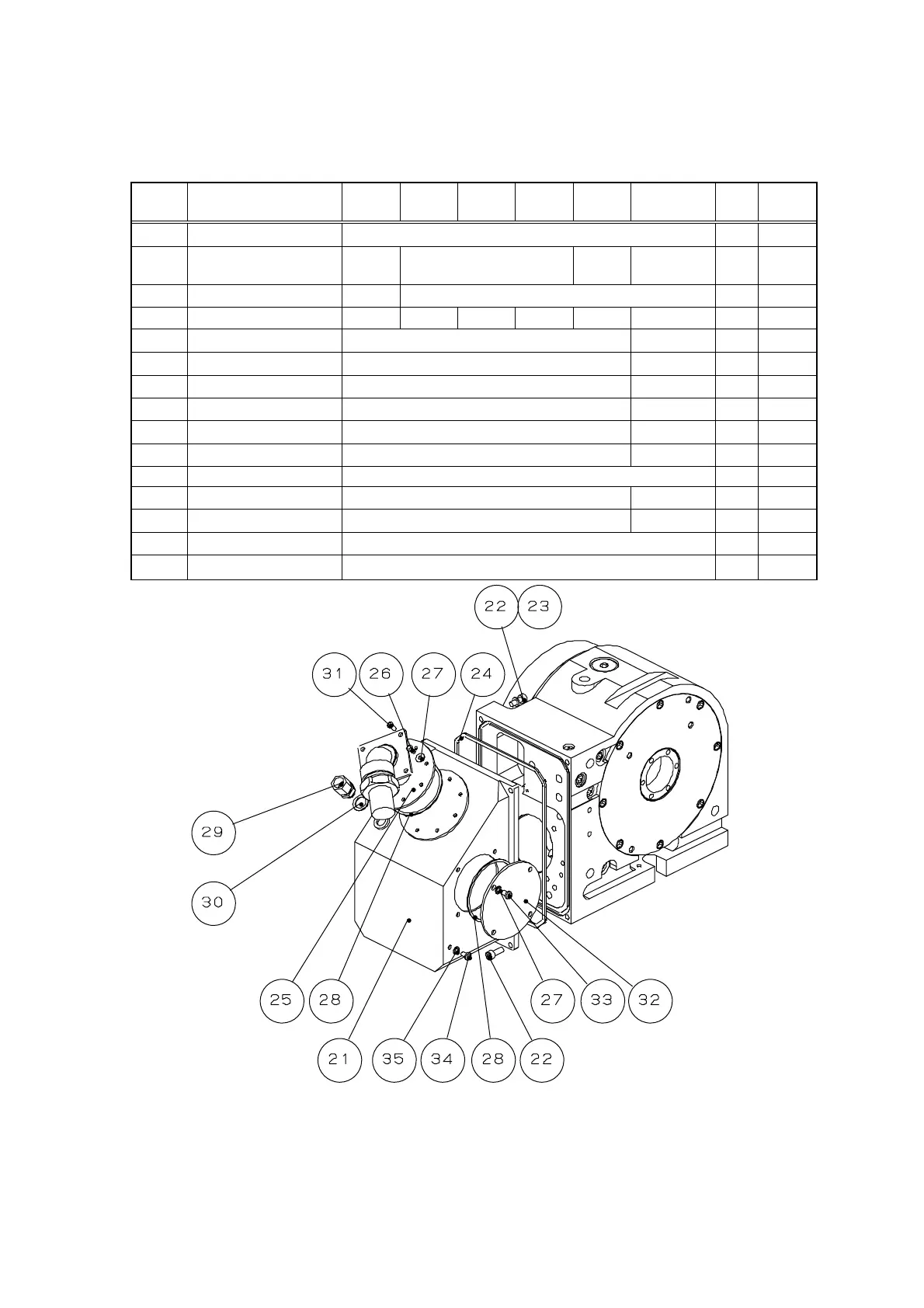

○ Motor Case(For M Signal)
MARK NAME
MR(M)
120
MR(M)
160
MR(M)
200
MR(M)
250
MR(M)
320
MX(M)
160
Q'ty Recital
21 Motor case 1
22
Hexagon socket
head cap screw
M5x20
(4)
M6x16
(4)
M6x16
(6)
M6x16
(4)
(*)
23 Seal washer 5S1
－
1
24 O-ring GS180 GS195 GS210 GS245 GS290 GS195 1
25 Connector plate
－
1
26 Machine screw
－
M5x14 4
27 Seal washer
－
5 8
28 O-ring
－
S112 2
29 Bulkhead connector
－
KQE06-02 1 SMC
30 Seal washer
－
14S1 1
31 Machine screw M4x10 4
32 Cover
－
1
33 Machine screw
－
M5x8 4
34 Machine screw M5x8 1
35 Seal washer 5 1
When the specification is 4th axis, the motor case and the cable are different from the
above figure.
For detailed models, refer to attached outside view.
