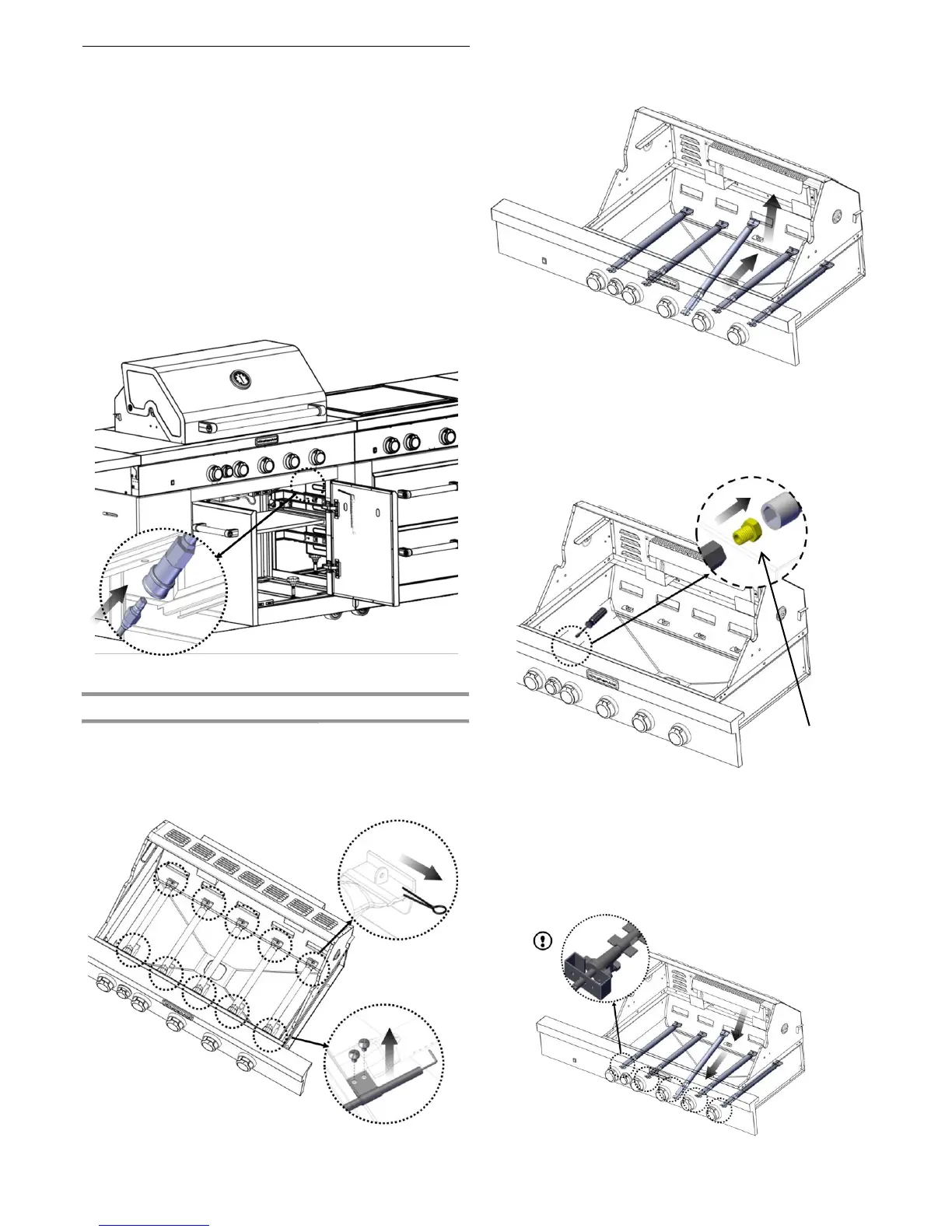

3. Remove the burner from the grill by lifting the burner out.
4. Use a 6 mm socket and wrench or 6 mm nut driver to
remove the LP brass orifice from the end of gas valve. The
main burner NG orifice is located behind the LP orifice, so
no additional orifice needs to be installed.
IMPORTANT: Check that the LP orifice is properly
removed inside of the burner opening.
5. Reinsert the burner and reattach using the cotter clip and
screws previously removed. Repeat the procedure for
each main burner.
6. Position the igniters so they are 3.2 mm / 1/8 in away from
each burner.
Change Grill Main Burner Valve Orifices
1. Remove the grates and flame tamers.
2. Remove the 2 screws and cotter clip that hold the burner in
place. Set the screw and clip aside.
A
A. Main burner orifice
Make Gas Connection
1. A combination of pipe fittings must be used to connect the
grill to the existing gas line.
◼ The 3.0 m / 10 ft PVC flexible gas supply hose design
certified by CSA must be used.
◼ Pipe-joint compounds suitable for use with Natural
gas must be used. Do not use Teflon®+ tape.
◼ There must be a certified manual shut-off valve in the
gas supply line near the grill for easy access.
2. Connect the brass connector on one end of the 3.0 m / 10
ft PVC flexible gas supply hose to the Natural gas pressure
regulator.
3. Connect the quick connector on the other end of the 3.0 m
/ 10 ft PVC flexible gas supply hose to the rigid Natural gas
supply pipe.
26
† ®TEFLON is a registered trademark of Chemours.
