11.Attach side burner orifice brass connector to side burner
tube with preassembled brass screw then tighten by
wrench.
12. Connect electrical plugs on underside of side burner.
13. Insert the valve stem into the knob and push knob into
place.
14
A. Side burner orifice brass connector
B. Side burner tube
A. Control knob
A.Electricalplug from grill
B.Sideburner ignition pin
14.The igniter battery is not factory installed. A’’AA’’
size alkaline battery is located in the accessory
box on the grill grate. Install battery at this time
following the instructions in “Replacing the
igniter Battery’’ section.
A
A. Control knob

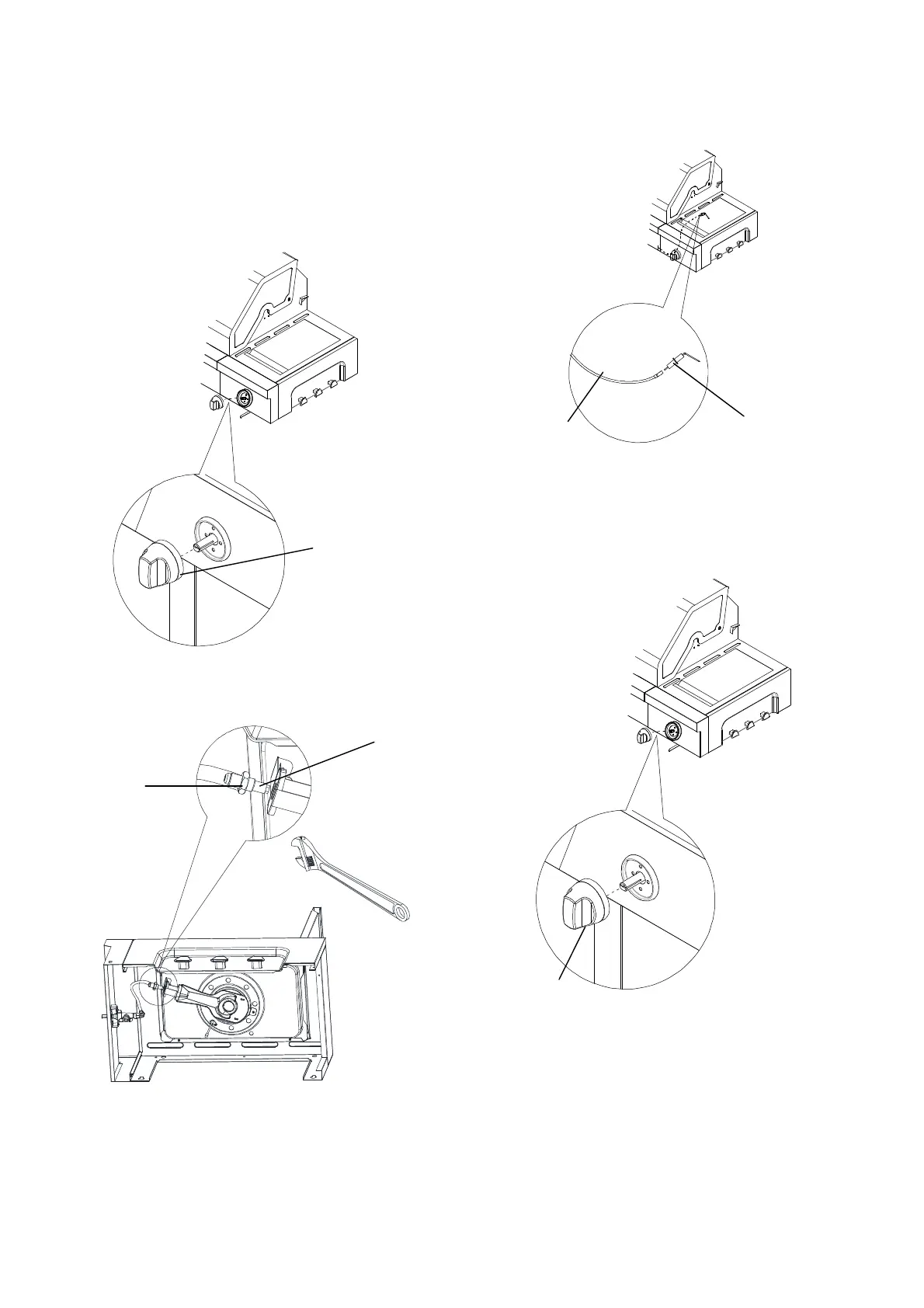

8. Remove the 2 screws from side burner valve assembly. See
illustration step 10.
9. Push the valve stem out through the opening in the front of the
side burner shelf, lining up the holes in the side burner valve
assembly with the openings on the side burner shelf. See
illustration in step 10.
10.Attach the side burner valve assembly to the side burner shelf
with the screws removed in step 8.
BA
A
B
A
