KitchenAid K45SSAC-0 - Base and Pedestal Unit

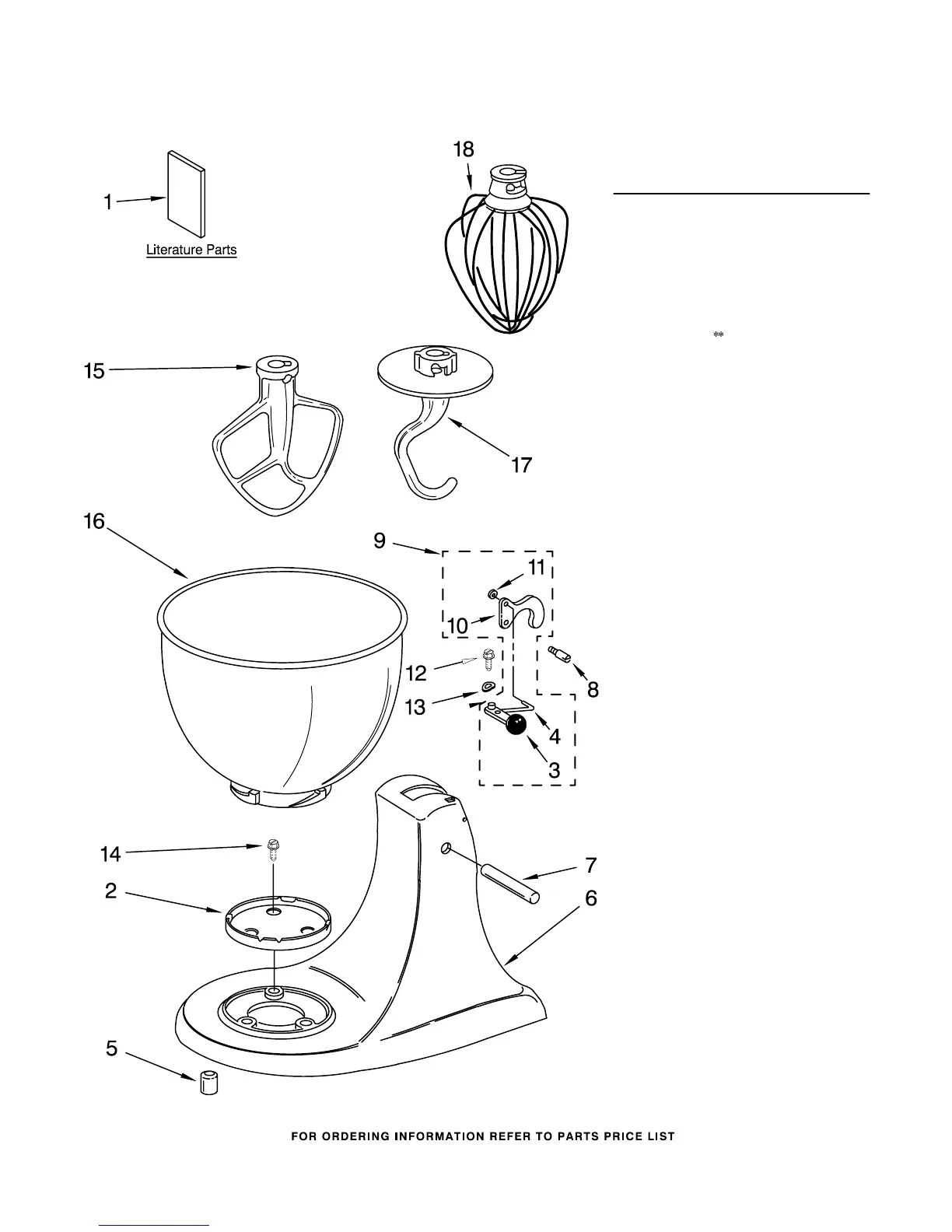

BASE AND PEDESTAL UNIT
3
For Variations of Model: K45SS_ _0
8212369
Illus. Part
No. No. DESCRIPTION
1 Literature
9709648 Use & Care Guide
(Trilingual)
8212369 Repair Parts List
2 4162529 Screw Cap Kit
3 9709280 Lever, Latch
4 24450 Link, Latch
5 4161530 Foot
6
Pedestal
7 16910 Pin, Hinge
8 103993 Screw, Latch
Bearing
9 24452 Latch, Link &
Lever
10 9709055 Latch
11 8533912 Washer
12 110679 Screw
13 116241 Washer, Spring
14 3400020 Screw
15 9708470 Beater, Flat
16 4169926 Bowl And Base
(4 1/2 Qt.)
17 9708471 Dough Hook
18 9706446 Wire Whip
