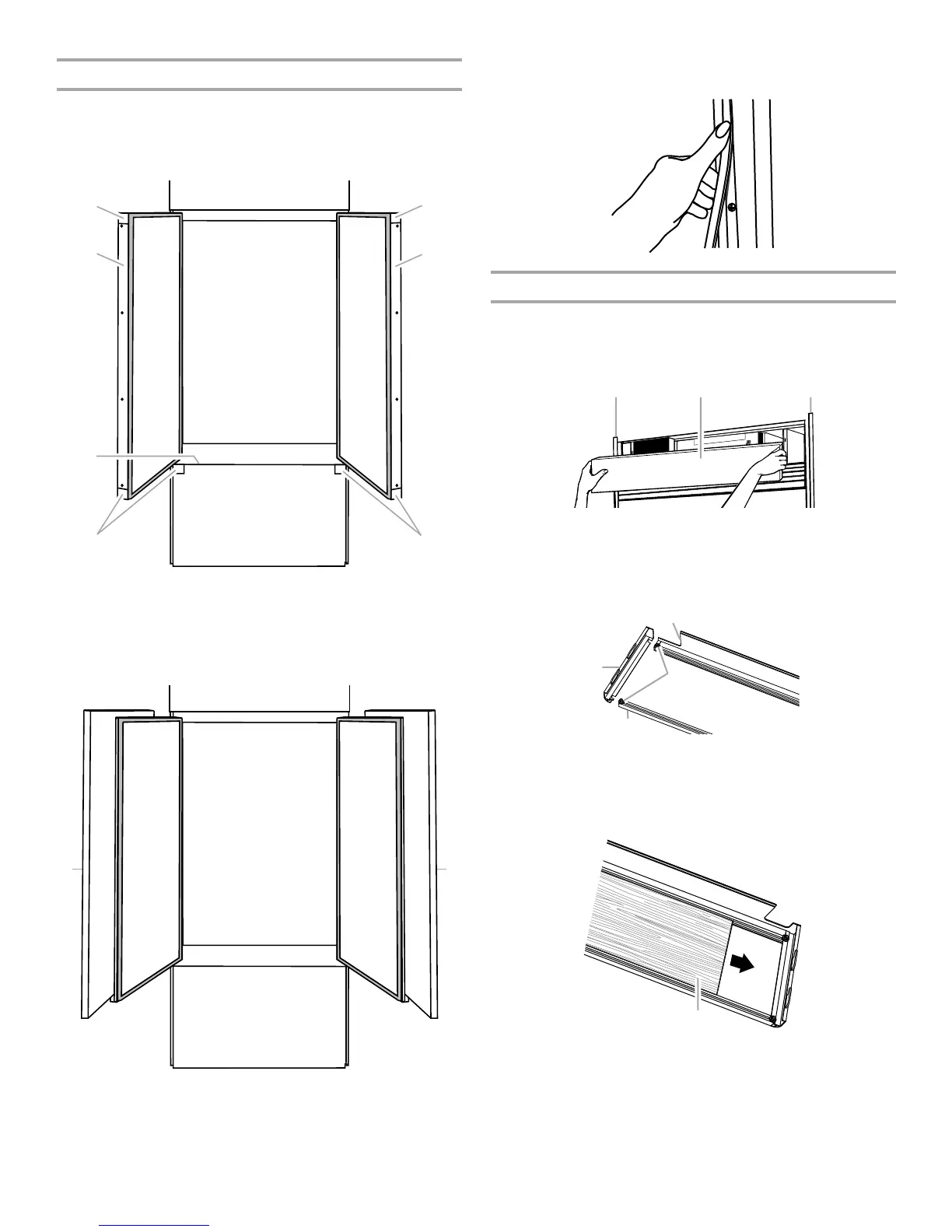

Door Panel Installation
1. Remove all tape and door bracing from the refrigerator
door(s) and freezer drawer.
2. Open the refrigerator door(s) and freezer drawer and remove
the trims and corner caps on each door as shown.
3. Slide the custom panels into the trims on the refrigerator
door(s) and freezer drawer, making sure that the backer panel
fits into the hinge side trims.
4. Reinstall the trims and corner caps.
5. Remove the film from the screw covers. Snap the screw
covers into the handle trim section.
Top Grille Panel
1. Grasp both ends of the top grille.
2. Push straight up; then pull straight out. Place the top grille
panel-side down on a soft working surface.
3. Remove one end cap by loosening the nuts and sliding the
end cap off.
4. Slide the custom panel into the top grille channel and
reattach the end cap.
A. Corner caps
B. Refrigerator door trims
C. Freezer drawer trim
A. Panels
B
A
B
A
C
A
A
AA
A. Top grille
B. Cabinet side trims
A. Bottom rail
B. Nuts
C. End cap
D. Top rail
A. Custom panel
B BA
C
B
A
D
A
