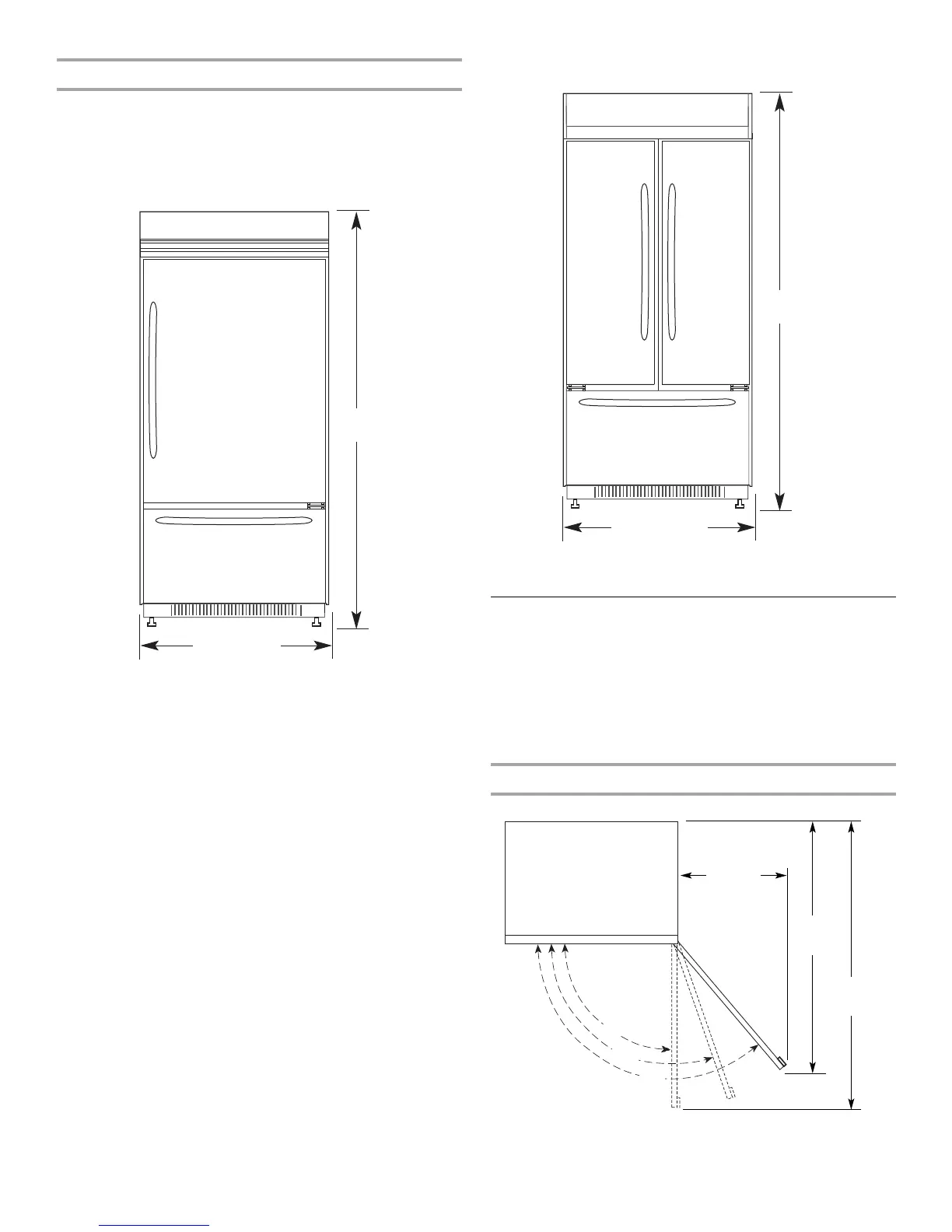

Front View
■ Width dimensions were measured from trim edge to trim
edge.
■ Height dimensions are shown with leveling legs extended
¹⁄₈" (3 mm) below the rollers.
36" (91.4 cm) Models
*When leveling legs are fully extended to 1¹⁄₄" (3.2 cm) below
rollers, add 1¹⁄₈" (2.9 cm) to the height dimensions.
42" (106.7 cm) Models
*When leveling legs are fully extended to 1¹⁄₄" (3.2 cm) below
rollers, add 1¹⁄₈" (2.9 cm) to the height dimensions.
Door Swing Dimensions
The location must permit the door to open to a minimum of 90°.
Allow 5" (12.7 cm) minimum space between the side of the
refrigerator and a corner wall.
NOTE: The required thickness for all panels is ³⁄₄" (1.91 cm). More
clearance may be required if you are using overlay panels or
custom handles.
To adjust the door swing, see “Adjust Door Swing.”
36" (91.4 cm) Single Door Models
36¹¹⁄ " (92.3 cm)
*83³⁄₈"
(211.8 cm)
32
42¹¹⁄ " (107.5 cm)
*83³⁄₈"
(211.8 cm)
32
110˚
90˚
23"
(58 cm)
max.
51"
(130 cm)
59"
(150 cm)
130˚
