ELECTRONIC OVEN CONTROL
This manual covers different models. The oven you have purchased may have some or all of the items listed. The locations and
appearances of the items shown here may not match those of your model.

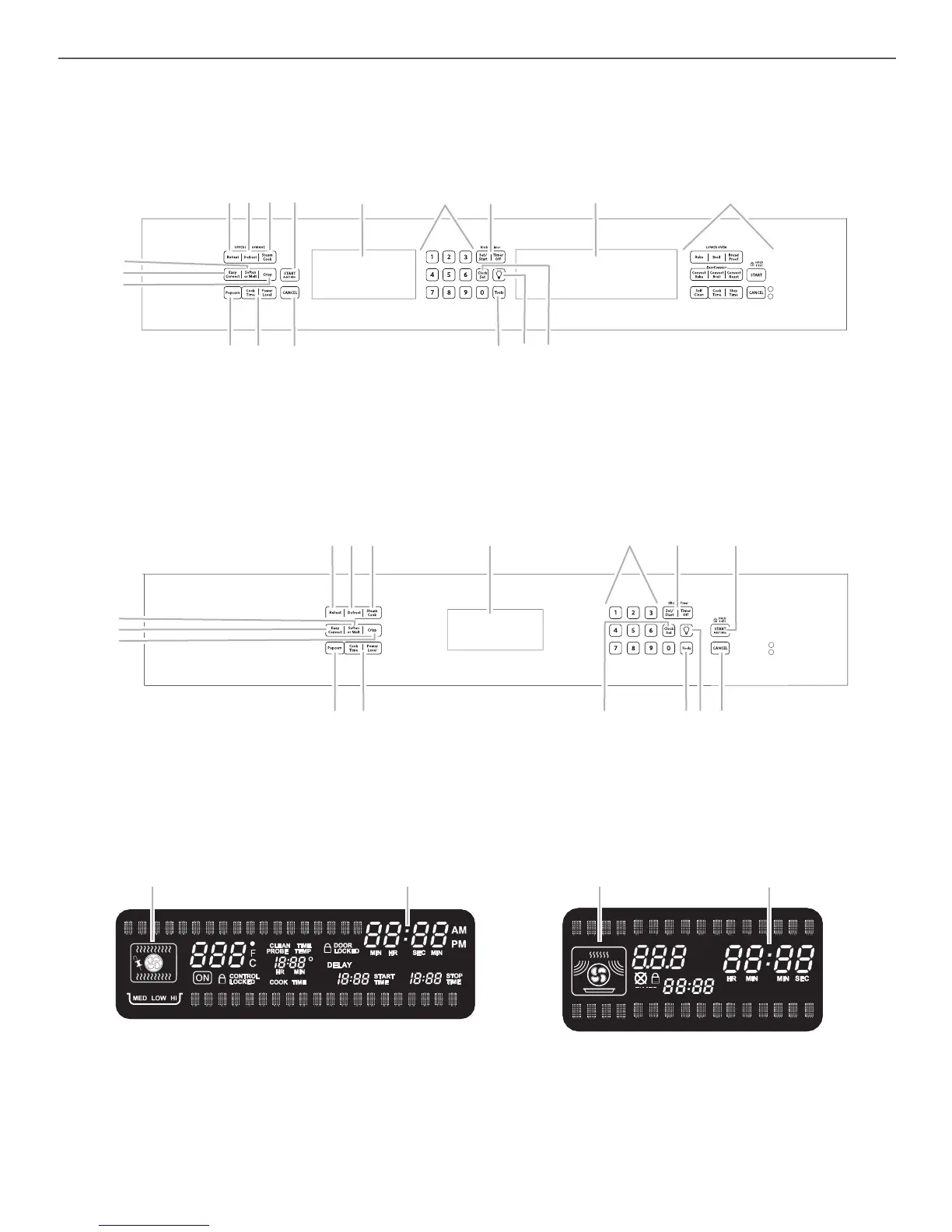

Combination Oven Models
A. Reheat
B. Defrost
C. Steam cook
D. Start/add 1 minute
E. Microwave oven display
F. Number keypads
G. Set/start/timer off
H. Lower oven display
I. Lower oven controls (see separate
Use and Care Guide)
J. Clock set
K. Oven light
L. Tools
M. Cancel
N. Cook time/power level
O. Popcorn
P. C ri s p
Q. EasyConvect™
R. Soften or melt
A. Reheat
B. Defrost
C. Steam cook
D. Microwave oven display
E. Number keypads
F. Set/start/timer off
G. Start/add 1 min
H. Cancel
I. Oven light)
J. Tools
K. Clock set
L. Cook time/power level
M. Popcorn
N. Crisp
O. EasyConvect™
P. Sof t en or m e lt
M
N
O
R
P
Q
A
B C D
E
G
F
H
I
K
J
L
A B C
D
E F G
IK J H
P
N
O
L
M
Lower Oven Display (combination oven models)
A. Oven cavity symbol
B. Time of day/timer display
Upper Microwave Oven Display (combination oven models)
A. Microwave cavity symbol
B. Timer display
Microwave Oven Display (single oven models)
A. Microwave cavity symbol
B. Time of day/timer display
