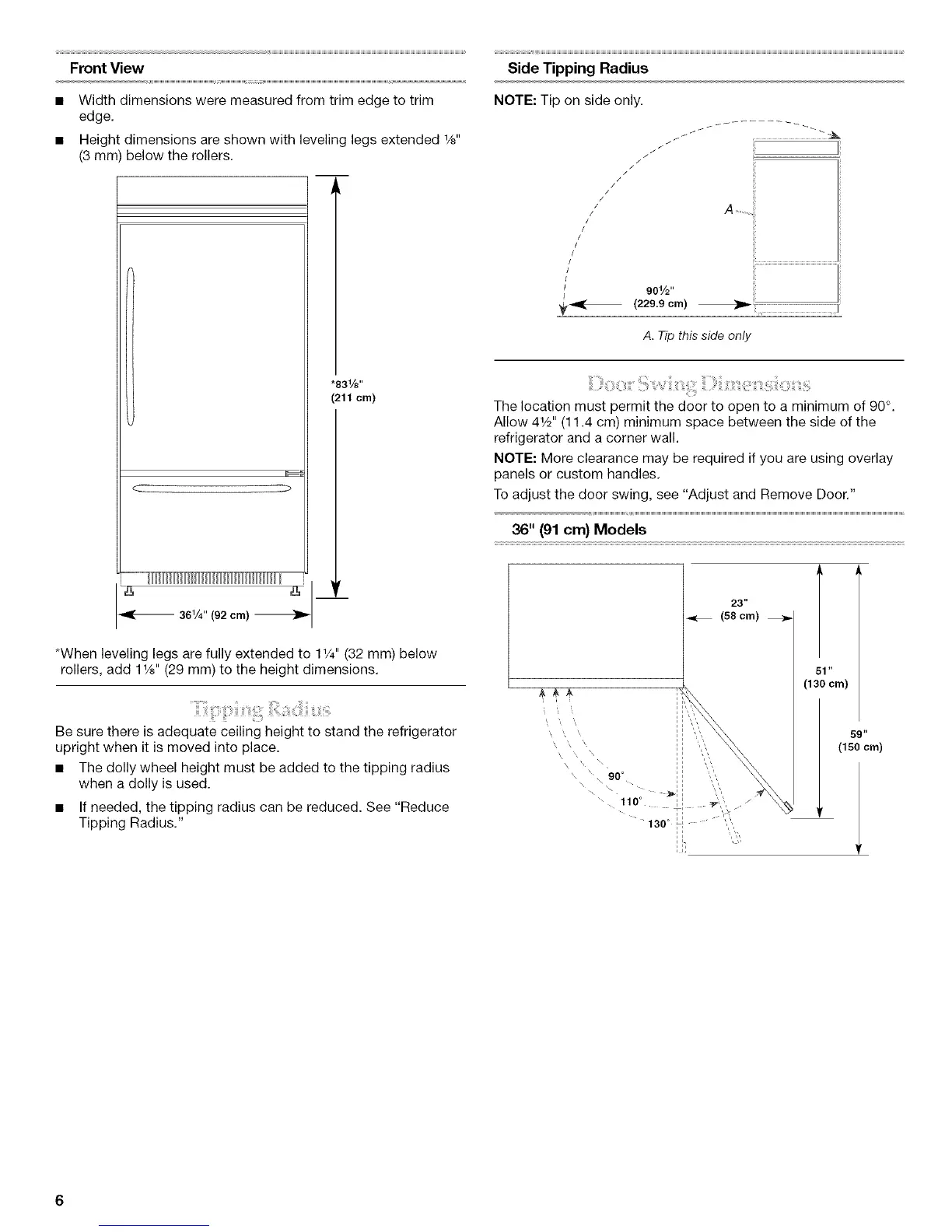

Front View
Width dimensions were measured from trim edge to trim
edge.
Height dimensions are shown with leveling legs extended 1/8"
(3 mm) below the rollers.
>
IIIIIIIIIIIllllllllllllllllllll_
-- 361/4" (92 cm)
"831/8"
(211 cm)
*When leveling legs are fully extended to 11/4"(32 mm) below
rollers, add 11/8"(29 mm) to the height dimensions.
Be sure there is adequate ceiling height to stand the refrigerator
upright when it is moved into place.
• The dolly wheel height must be added to the tipping radius
when a dolly is used.
• If needed, the tipping radius can be reduced. See "Reduce
Tipping Radius."
Side Tipping Radius
NOTE: Tip on side only.
%,,
901/2 ''
,_ (229.9 cm)
A. Tip this side only
The location must permit the door to open to a minimum of 90°.
Allow 41/2'' (11.4 cm) minimum space between the side of the
refrigerator and a corner wall.
NOTE: More clearance may be required if you are using overlay
panels or custom handles.
To adjust the door swing, see "Adjust and Remove Door."
36" (91 cm} Models
23"
_. (58cm)
51 "
(130 cm)
59"
(150 cm)
