Parts that
must be
ordered
separately or
custom made
The custom panel weight must NOT
exceed amounts listed.
Panels weighing more than amounts
listed may cause product damage.
A
C
E
D
F
B
Refrigerator door
panel
Maximum
weight:
60 pounds
(27 kg)
Freezer
door panel
Maximum
weight:
20 pounds
(9 kg)
Page 5
Top grille panel
maximum
weight
10 pounds
(4.5 kg)
NOTE: Dimensions shown have a
±1/16 (1.5 mm) tolerance. Panels
that are more than 1/4" (6 mm) thick
must be routed. If using routed
panels, add 1/16" (1.5 mm) to
dimensions shown.
If panels are less than 1/4" (6 mm)
thick, install a filler panel between
doors and decorative panels.
72" stainless steel Panel kit, Part number 4392934, is for wraparound stainless
steel door models only. It allows 2 units (one left-hand swing and one right-hand
swing) to be installed side by side with a single grille.

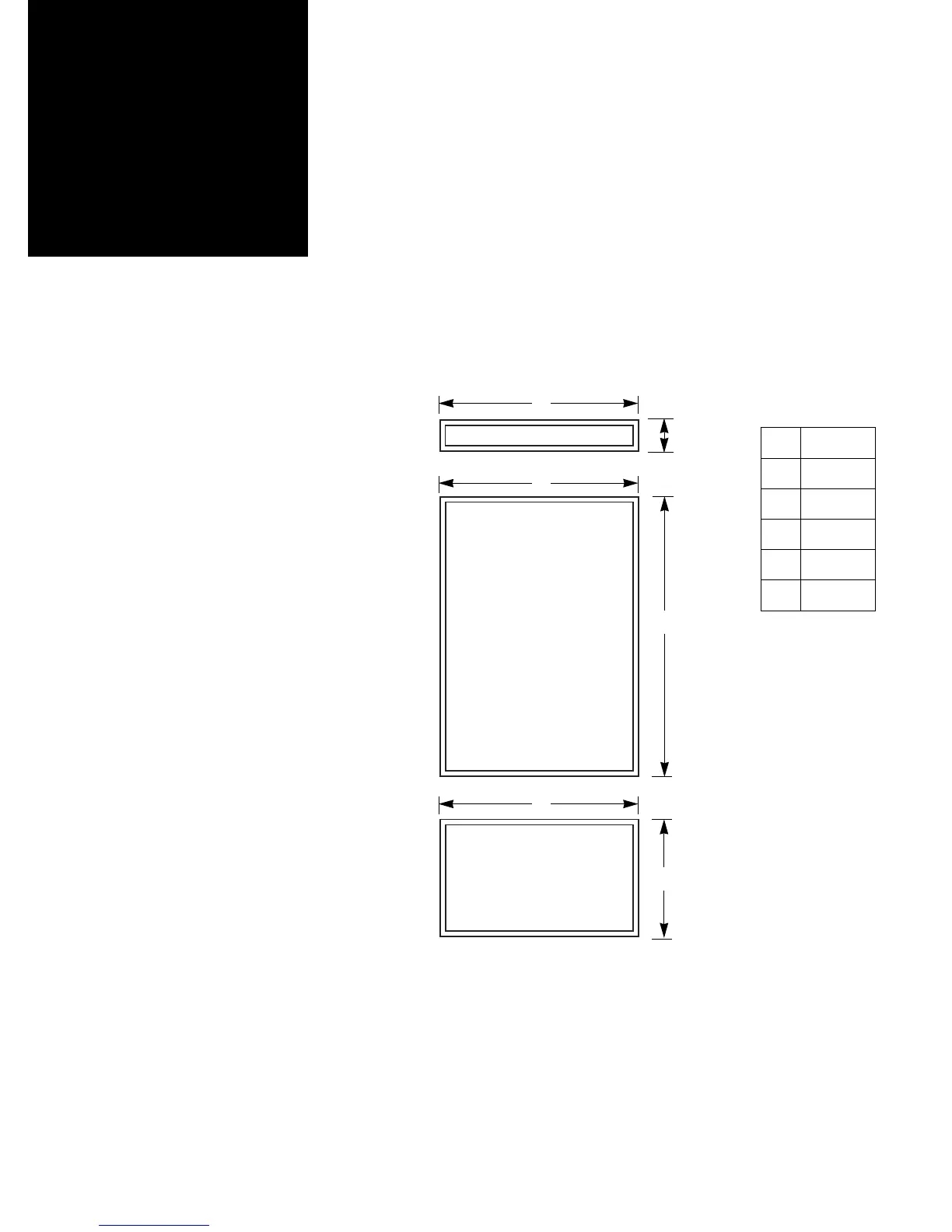

A
B
C
D
E
F
35-11/16"
(90.7 cm)
5-3/8"
(13.7 cm)
34-1/4"
(87 cm)
49"
(124.5 cm)
34-1/4"
(87 cm)
20-1/4"
(51.4 cm)
