Refrigerator
door
130°
59"
(150 cm)
51"
(130 cm)

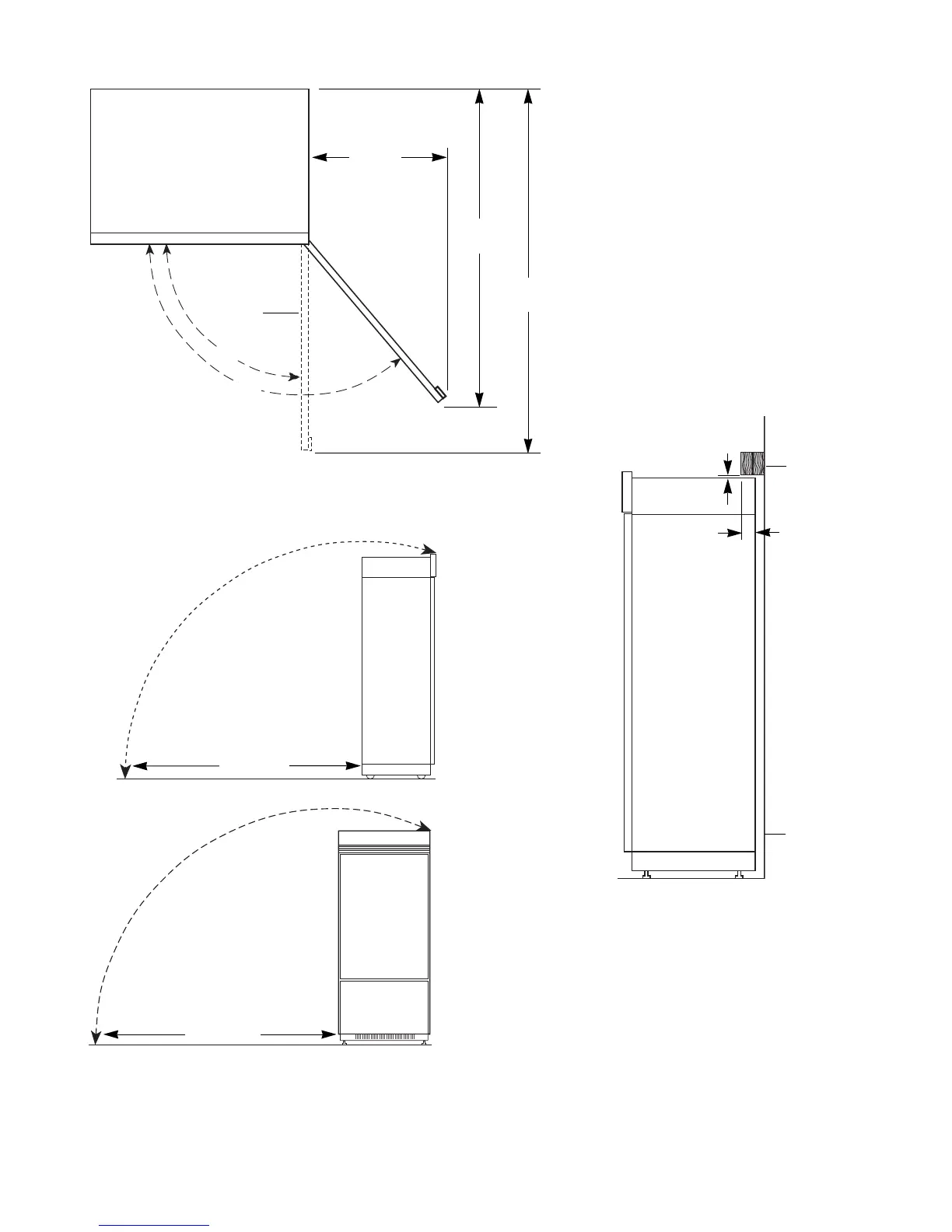

Door swing dimensions
If boards are placed before installation of
refrigerator, locate boards so the bottom surface of
the boards are 84 inches (213 cm) from the floor.
During installation, raise the refrigerator up so there
is 1/4 inch (6 mm) maximum between top of
refrigerator and bottom of anti-tip boards.
If solid soffit is 1 inch (2.5 cm) above
refrigerator, anti-tip wood boards are not required.
If solid soffit is not available or soffit is more than
1 inch (2.5 cm) above cover, center wood boards
on rear wall 1/4 inch (6 mm) maximum above
refrigerator. Attach wood boards to wall studs with
wood screws — making sure that screws are
engaged in wall studs 1-1/2 inch (3.8 cm) minimum
and that boards extend 2 inches (5 cm) minimum
over the top rear of refrigerator compressor cover.
Two, 2" x 4" x
32" (5 cm x
10 cm x 81 cm)
anti-tip wood
boards
Attach to wall
studs with six,
#8 x 3" (76 mm)
(or longer)
wood screws.
Boards must be
long enough to
fully cover
width of
compressor
cover.
1/4" (6 mm) max.
2" (5 cm)
min.
rear
wall
Page 4
Anti-tip requirements
Tipping radius
Forward/backward
tipping radius
Side
tipping radius
87-1/4"
(222 cm)
90-1/2"
(230 cm)
Location must permit doors to open to
90° min. For panel models, allow 1 inch
(2.5 cm) min. space between refrigerator
side and corner wall. For wraparound
stainless steel models, allow 4-1/2 inch
(11.5 cm) min. space between
refrigerator side and corner wall.
23"
(58 cm)
90°
To Next Page
