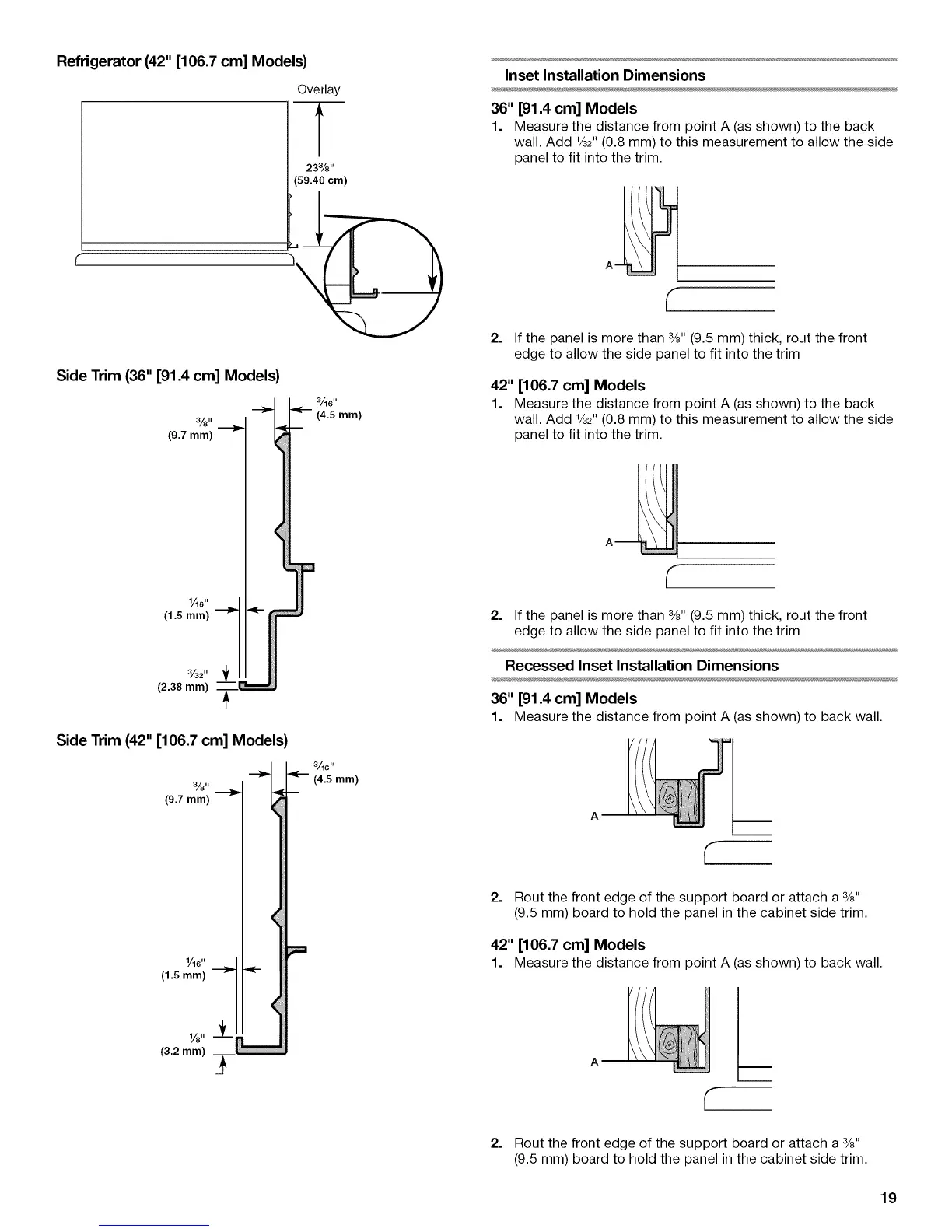

KitchenAid KBLO36FTX08 - Page 19

Refrigerator (42" [106.7 cm] Models)
Overlay
233/8''
(59.40 cm)
Side Trim (36" [91.4 cm] Models)
3'/8"
(9.7 mm)
1_611
(1.5 mm)
3/32"
(2.38 mm)
Side Trim (42" [106.7 cm] Models)
%. --_ L=_ 3/16''
I_ (4.5 mm)
(9.7 mm)
1,/16"
(1.5 mm)
(3.2 mm)
Inset Installation Dimensions
36" [91.4 cm] Models
1. Measure the distance from point A (as shown) to the back
wall. Add 1/32"(0.8 mm) to this measurement to allow the side
panel to fit into the trim.
(-
2. If the panel is more than 3/8"(9.5 mm) thick, rout the front
edge to allow the side panel to fit into the trim
42" [106.7 cm] Models
1. Measure the distance from point A (as shown) to the back
wall. Add 1/32"(0.8 mm) to this measurement to allow the side
panel to fit into the trim.
2. If the panel is more than 3/8"(9.5 mm) thick, rout the front
edge to allow the side panel to fit into the trim
Recessed Inset Installation Dimensions
36" [91.4 cm] Models
1. Measure the distance from point A (as shown) to back wall.
2. Rout the front edge of the support board or attach a 3/8"
(9.5 mm) board to hold the panel in the cabinet side trim.
42" [106.7 cm] Models
1. Measure the distance from point A (as shown) to back wall.
A m
2. Rout the front edge of the support board or attach a 3/8"
(9.5 mm) board to hold the panel in the cabinet side trim.
19
