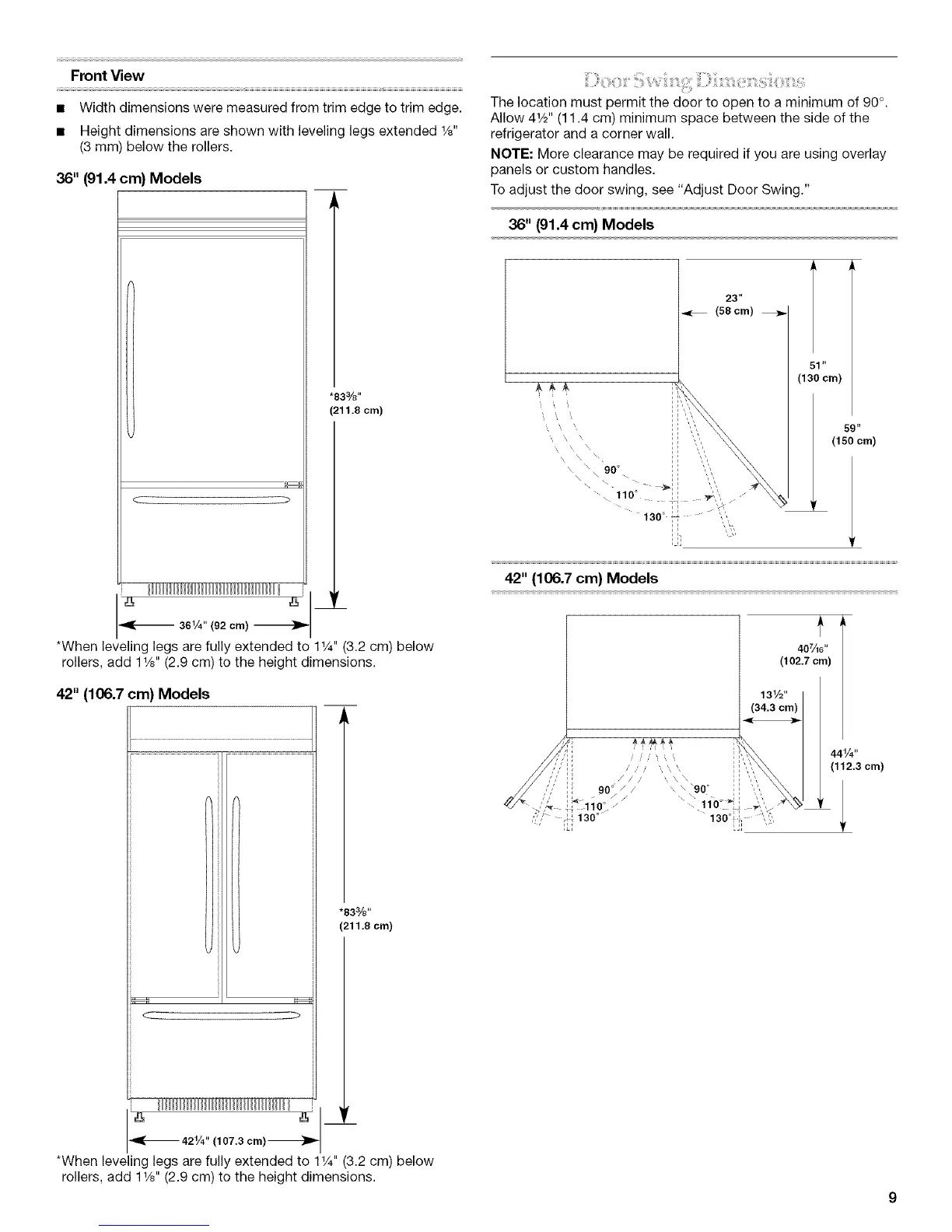

Front View
• Width dimensions were measured from trim edge to trim edge.
• Height dimensions are shown with leveling legs extended 1/8"
(3 mm) below the rollers.
36" (91.4 cm) Models
.833/8 ''
(211.8 cm)
IIIIIIIIIIIIHHHHHHHHHHHHI _
-- 361/4'' (92 cm)
*When leveling legs are fully extended to 11/4"(3.2 cm) below
rollers, add 11/8"(2.9 cm) to the height dimensions.
42" (106.7 cm) Models
I
"_-_ 421/4'' (107.3 cm)_
.833/8 ''
(211.8 cm)
L
*When leveling legs are fully extended to 11/4"(3.2 cm) below
rollers, add 11/8"(2.9 cm) to the height dimensions.
The location must permit the door to open to a minimum of 90°.
Allow 41/2'' (11.4 cm) minimum space between the side of the
refrigerator and a corner wall,
NOTE: More clearance may be required if you are using overlay
panels or custom handles.
To adjust the door swing, see "Adjust Door Swing."
36" (91.4 cm} Models
23"
_. (58cm)
51 "
(130 cm)
59"
(150cm)
42" (106.7 cm) Models
407_6"
(102.7 cm)
441/4,,
(112.3 cm)
