KitchenAid KDRP462 - Page 7

7

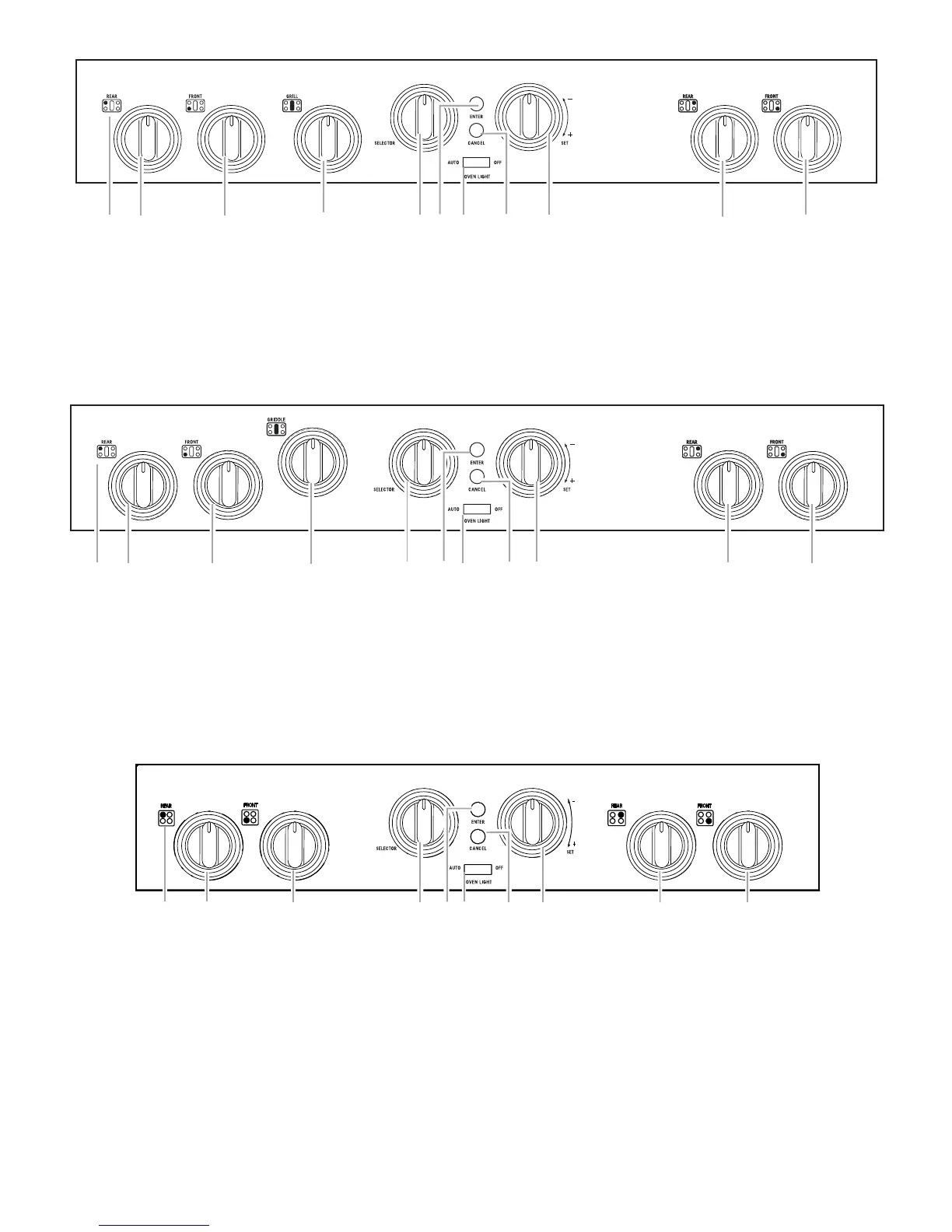

30" (76.2 cm) Control Panel
Cooktop
A. Surface burner locator
B. Left rear control knob (15,000 Btu/h)
C Left front control knob (6,000 Btu/h)
D. Griddle control knob (18,000 Btu/h)
Oven
E. Selector knob
F. Enter button
G. Oven light switch
H. Cancel button
I. Set knob
Cooktop
J. Right rear control knob (15,000 Btu/h)
K. Right front control knob (6,000 Btu/h)
Cooktop
A. Surface burner locator
B. Left rear control knob (15,000 Btu/h)
C Left front control knob (6,000 Btu/h)
D. Griddle control knob (15,000 Btu/h)
Oven
E. Selector knob
F. Enter button
G. Oven light switch
H. Cancel button
I. Set knob
Cooktop
J. Right rear control knob (15,000 Btu/h)
K. Right front control knob (6,000 Btu/h)
G
F
H
A
B
C
D
E I
J
K
A
BC D
G
F
H
EI
JK
Cooktop
A. Surface burner locator
B. Left rear control knob (15,000 Btu/h)
C Left front control knob (15,000 Btu/h)
Oven
D. Selector knob
E. Enter button
F. Oven light switch
G. Cancel button
H.Set knob
Cooktop
I. Right rear control knob (15,000 Btu/h)
J. Right front control knob (15,000 Btu/h)
AB C DE
F
GH I J
