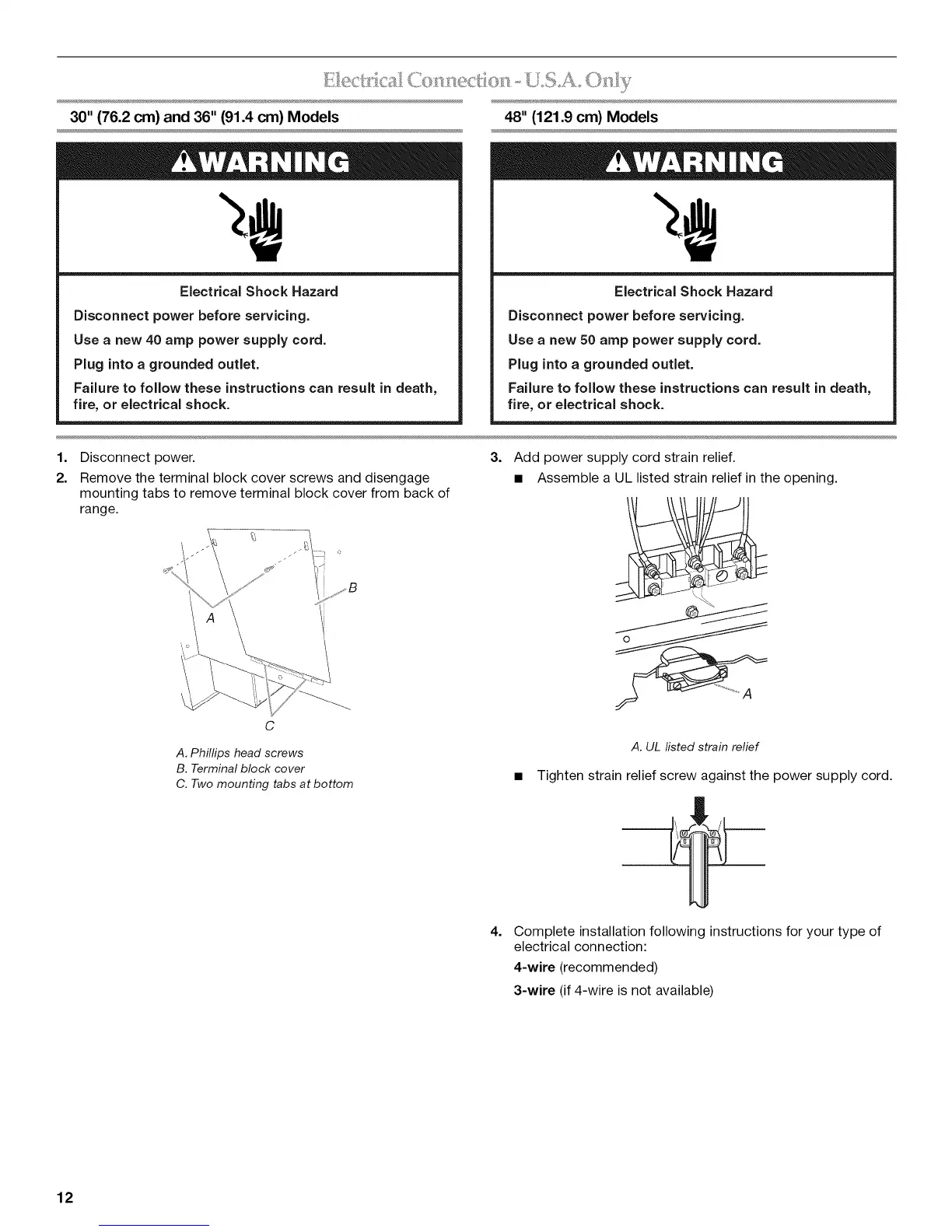

KitchenAid KDRU707VSS01 - Electrical Connection - U.S.A. Only

_"4 : [_'_d'_ "q F_'_
l,,le+,,..l _[,;_;_(_}_:S_SeC_ Oss I Is,41s
30" (76.2 cm) and 36" (91.4 cm) Models
Electrical Shock Hazard
Disconnect power before servicing.
Use a new 40 amp power supply cord.
Plug into a grounded outlet.
Failure to follow these instructions can result in death,
fire, or electrical shock.
48" (121.9 cm) Models
Electrical Shock Hazard
Disconnect power before servicing.
Use a new 50 amp power supply cord.
Plug into a grounded outlet.
Failure to follow these instructions can result in death,
fire, or electrical shock.
1. Disconnect power. 3.
2. Remove the terminal block cover screws and disengage
mounting tabs to remove terminal block cover from back of
range.
C
Add power supply cord strain relief.
• Assemble a UL listed strain relief in the opening.
A. Phillips head screws
B. Terminal block cover
C. Two mounting tabs at bottom
A. UL listed strain relief
• Tighten strain relief screw against the power supply cord.
4.
Complete installation following instructions for your type of
electrical connection:
4-wire (recommended)
3-wire (if 4-wire is not available)
12
