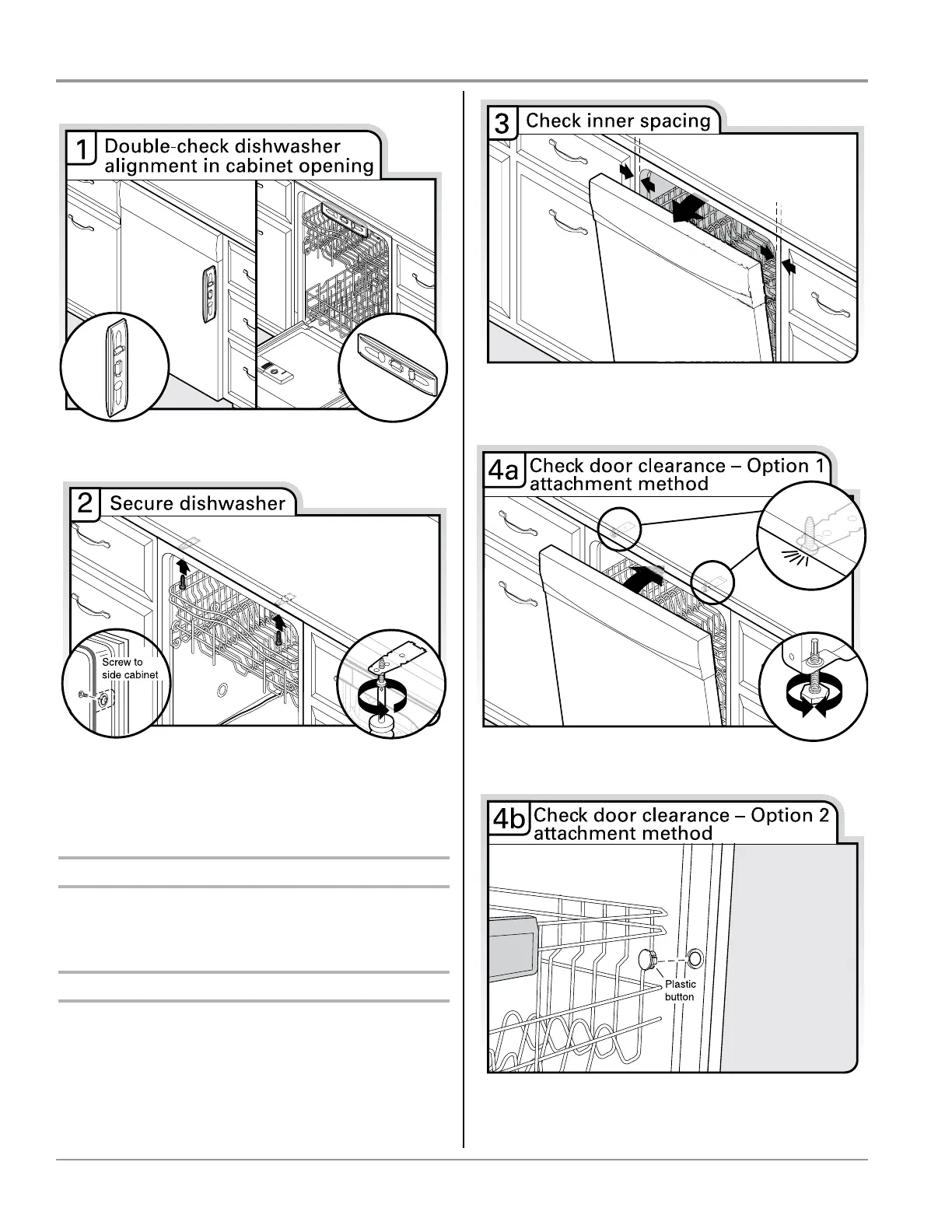

Secure Dishwasher in Cabinet Opening
Check that dishwasher is still level front-to-back and side-to-side
in cabinet opening.
Open dishwasher door to prepare for securing the dishwasher to
the cabinet.
NOTES:
■ The dishwasher must be secured to keep it from shifting when
the door is opened.
■ Do not drop screws into bottom of dishwasher.
Option 1 - Secure Dishwasher To Countertop.
■ Locate brackets installed on top of dishwasher (during
Choose Attachment Method)
■ Secure dishwasher to countertop with two, #10 x ½" Phillips-
head screws (included).
Option 2 - Side Mount Dishwasher To Cabinet.
■ Locate brackets installed on sides of dishwasher (during
Choose Attachment Method).
■ Drill pilot holes in cabinet to avoid splitting the wood .
■ Secure dishwasher to cabinet with two, #10 x ½" Phillips-
head screws (included).
Open door and check that space between dishwasher cabinet
opening and tub is equal on both sides. If spacing is not equal,
loosen bracket screws and shift tub. Tighten bracket screws
Check that top of door does not contact screws, brackets or
countertop. If it does, adjust leveling legs.
If securing with a side attachment, check that sides of door do
not
rub against the screw heads. If they do, dishwasher must be
re-centered. When dishwasher is properly centered, replace
plastic buttons.

KitchenAid KDTM504EPA Specifications

General

Style	built-in dishwashers
Color	custom panel ready, custom
Load Capacity	16
Number of Cycles	6
Cycle Selections	express wash, light/china, normal, prowash, rinse only, tough
Options/Settings	4 hour delay, control lock, hi temp wash, prodry, proscrub, sani rinse, top rack wash
Drying Type	heated drying
Noise level	44 decibels adjusted
Control Type	touchpad
Delay Start	yes
Child Lock	yes
Load Sensor	yes
Number of Racks	3
Cycle Signal	no
Water Filter	yes
Water Softener	no
Food Disposer	no
Sanitize Settings	yes
Annual Energy Consumption	270 kilowatt hours
Water Consumption Per Cycle	7.9 gallons
Voltage	120 volts
Current	20 amperes

Weight and Dimensions

Depth	23 13/16 inches
Height	34 1/2 inches
Width	23 7/8 inches
Net Weight	113 pounds
