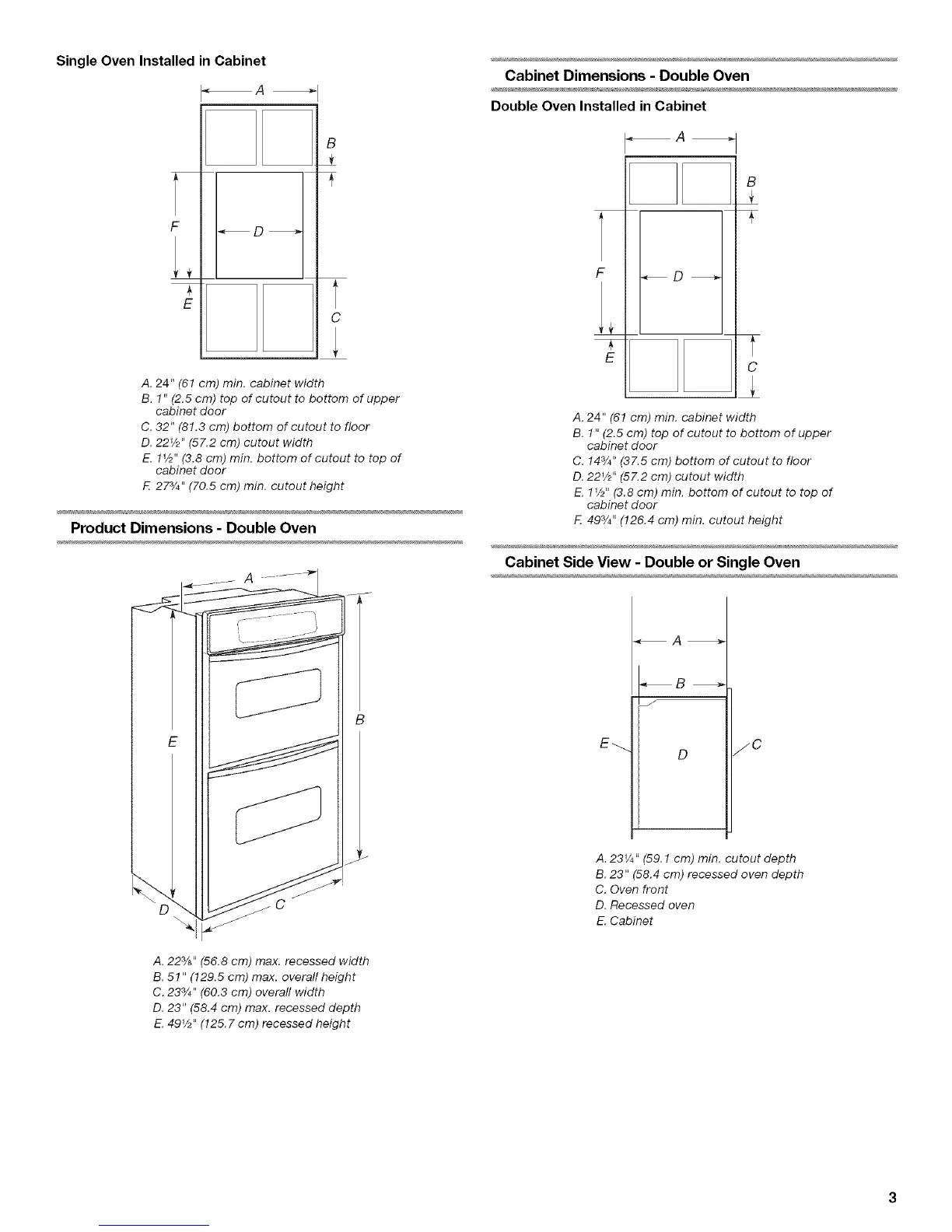

KitchenAid KEBC247VSS02 - Product Dimensions - Double Oven; Cabinet Dimensions - Double Oven; Cabinet Side View - Double or Single Oven; Single Oven Installed in Cabinet

Single Oven Installed in Cabinet
F D_
E
C
A. 24" (61 cm) min. cabinet width
B. 1" (2.5 cm) top of cutout to bottom of upper
cabinet door
C. 32" (8!.3 cm) bottom of cutout to floor
D. 221/2'' (57.2 cm) cutout width
E. 1V2"(3.8 cm) min. bottom of cutout to top of
cabinet door
F. 273/4" (70.5 cm) min. cutout height
Product Dimensions - Double Oven
E
D
Cabinet Dimensions - Double Oven
Double Oven Installed in Cabinet
F
T
E
_A
B
_D_
C
A. 24" (61 cm) min. cabinet width
B. 1" (2.5 cm) top of cutout to bottom of upper
cabinet door
C. 143/4"(37.5 cm) bottom of cutout to floor
D.22V2" (57.2 cm) cutout width
E. 1V2" (3.8 cm) min. bottom of cutout to top of
cabinet door
F. 493/4``(126.4 cm) min. cutout height
Cabinet Side View - Double or Single Oven
A. 23V4" (59.1 cm) min. cutout depth
B. 23" (58.4 cm) recessed oven depth
C. Oven front
D. Recessed oven
E. Cabinet
A. 22¾" (56.8 cm) max. recessed width
B. 51" (129.5 cm) max. overall height
C. 233/4" (60.3 cm) overall width
D. 23" (58.4 cm) max. recessed depth
E. 49V2" (125.7 cm) recessed height
