KitchenAid KFCO22EVBL00 - Freezer Door Parts; Freezer Door Assembly and Trim; Freezer Door Gasket; Freezer Door Trim Pieces

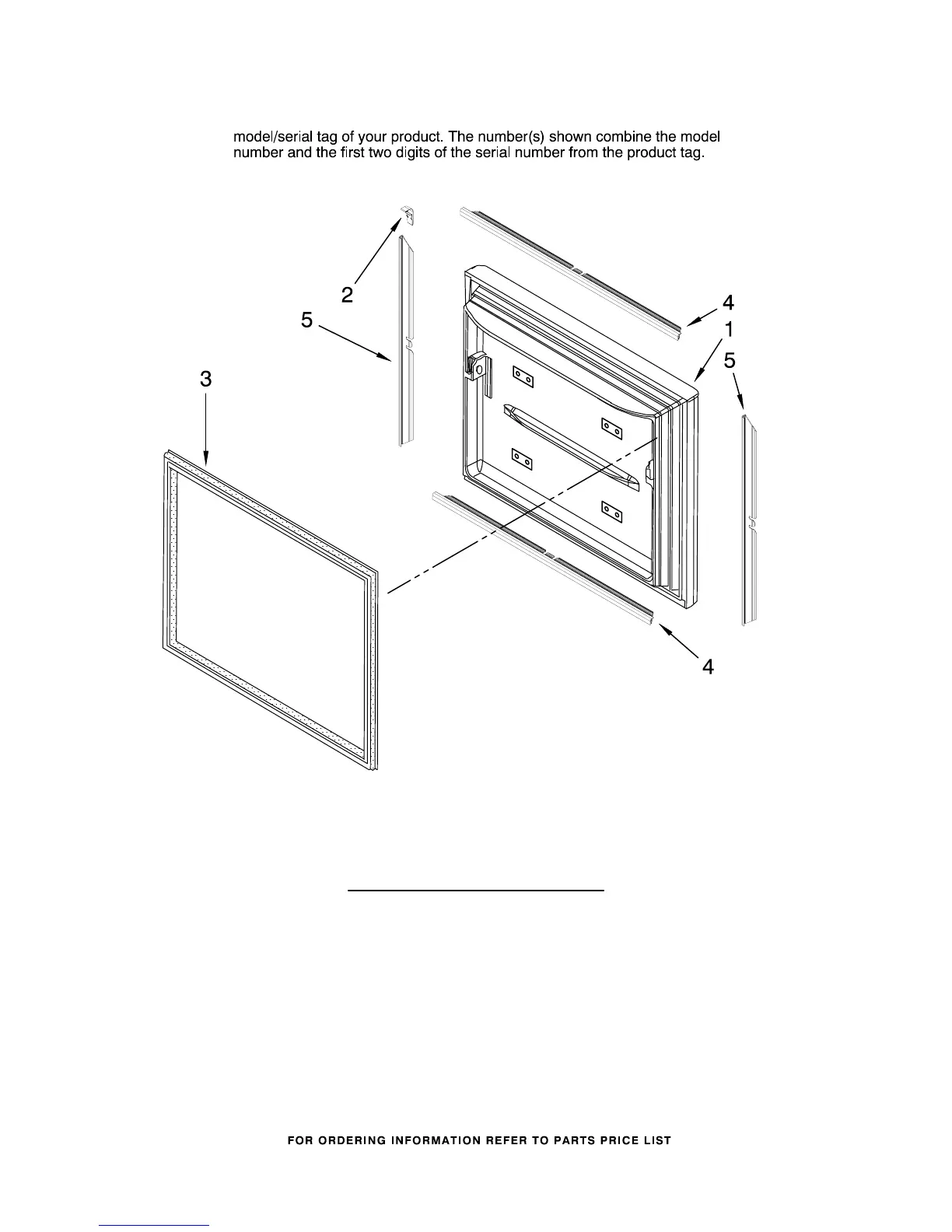

FREEZER DOOR PARTS
15
For Models: KFCO22EVBL00
(Black Overlay)
The model(s) number shown may be different than what is printed on the
W10217727
Illus. Part
No. No. DESCRIPTION
1 Door, Freezer
13094902BQ Black
2
W10150034 Clip, Trim (4)
3 Gasket, Door
W10164041 Black
4
W10130133 Trim, Top / Bottom
5
W10130137 Trim, Side
