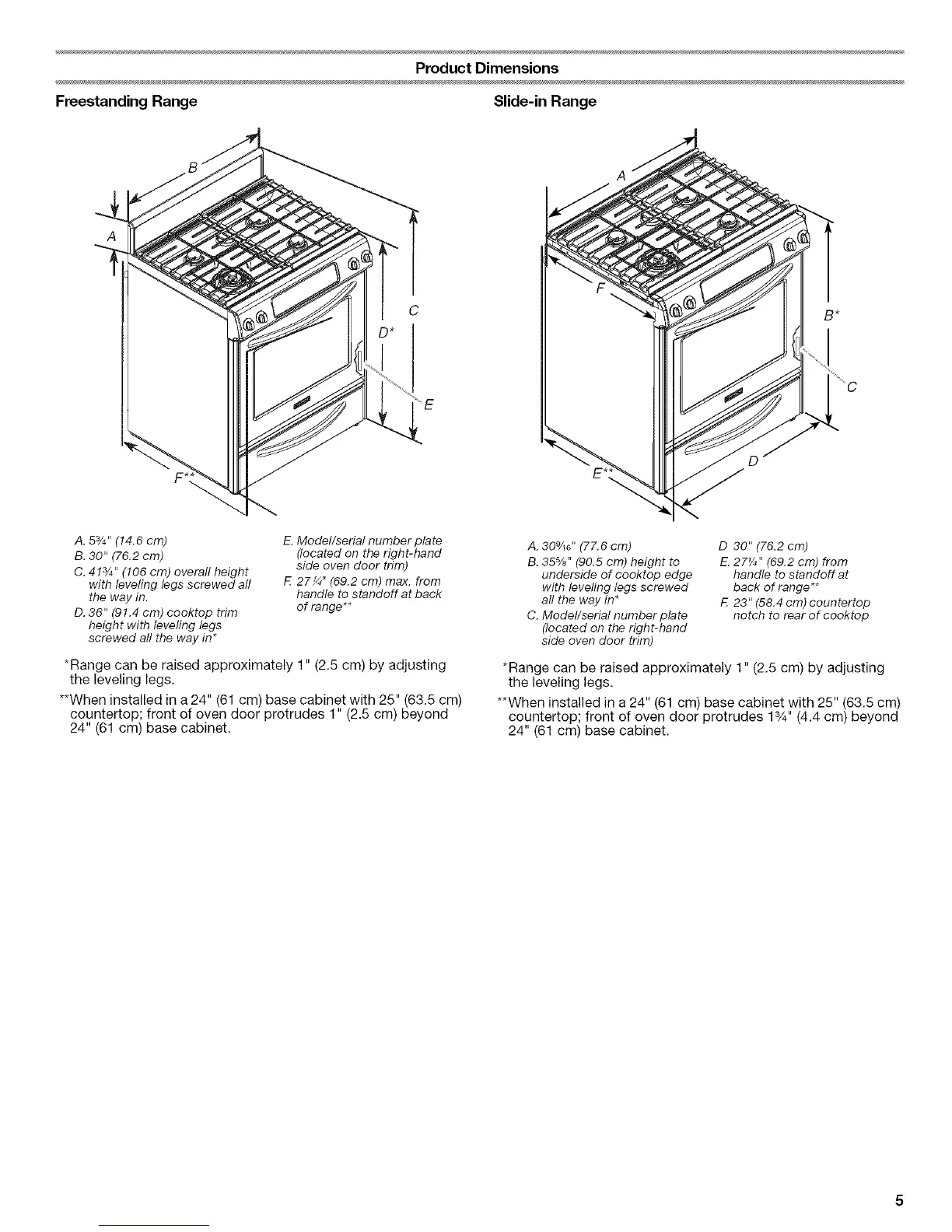

Product Dimensions
Freestanding Range Slide-in Range
C
A. 53/4"(14.6 cm)
B. 30" (76.2 cm)
C. 41¾" (106 cm) overall height
with leveling legs screwed all
the way in.
D. 36" (91.4 cm) cooktop trim
height with leveling legs
screwed all the way in*
E. Model/serial number plate
(located on the right-hand
side oven door trim)
F. 27_" (69.2 cm) max. from
handle to standoff at back
of range **
*Range can be raised approximately 1" (2.5 cm) by adjusting
the leveling legs.
**When installed in a 24" (61 cm) base cabinet with 25" (63.5 cm)
countertop; front of oven door protrudes 1" (2.5 cm) beyond
24" (61 cm) base cabinet.
A. 30%e" (77.6 cm)
B. 355/8'' (90.5 cm) height to
underside of cooktop edge
with levering legs screwed
all the way in*
C. Model/serial number plate
(located on the right-hand
side oven door trim)
D 30" (76.2 cm)
E, 27_/4" (69.2 cm) from
handle to standoff at
back of range**
F. 23" (58.4 cm) countertop
notch to rear of cooktop
*Range can be raised approximately 1" (2.5 cm) by adjusting
the leveling legs.
**When installed in a 24" (61 cm) base cabinet with 25" (63.5 cm)
countertop; front of oven door protrudes 13/4'' (4.4 cm) beyond
24" (61 cm) base cabinet.
