KitchenAid KHMS 105 - Page 11

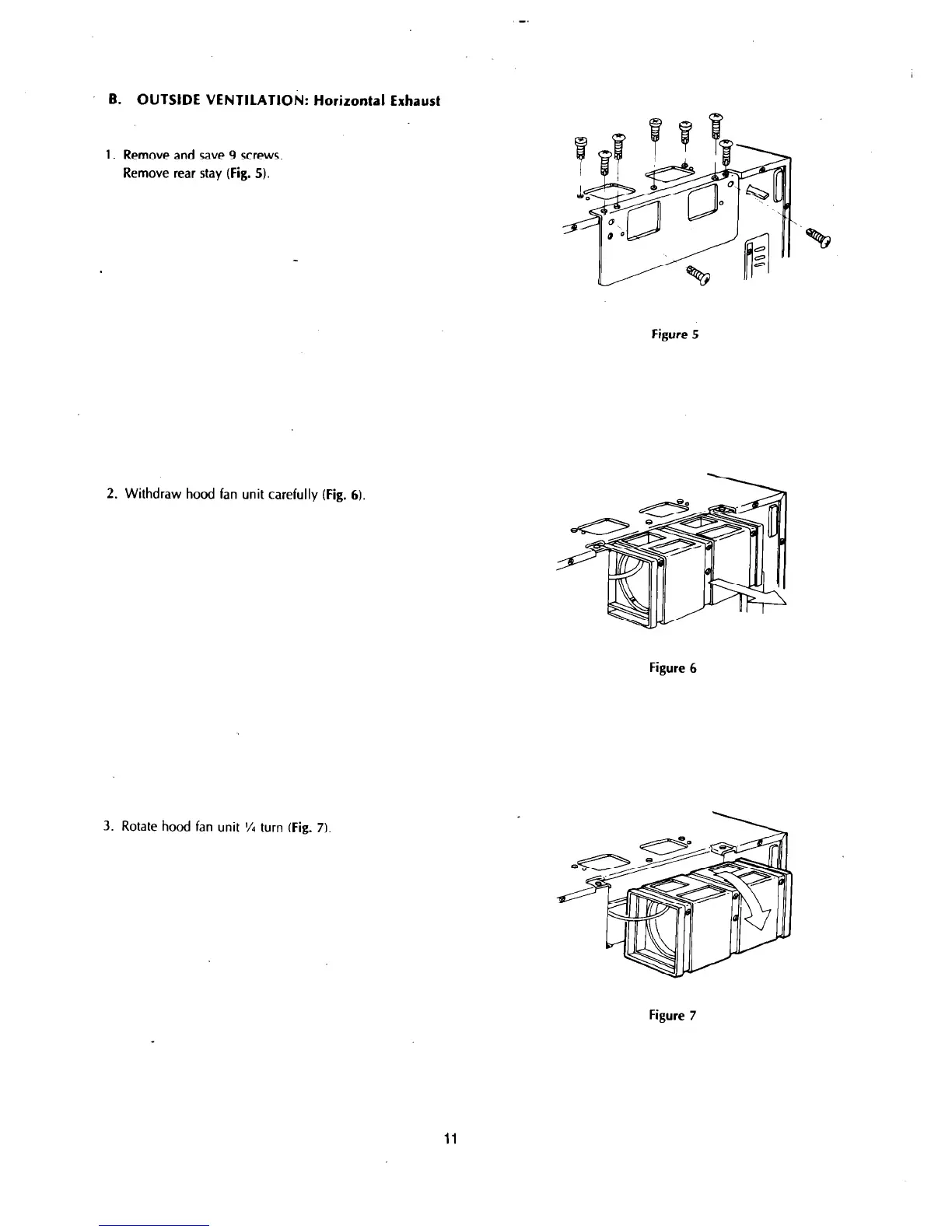

B. OUTSIDE VENTILATION: Horizontal Exhaust
1. Remove and save 9 screws.
Remove rear stay (Fig. 5).
2. Withdraw hood fan unit carefully (Fig. 6).
3. Rotate hood fan unit ‘/4 turn (Fig. 7)
Figure 5
Figure 6
Figure 7
11
